Raybestos

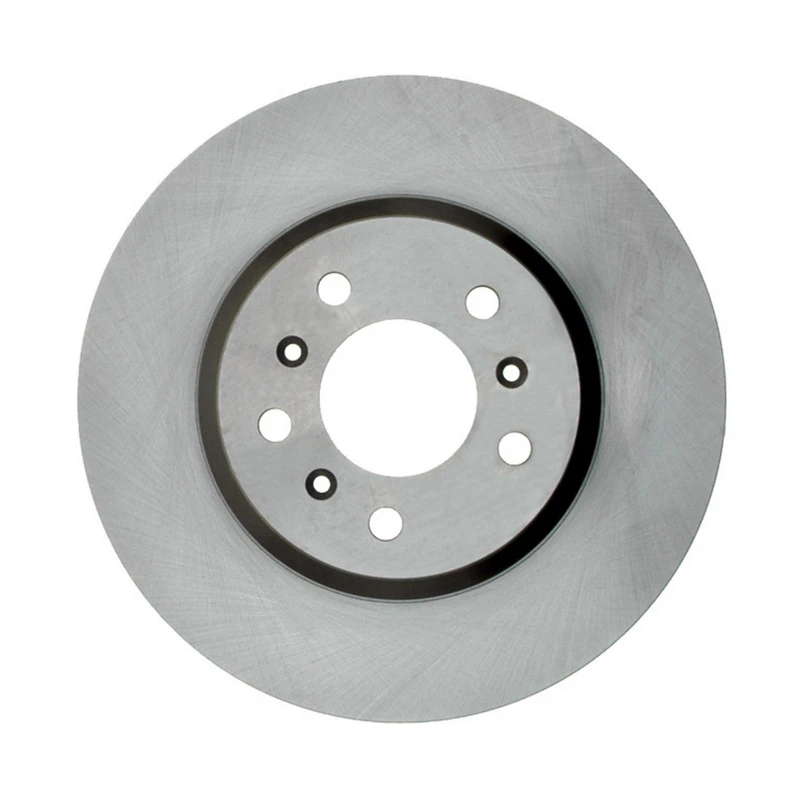

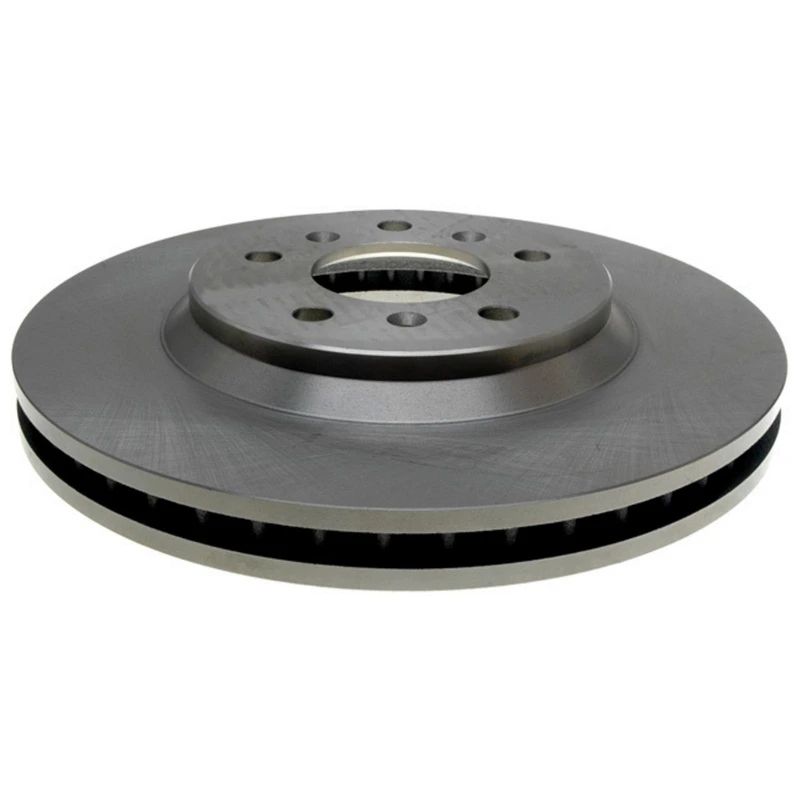

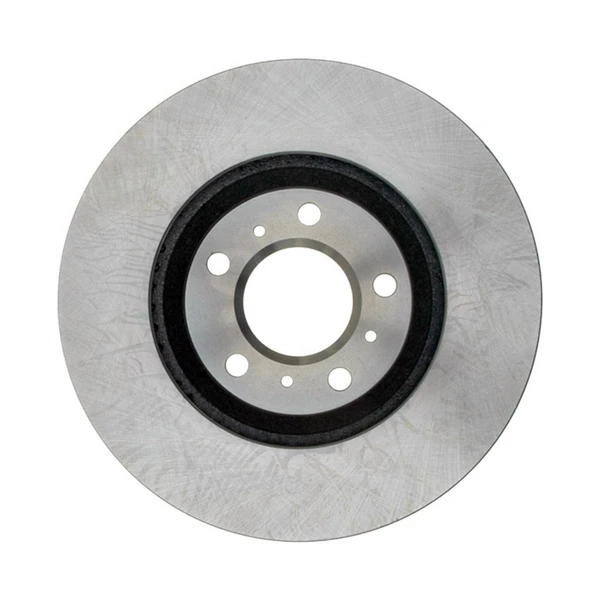

Raybestos 580403R Brake Rotor Front Side

Part # 580403R
Item # 1000XH63
$77.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.783
Center Hole Diameter (mm)
70.7
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.126
Discard Thickness (mm)
28.6
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.559
Mounting Bolt Hole Diameter (mm)
14.2
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
11.928
Outside Diameter (mm)
302.95
Overall Height (in)
2.045
Overall Height (mm)
51.95
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
580403R
09.B535.10
09.B535.11
120.62098
120.62098CRY
121.62098
126.62098CSL
126.62098CSR
126.62098SL
126.62098SR
126347
127.62098CL
127.62098CR
127.62098L
127.62098R
128.62098CL
128.62098CR
128.62098L
128.62098R
14-55126
1407-80286
145654
15251335
177-0967
18083321
20-55126
20879454
211765-C
226.62098SL
226.62098SR

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Buick
Chevrolet
2006 - 2008BuickLucerne
2009 - 2011BuickLucerne
2006 - 2007ChevroletMonte Carlo
2006 - 2011ChevroletImpala
2012 - 2013ChevroletImpala
2014 - 2016ChevroletImpala Limited
