Raybestos

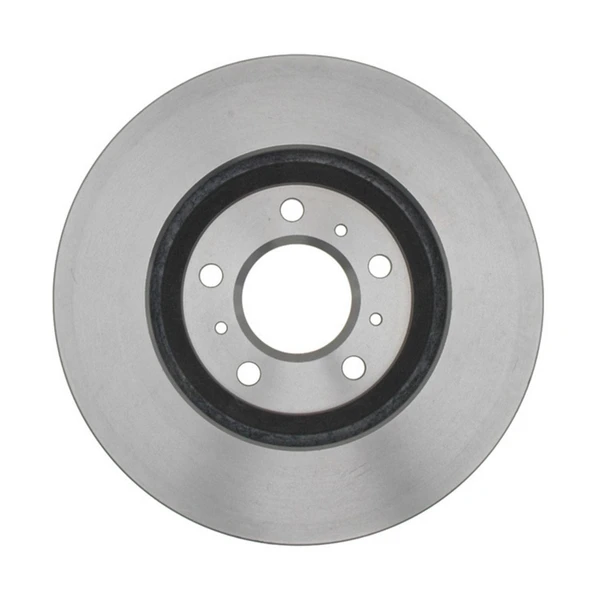

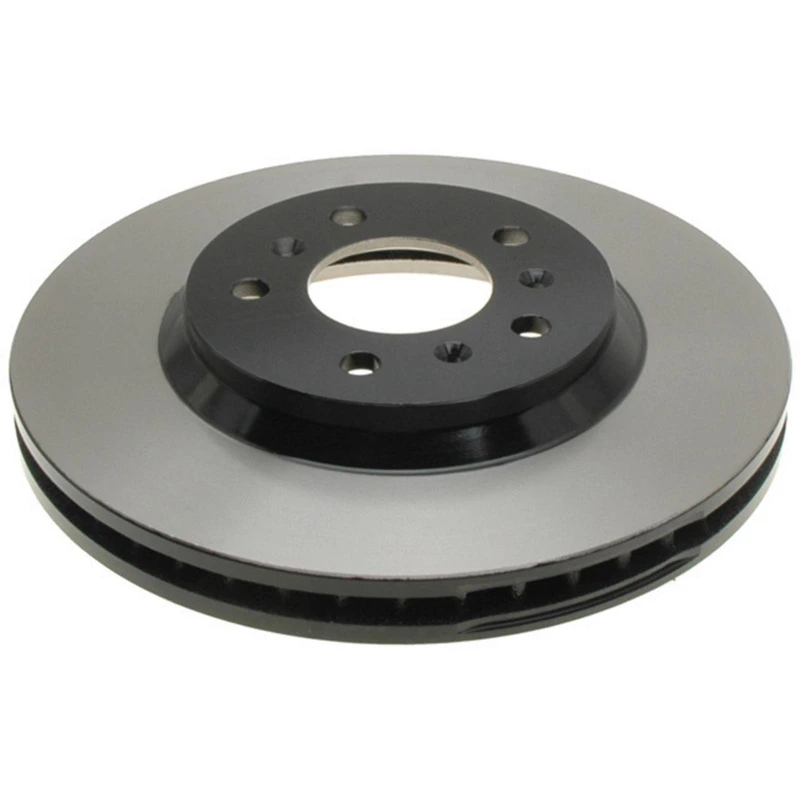

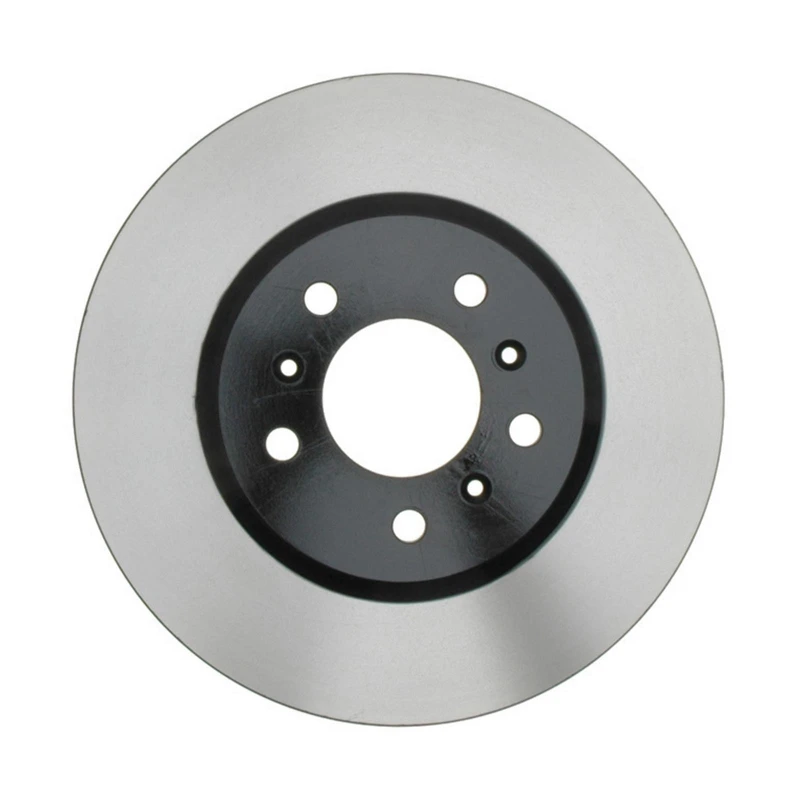

Raybestos 580403 Brake Rotor Front Side

Part # 580403
Item # 1000VPAD
$100.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.783
Center Hole Diameter (mm)
70.7
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.126
Discard Thickness (mm)
28.6
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.559
Mounting Bolt Hole Diameter (mm)
14.2
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
11.928
Outside Diameter (mm)
302.95
Overall Height (in)
2.045
Overall Height (mm)
51.95
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55126, 5512/6, 5-5126 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
23127613 - GENERAL MOTORS, OEM PART NUMBER, BUICK, GMC, CHEVROLET
55144, 5-5144 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, ULTRA BRAKE
140780286, 1407-80286 - AI CONVERTER, AUTOPAR, API
25955931 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12062098, 120.62098 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD126347 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
25862792 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
20879454 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
15251335 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
580403FZN - RAYBESTOS BRAKES, BRAKEBEST
580403PER - RAYBESTOS BRAKES, BRAKEBEST
G12542SD - CARQUEST, ADVANCE AUTO PARTS
BR55126 - DURAGO, DURA CORP
12662098CSR, 126.62098CSR - STOPTECH, CENTRIC PARTS
580403P - RAYBESTOS BRAKES, BRAKEBEST
12062098CRY, 120.62098CRY - STOPTECH, CENTRIC PARTS
22762098R, 227.62098R - STOPTECH, CENTRIC PARTS
22762098L, 227.62098L - STOPTECH, CENTRIC PARTS
AX55126 - AUTO EXTRA, AUTOXTRA
580403R - RAYBESTOS BRAKES, BRAKEBEST
22662098SL, 226.62098SL - STOPTECH, CENTRIC PARTS
12762098CR, 127.62098CR - STOPTECH, CENTRIC PARTS
12762098CL, 127.62098CL - STOPTECH, CENTRIC PARTS
22662098SR, 226.62098SR - STOPTECH, CENTRIC PARTS
BR5512602, BR55126-02 - DURAGO, DURA CORP
145654 - US AUTO FORCE, BENDIX
12662098CSL, 126.62098CSL - STOPTECH, CENTRIC PARTS
580403 - RAYBESTOS BRAKES, BRAKEBEST
55126DL - DURALAST, AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Buick
Chevrolet
2014 - 2016ChevroletImpala Limited
2006 - 2008BuickLucerne
2012 - 2013ChevroletImpala
2009 - 2011BuickLucerne
2006 - 2011ChevroletImpala
2006 - 2007ChevroletMonte Carlo
