Click to enlarge
Raybestos

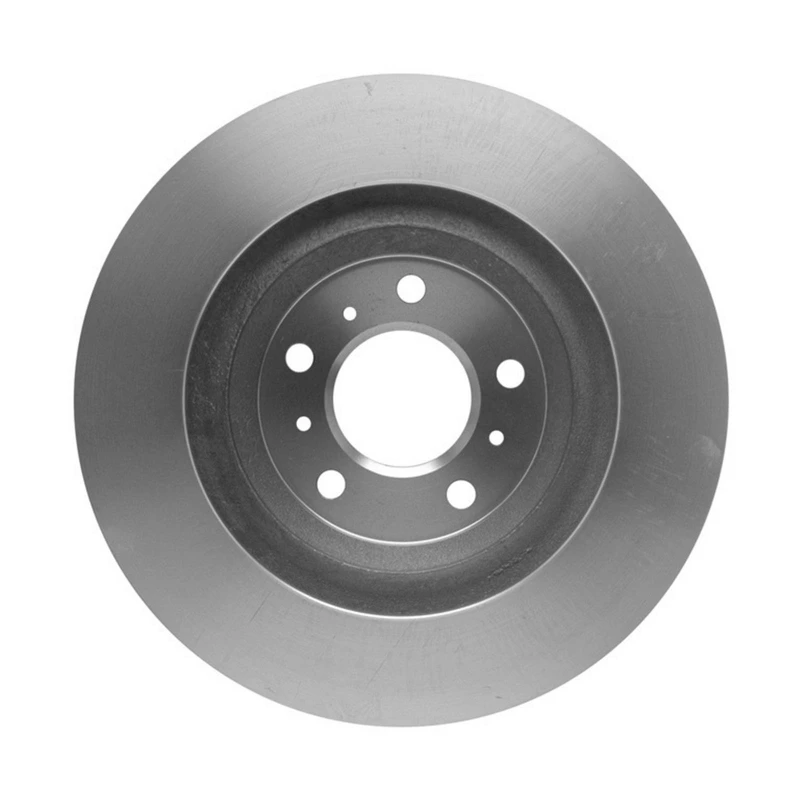

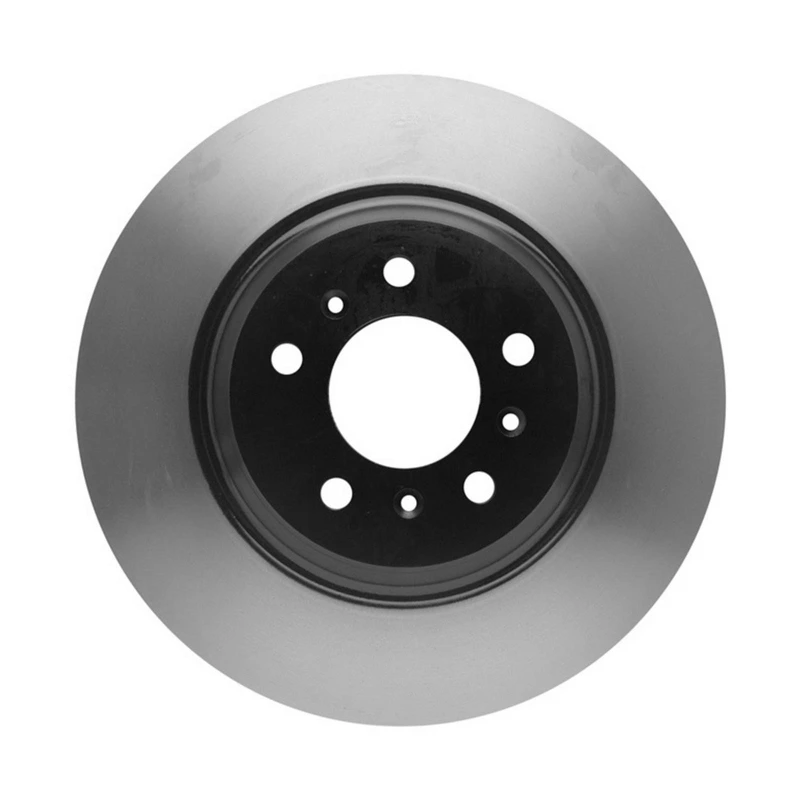

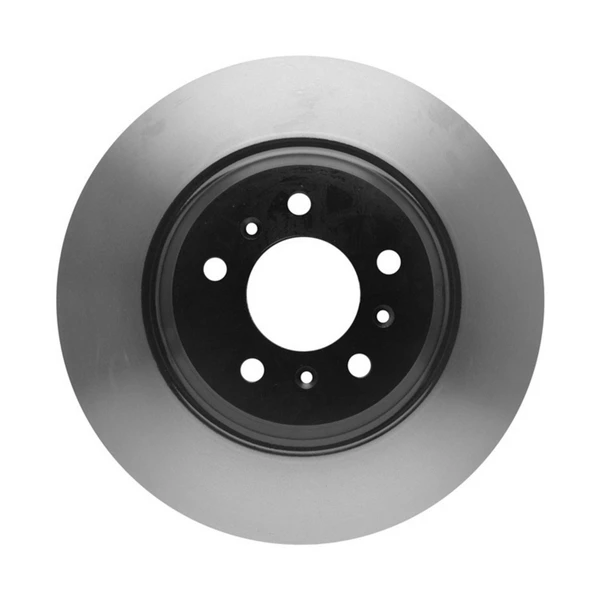

Raybestos 580387 Brake Rotor Front Side

Part # 580387
Item # 1000VPVH
$118.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.783
Center Hole Diameter (mm)
70.7
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.126
Discard Thickness (mm)
28.6
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.528
Mounting Bolt Hole Circle Diameter (mm)
115
Mounting Bolt Hole Diameter (in)
0.557
Mounting Bolt Hole Diameter (mm)
14.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.187
Nominal Thickness (mm)
30.15
Outside Diameter (in)
12.714
Outside Diameter (mm)
322.95
Overall Height (in)
2.05
Overall Height (mm)
52.05
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
23127614 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, BUICK, CHEVROLET
55124, 5512/4, 5-5124, 55-124 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
41217, 41-217 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
55142, 5-5142 - NEWTEK AUTOMOTIVE USA, AIMCO, ULTRA BRAKE
12062099, 120.62099 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
2055124, 20-55124 - UAP, PROMAX, GEOTECH
AX900386 - AUTO EXTRA, AUTOXTRA
PRT5738 - BENDIX PREMIUM, BENDIX
YH145738P - CARQUEST, ADVANCE AUTO PARTS
BR55124 - DURAGO, DURA CORP
12662099SR, 126.62099SR - STOPTECH, CENTRIC PARTS
12662099SL, 126.62099SL - STOPTECH, CENTRIC PARTS
22762099L, 227.62099L - STOPTECH, CENTRIC PARTS
900386 - DURAGO, PARTS MASTER
12662099CSR, 126.62099CSR - STOPTECH, CENTRIC PARTS
25803423 - GENERAL MOTORS, OEM PART NUMBER
25980048 - GENERAL MOTORS, OEM PART NUMBER
12862099CL, 128.62099CL - STOPTECH, CENTRIC PARTS
22762099R, 227.62099R - STOPTECH, CENTRIC PARTS
580387FZN - RAYBESTOS BRAKES, BRAKEBEST
15793340 - GENERAL MOTORS, OEM PART NUMBER
12862099CR, 128.62099CR - STOPTECH, CENTRIC PARTS
20880099 - GENERAL MOTORS, OEM PART NUMBER
12862099L, 128.62099L - STOPTECH, CENTRIC PARTS
32062099, 320.62099 - STOPTECH, CENTRIC PARTS
BR90038602, BR900386-02 - DURAGO, DURA CORP
12662099CSL, 126.62099CSL - STOPTECH, CENTRIC PARTS
12862099R, 128.62099R - STOPTECH, CENTRIC PARTS
6620675 - WINHERE, PERFECT STOP
12162099, 121.62099 - CENTRIC PARTS, CTEK

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Buick
Cadillac
Chevrolet
2014 - 2016ChevroletImpala Limited
2006 - 2011CadillacDTS
2006 - 2011BuickLucerne
2012 - 2013ChevroletImpala
2008 - 2009BuickAllure
2008 - 2009BuickLaCrosse
