Raybestos

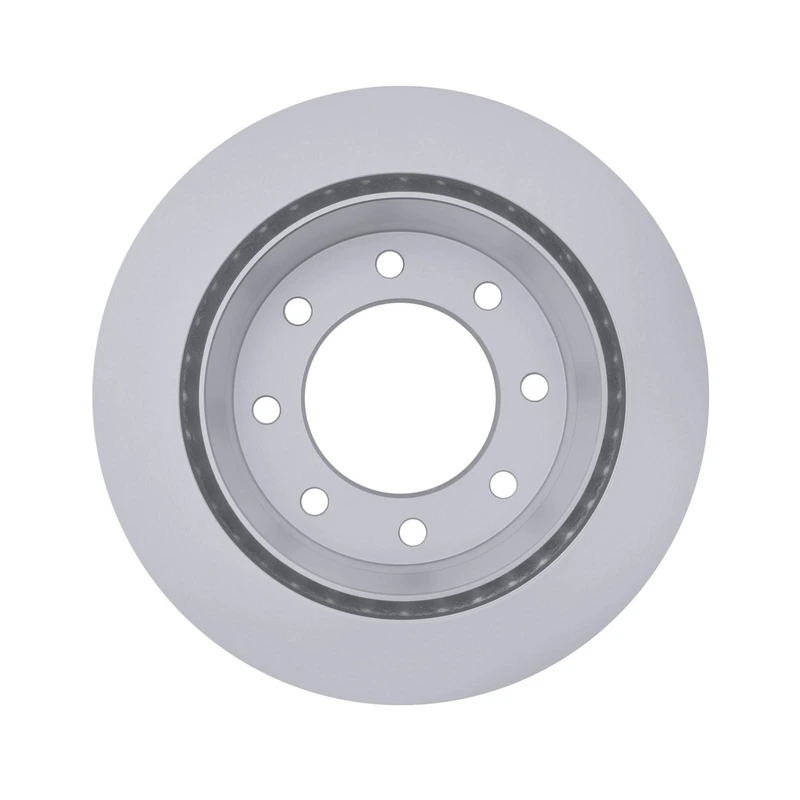

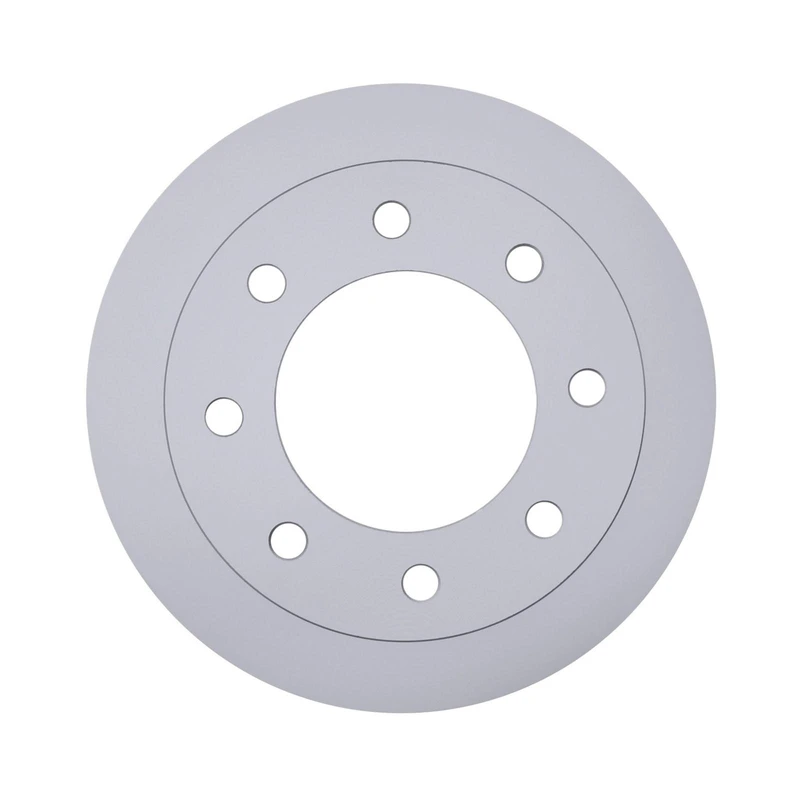

Raybestos 580380FZN Brake Rotor Rear Side

Part # 580380FZN
Item # 1000VN6D
$97.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.083
Discard Thickness (mm)
27.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
6.5
Mounting Bolt Hole Circle Diameter (mm)
165.1
Mounting Bolt Hole Diameter (in)
0.636
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
8
Nominal Thickness (in)
1.147
Nominal Thickness (mm)
29.15
Outside Diameter (in)
12.989
Outside Diameter (mm)
329.9
Overall Height (in)
3.416
Overall Height (mm)
86.75
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
8
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55120, 5-5120, 55-120 - EUROROTOR, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, ULTRA BRAKE
15127537 - GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
BR55120 - DURAGO, DURA CORP, BRAKE HEADQUARTERS
580380R - RAYBESTOS BRAKES, BRAKEBEST
580380 - RAYBESTOS BRAKES, BRAKEBEST
BR900562 - DURAGO, DURA CORP
900562 - DURAGO, PARTS MASTER
BD126536 - MONROE BRAKES, WAGNER BRAKE
1770928, 177-0928 - DELCOREMY, ACDELCO
PRT5875 - BENDIX PREMIUM, BENDIX
580380FZN - RAYBESTOS BRAKES, BRAKEBEST
6621054 - WINHERE, PERFECT STOP
BR90056202, BR900562-02 - DURAGO, DURA CORP
BD126536E - WAGNER BRAKE
580380RGS - BRAKEBEST
326286 - CASTING NUMBERS
PS900562 - WABCO ARCHIVED
1455120, 14-55120 - PROMAX
AX900562 - AUTOXTRA

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (27)vehicles
All
Chevrolet
GMC
2009 - 2009GMCSavana 3500
2011 - 2012GMCSavana 3500
2005 - 2005ChevroletExpress 3500
2007 - 2007GMCSavana 3500
2005 - 2006GMCSavana 3500
2010 - 2010GMCSavana 3500
2006 - 2010ChevroletExpress 3500
2008 - 2009ChevroletExpress 2500
2007 - 2007GMCSavana 3500
2017 - 2024ChevroletExpress 2500
2012 - 2012ChevroletExpress 3500
2020 - 2024GMCSavana 2500
2011 - 2011ChevroletExpress 3500
2011 - 2016ChevroletExpress 2500
2006 - 2010ChevroletExpress 3500
2009 - 2009GMCSavana 3500
2008 - 2009GMCSavana 2500
2018 - 2024GMCSavana 3500
2007 - 2007GMCSavana 3500
2011 - 2019GMCSavana 2500
