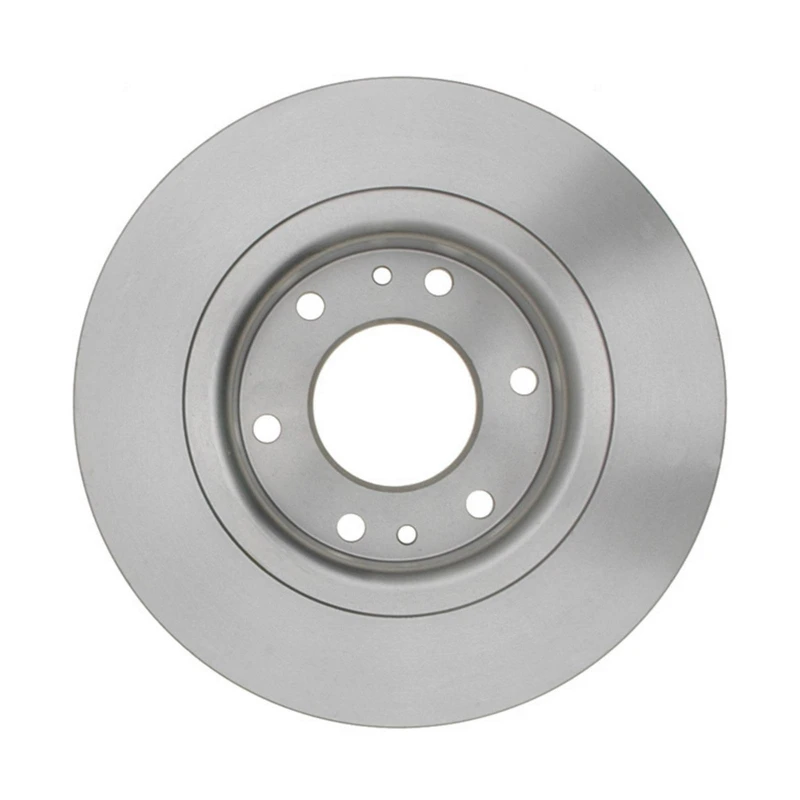

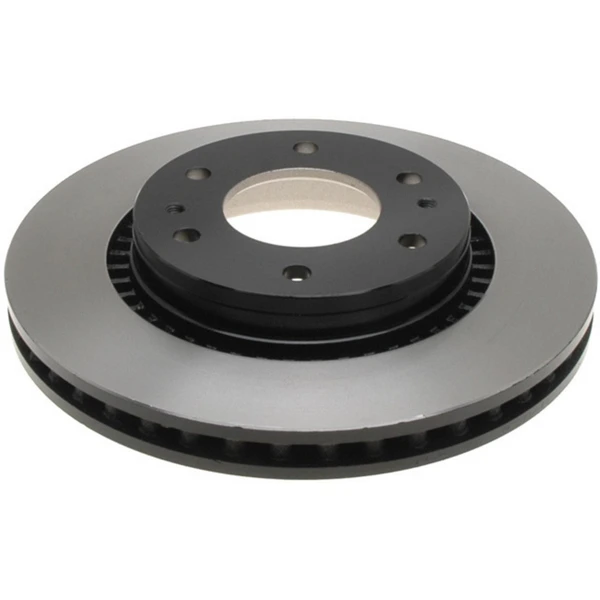

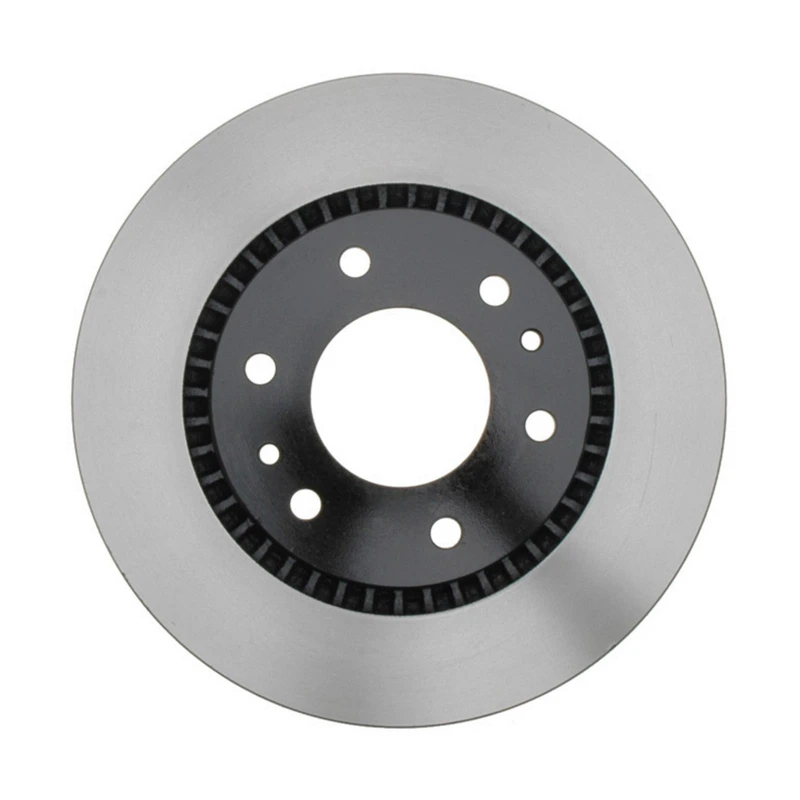

Raybestos 580359 Brake Rotor Front Side
Part # 580359
Item # 1000VHY1
$96.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 3.12
- Center Hole Diameter (mm)
- 79.25
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 1.083
- Discard Thickness (mm)
- 27.5
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 5
- Mounting Bolt Hole Circle Diameter (mm)
- 127
- Mounting Bolt Hole Diameter (in)
- 0.516
- Mounting Bolt Hole Diameter (mm)
- 13.1
- Mounting Bolt Hole Quantity
- 6
- Nominal Thickness (in)
- 1.142
- Nominal Thickness (mm)
- 29
- Outside Diameter (in)
- 11.89
- Outside Diameter (mm)
- 302
- Overall Height (in)
- 2.14
- Overall Height (mm)
- 54.35
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 6
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55112, 5-5112 - DURALAST, EUROROTOR, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS, ULTRA BRAKE
25826102 - GENERAL MOTORS, OEM PART NUMBER, BUICK, SAAB, GMC, CHEVROLET
21998532 - GENERAL MOTORS, OEM PART NUMBER, SAAB, GMC
12066063, 120.66063 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
09B56310, 09 B563 10, 09.B563.10 - BREMBO, IMC
YH145602 - CARQUEST, ADVANCE AUTO PARTS
BR5511202, BR55112-02 - DURAGO, DURA CORP
BD126446 - MONROE BRAKES, WAGNER BRAKE
12866063L, 128.66063L - STOPTECH, CENTRIC PARTS
6620516 - WINHERE, PERFECT STOP
32066063, 320.66063 - STOPTECH, CENTRIC PARTS
12666063CSL, 126.66063CSL - STOPTECH, CENTRIC PARTS
580359FZN - RAYBESTOS BRAKES, BRAKEBEST
145602, 145-602 - BENDIX, ADVANCE AUTO PARTS
580359PER - RAYBESTOS BRAKES, BRAKEBEST
580359 - RAYBESTOS BRAKES, BRAKEBEST
12866063R, 128.66063R - STOPTECH, CENTRIC PARTS
12666063CSR, 126.66063CSR - STOPTECH, CENTRIC PARTS
55112DL - DURALAST, AUTOZONE
12666063SR, 126.66063SR - STOPTECH, CENTRIC PARTS
PRT5602 - BENDIX PREMIUM, BENDIX
BR55112 - DURAGO, DURA CORP
12666063SL, 126.66063SL - STOPTECH, CENTRIC PARTS
12766063L, 127.66063L - STOPTECH, CENTRIC PARTS
AX55112 - AUTO EXTRA, AUTOXTRA
12766063R, 127.66063R - STOPTECH, CENTRIC PARTS
25010655 - BOSCH, BRAKEBEST
12166063, 121.66063 - CENTRIC PARTS, CTEK
580359R - RAYBESTOS BRAKES, BRAKEBEST
580359RGS - BRAKEBEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Buick
Chevrolet
GMC
Isuzu
| 2006 - 2009 | Chevrolet | Trailblazer |
| 2006 - 2007 | Buick | Rainier |
| 2006 - 2009 | GMC | Envoy |
| 2006 - 2008 | Isuzu | Ascender |
