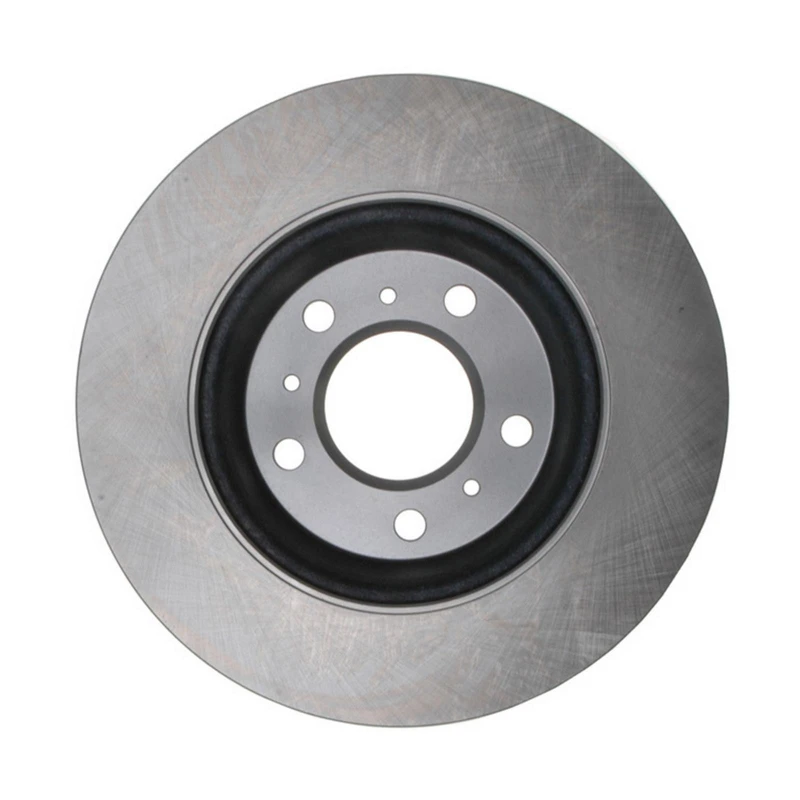

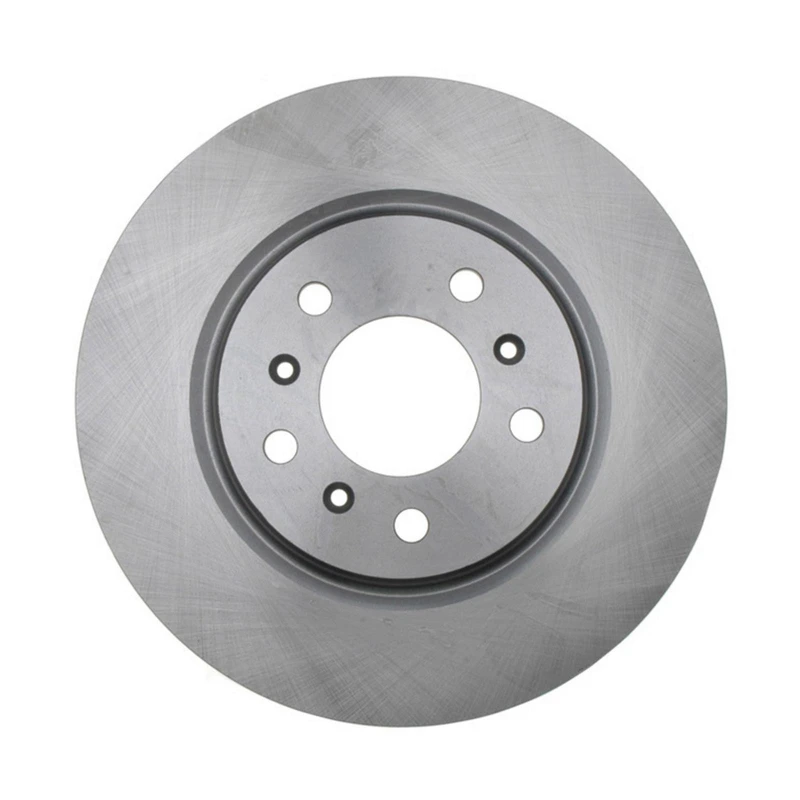

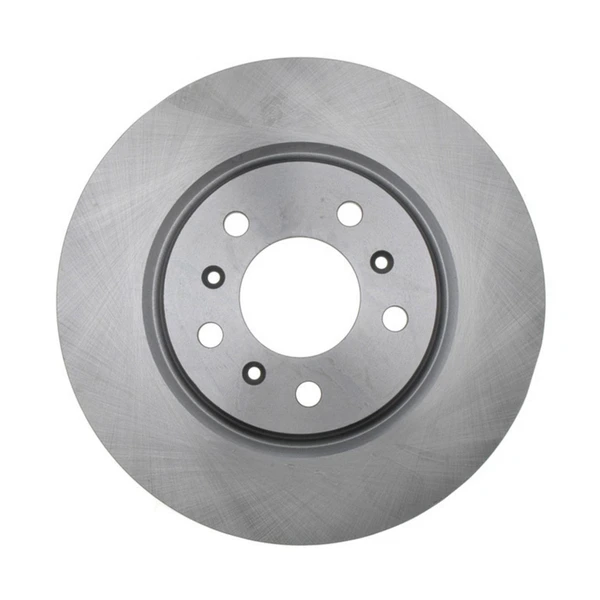

Raybestos 580298R Brake Rotor Front Side
Part # 580298R
Item # 1000S1UG
$81.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.783
- Center Hole Diameter (mm)
- 70.7
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 1.209
- Discard Thickness (mm)
- 30.7
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.528
- Mounting Bolt Hole Circle Diameter (mm)
- 115
- Mounting Bolt Hole Diameter (in)
- 0.557
- Mounting Bolt Hole Diameter (mm)
- 14.15
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.27
- Nominal Thickness (mm)
- 32.25
- Outside Diameter (in)
- 11.695
- Outside Diameter (mm)
- 297.05
- Overall Height (in)
- 2.05
- Overall Height (mm)
- 52.05
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55087, 5-5087, 5.5087 - DURALAST, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, CASTING NUMBERS, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
88964169 - GENERAL MOTORS, OEM PART NUMBER, PONTIAC, SATURN, BUICK, CHEVROLET
55107, 5-5107, 55-107 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
41117, 41-117 - CANADIAN TIRE, AUTOZONE, QUALIS
12062073, 120.62073 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BR55107 - DURAGO, DURA CORP
1770919, 177-0919 - DELCOREMY, ACDELCO
12662073CSR, 126.62073CSR - STOPTECH, CENTRIC PARTS
12662073CSL, 126.62073CSL - STOPTECH, CENTRIC PARTS
12562073, 125.62073 - STOPTECH, CENTRIC PARTS
12862073R, 128.62073R - STOPTECH, CENTRIC PARTS
12662073SR, 126.62073SR - STOPTECH, CENTRIC PARTS
580298, 5-80298 - RAYBESTOS BRAKES, BRAKEBEST
12662073SL, 126.62073SL - STOPTECH, CENTRIC PARTS
12862073L, 128.62073L - STOPTECH, CENTRIC PARTS
BR5508702, BR55087-02 - DURAGO, DURA CORP
12162073, 121.62073 - CENTRIC PARTS, CTEK
12762073CR, 127.62073CR - STOPTECH, CENTRIC PARTS
25010716 - BOSCH, BRAKEBEST
12562073CRY, 125.62073CRY - STOPTECH, CENTRIC PARTS
12862073CR, 128.62073CR - STOPTECH, CENTRIC PARTS
41117DL - DURALAST, AUTOZONE
12862073CL, 128.62073CL - STOPTECH, CENTRIC PARTS
12762073CL, 127.62073CL - STOPTECH, CENTRIC PARTS
BR55087 - DURAGO, DURA CORP
32062073, 320.62073 - STOPTECH, CENTRIC PARTS
22762073R, 227.62073R - STOPTECH, CENTRIC PARTS
12762073L, 127.62073L - STOPTECH, CENTRIC PARTS
6620643 - WINHERE, PERFECT STOP
580298R - RAYBESTOS BRAKES, BRAKEBEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Buick
Chevrolet
Pontiac
Saturn
| 2005 - 2005 | Buick | Terraza |
| 2005 - 2005 | Chevrolet | Uplander |
| 2005 - 2005 | Pontiac | Montana |
| 2005 - 2005 | Saturn | Relay |
