Raybestos

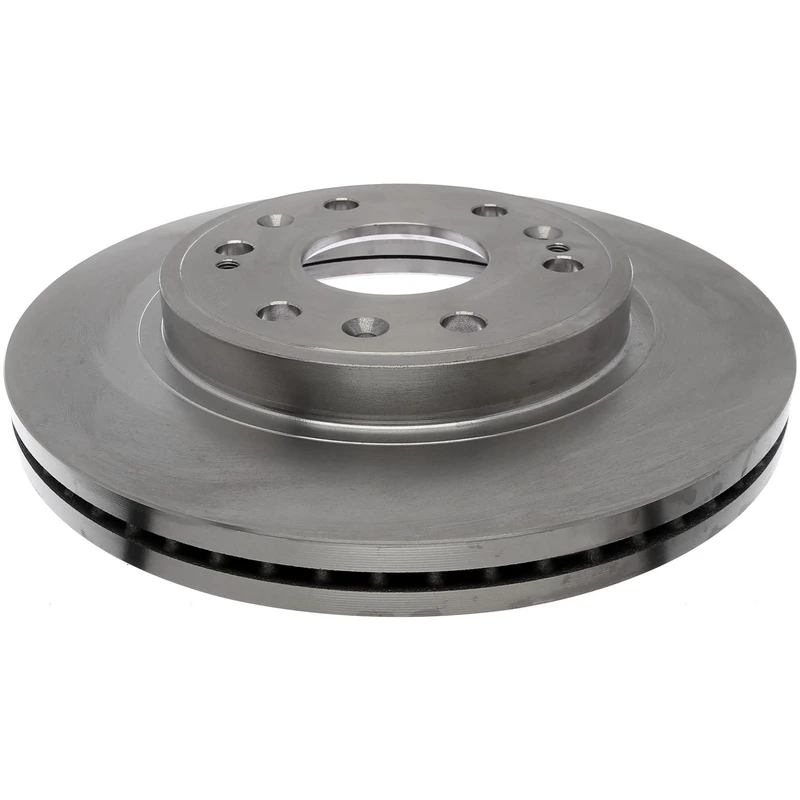

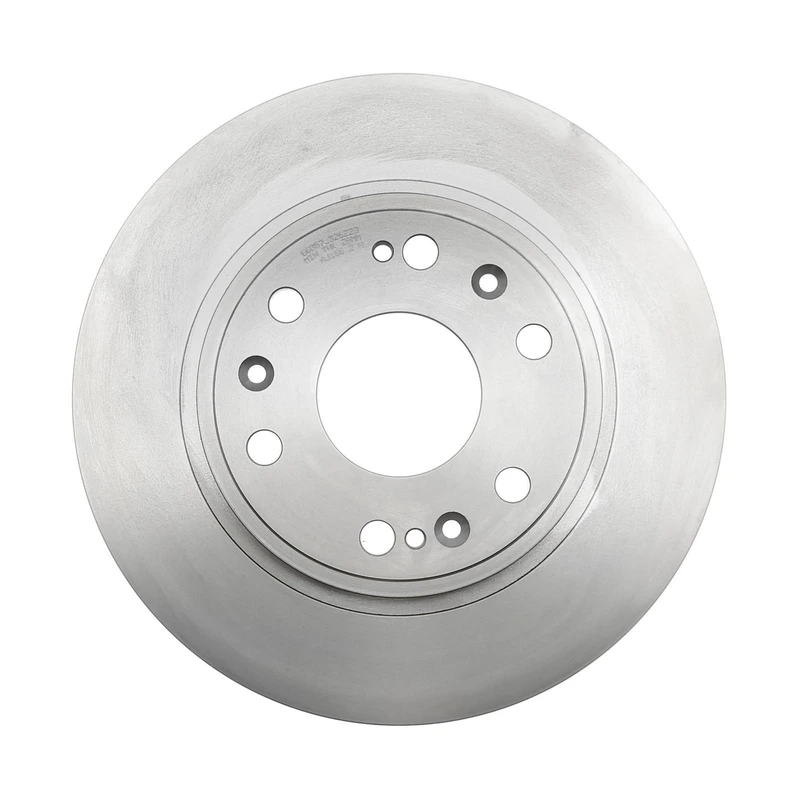

Raybestos 580279R Brake Rotor Front Side

Part # 580279R
Item # 1000S3PZ
$81.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Bearings Included
No
Center Hole Diameter (in)
3.09
Center Hole Diameter (mm)
78.5
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.102
Discard Thickness (mm)
28
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.5
Mounting Bolt Hole Circle Diameter (mm)
139.7
Mounting Bolt Hole Diameter (in)
0.625
Mounting Bolt Hole Diameter (mm)
15.9
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
12.99
Outside Diameter (mm)
329.95
Overall Height (in)
2.19
Overall Height (mm)
55.65
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55097, 5-5097, 5.5097 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
22950036 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
23144340 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
22818355 - GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
12166057, 121.66057 - AUTOZONE, CENTRIC PARTS, CTEK
145582, 14-5582 - US AUTO FORCE, BENDIX, PROMAX
BD126358 - MONROE BRAKES, WAGNER BRAKE, ADVANCE AUTO PARTS
25819670 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12066057, 120.66057 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
88963556 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
YH145582 - CARQUEST, ADVANCE AUTO PARTS
BR55097 - DURAGO, DURA CORP
G12518SD - CARQUEST, ADVANCE AUTO PARTS
22766057R, 227.66057R - STOPTECH, CENTRIC PARTS
YH145582P - CARQUEST, ADVANCE AUTO PARTS
12666057CSL, 126.66057CSL - STOPTECH, CENTRIC PARTS
22766057L, 227.66057L - STOPTECH, CENTRIC PARTS
41252, 41-252 - AUTOZONE, QUALIS
12666057SR, 126.66057SR - STOPTECH, CENTRIC PARTS
12866057CL, 128.66057CL - STOPTECH, CENTRIC PARTS
12766057CL, 127.66057CL - STOPTECH, CENTRIC PARTS
YH145582C - CARQUEST, ADVANCE AUTO PARTS
12666057SL, 126.66057SL - STOPTECH, CENTRIC PARTS
12566057, 125.66057 - STOPTECH, CENTRIC PARTS
12866057CR, 128.66057CR - STOPTECH, CENTRIC PARTS
12766057CR, 127.66057CR - STOPTECH, CENTRIC PARTS
12666057CSR, 126.66057CSR - STOPTECH, CENTRIC PARTS
32066057, 320.66057 - STOPTECH, CENTRIC PARTS
12866057R, 128.66057R - STOPTECH, CENTRIC PARTS
2055097, 20-55097 - PROMAX, GEOTECH

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (49)vehicles
All
Cadillac
Chevrolet
GMC
2010 - 2010GMCSierra 1500
2009 - 2014GMCSavana 1500
2009 - 2014ChevroletExpress 1500
2010 - 2010GMCSierra 1500
2014 - 2018ChevroletSilverado 1500
2005 - 2006GMCSierra 1500
2007 - 2007GMCSierra 1500 Classic
2010 - 2010GMCSierra 1500
2007 - 2007GMCSierra 1500 Classic
2009 - 2009GMCYukon
2007 - 2007GMCSierra 1500 Classic
2007 - 2007ChevroletSilverado 1500 Classic
2007 - 2013CadillacEscalade EXT
2009 - 2018ChevroletTahoe
2020 - 2020ChevroletSuburban
2007 - 2007GMCSierra 1500 Classic
2007 - 2007GMCSierra 1500 Classic
2007 - 2014ChevroletSuburban 1500
2010 - 2018GMCYukon
2007 - 2007ChevroletSilverado 1500 Classic
