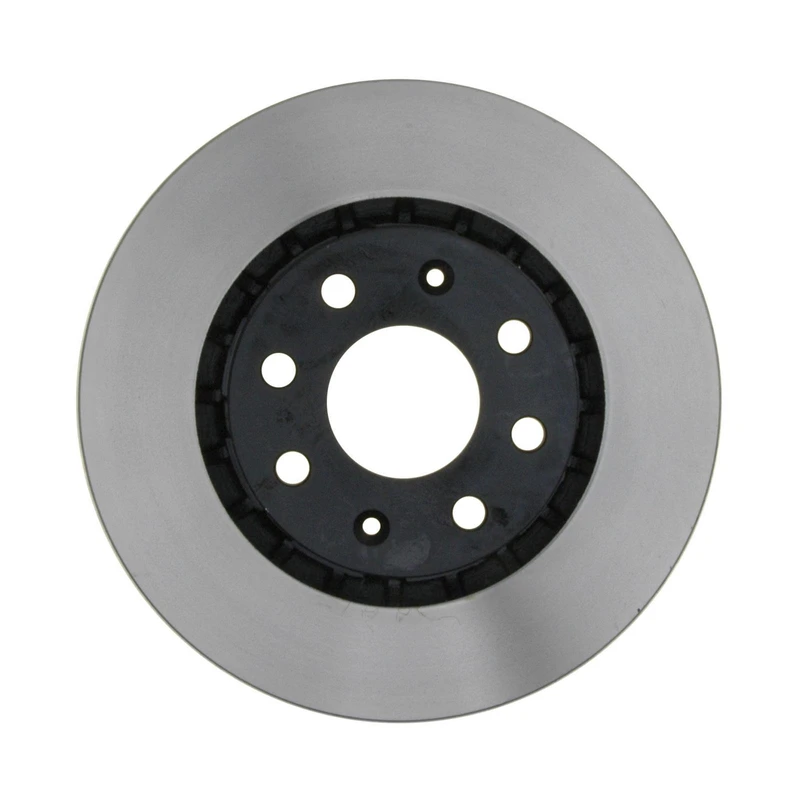

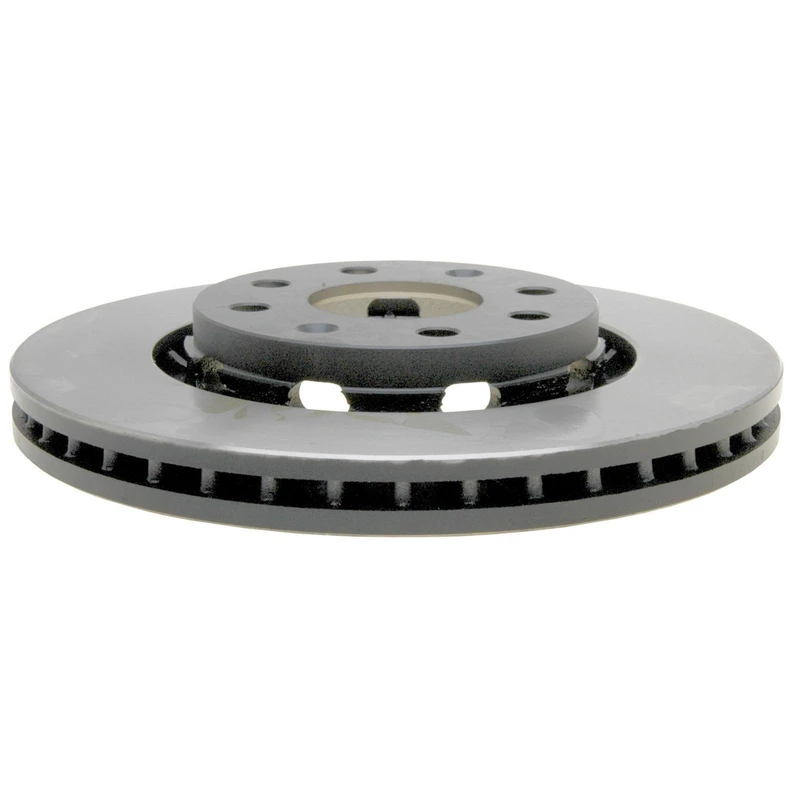

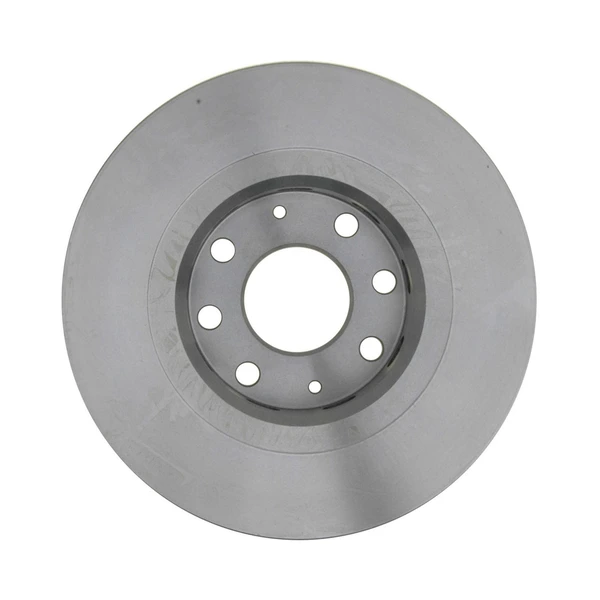

Raybestos 580212 Brake Rotor Front Side
Part # 580212
Item # 1000VGET
$70.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.327
- Center Hole Diameter (mm)
- 59.1
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.866
- Discard Thickness (mm)
- 22
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 3.93
- Mounting Bolt Hole Circle Diameter (mm)
- 99.8
- Mounting Bolt Hole Diameter (in)
- 0.495
- Mounting Bolt Hole Diameter (mm)
- 12.55
- Mounting Bolt Hole Quantity
- 4
- Nominal Thickness (in)
- 0.942
- Nominal Thickness (mm)
- 23.95
- Outside Diameter (in)
- 10.08
- Outside Diameter (mm)
- 256.05
- Overall Height (in)
- 1.616
- Overall Height (mm)
- 41.05
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 4
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55099, 5-5099, 5.5099 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
96471275 - GENERAL MOTORS, OEM PART NUMBER, PONTIAC, CHEVROLET
41127, 4-1127, 41-127 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
12049008, 120.49008 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
96534660 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
580212FZN - RAYBESTOS BRAKES, BRAKEBEST
12149008, 121.49008 - CENTRIC PARTS, CTEK
BR900314 - DURAGO, DURA CORP
17010294 - BOSCH, BRAKEBEST
55182, 5-5182 - EUROROTOR, ULTRA BRAKE
YH145662P - CARQUEST, ADVANCE AUTO PARTS
25011432 - BOSCH, BRAKEBEST
2055099, 20-55099 - PROMAX, GEOTECH
22749008R, 227.49008R - STOPTECH, CENTRIC PARTS
YH145662 - CARQUEST, ADVANCE AUTO PARTS
BD126134 - MONROE BRAKES, WAGNER BRAKE
5531184Z00 - SUZUKI, OEM PART NUMBER
22749008L, 227.49008L - STOPTECH, CENTRIC PARTS
580212, 580-212 - RAYBESTOS BRAKES, BRAKEBEST
YH145662C - CARQUEST, ADVANCE AUTO PARTS
BR55099 - DURAGO, DURA CORP
32049008, 320.49008 - STOPTECH, CENTRIC PARTS
6620644 - WINHERE, PERFECT STOP
PRT5662 - BENDIX PREMIUM, BENDIX
BR90031402, BR900314-02 - DURAGO, DURA CORP
580212R - RAYBESTOS BRAKES, BRAKEBEST
AX900314 - AUTO EXTRA, AUTOXTRA
211610C, 211610-C - CASTING NUMBERS
900314 - DURAGO
32149008, 321.49008 - CENTRIC PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (11)vehicles
All
Chevrolet
Pontiac
Suzuki
| 2005 - 2007 | Pontiac | Wave5 |
| 2007 - 2012 | Suzuki | Swift |
| 2006 - 2011 | Chevrolet | Aveo5 |
| 2009 - 2010 | Pontiac | G3 |
| 2014 - 2016 | Chevrolet | Spark EV |
| 2013 - 2015 | Chevrolet | Spark |
| 2009 - 2009 | Pontiac | G3 Wave |
| 2005 - 2008 | Pontiac | Wave |
| 2004 - 2018 | Chevrolet | Aveo |
| 2013 - 2015 | Suzuki | Swift |
| 2004 - 2010 | Suzuki | Swift+ |
