Raybestos

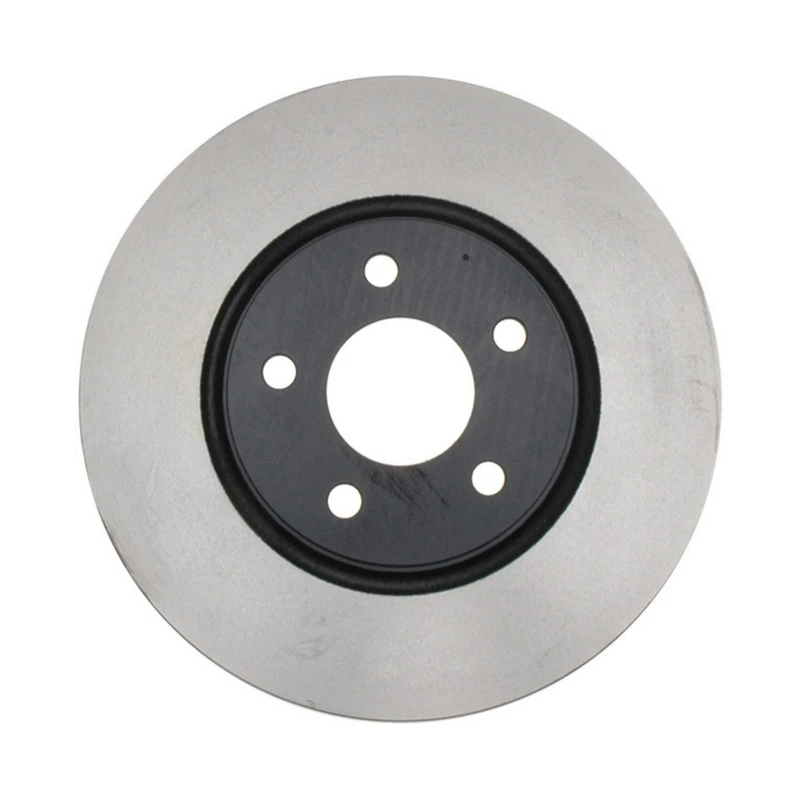

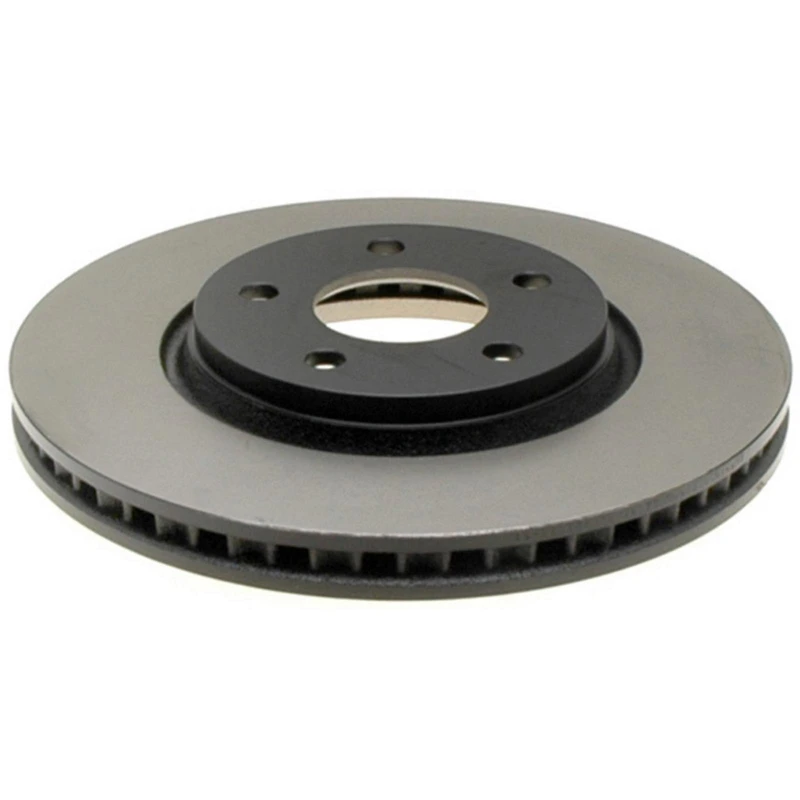

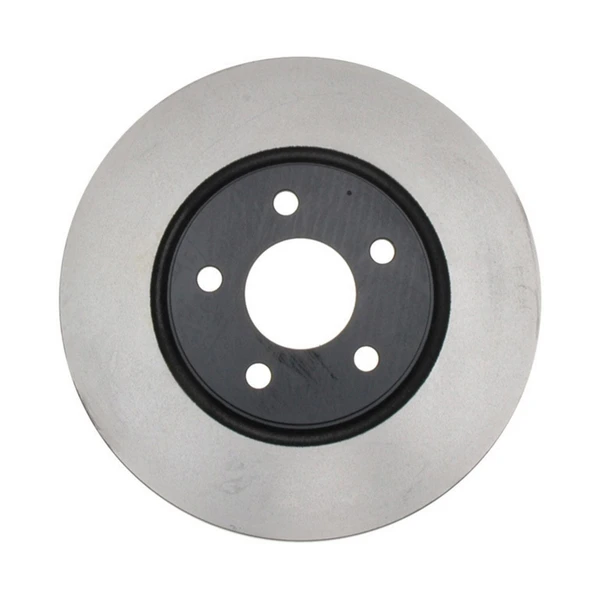

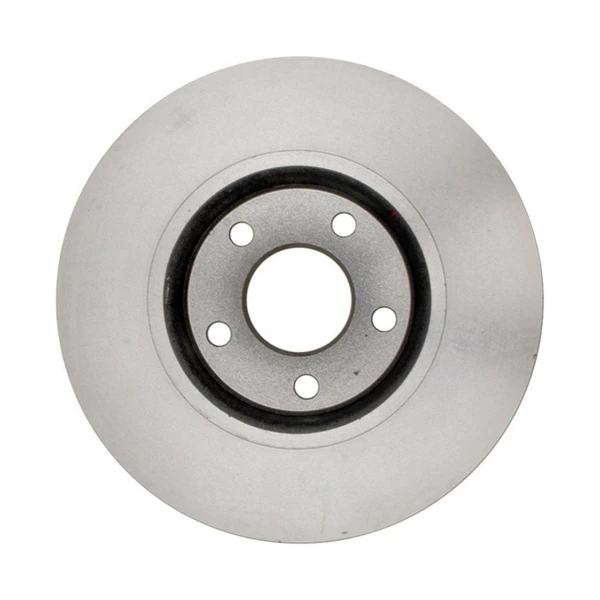

Raybestos 580184 Brake Rotor Front Side

Part # 580184
Item # 1000VGSR
$81.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.59
Center Hole Diameter (mm)
65.8
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.906
Discard Thickness (mm)
23
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.331
Mounting Bolt Hole Circle Diameter (mm)
110
Mounting Bolt Hole Diameter (in)
0.546
Mounting Bolt Hole Diameter (mm)
13.85
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.025
Nominal Thickness (mm)
26.05
Outside Diameter (in)
11.655
Outside Diameter (mm)
296.05
Overall Height (in)
1.69
Overall Height (mm)
42.95
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55093, 5-5093, 5.5093 - CARQUEST, DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
22705375 - GENERAL MOTORS, OEM PART NUMBER, PONTIAC, SATURN, CHEVROLET
19303825 - GENERAL MOTORS, OEM PART NUMBER, PONTIAC, SATURN, CHEVROLET
25872802 - GENERAL MOTORS, OEM PART NUMBER, SATURN, CHEVROLET
25797350 - GENERAL MOTORS, OEM PART NUMBER, SATURN, CHEVROLET
12062078, 120.62078 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
145528 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS
2055093, 20-55093 - UAP, PROMAX, GEOTECH
140726851, 1407-26851 - AI CONVERTER, AUTOPAR, API
BD126138 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
20906303 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
15856665 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
22762078L, 227.62078L - STOPTECH, CENTRIC PARTS
YH145661C - CARQUEST, ADVANCE AUTO PARTS
580184R - RAYBESTOS BRAKES, BRAKEBEST
32062078, 320.62078 - STOPTECH, CENTRIC PARTS
12662078CSL, 126.62078CSL - STOPTECH, CENTRIC PARTS
12662078SR, 126.62078SR - STOPTECH, CENTRIC PARTS
12662078SL, 126.62078SL - STOPTECH, CENTRIC PARTS
BR55093 - DURAGO, DURA CORP
22762078R, 227.62078R - STOPTECH, CENTRIC PARTS
12162078, 121.62078 - CENTRIC PARTS, CTEK
YH145528C - CARQUEST, ADVANCE AUTO PARTS
09B51810, 09 B518 10, 09.B518.10 - BREMBO, IMC
12862078CR, 128.62078CR - STOPTECH, CENTRIC PARTS
12862078CL, 128.62078CL - STOPTECH, CENTRIC PARTS
12662078CSR, 126.62078CSR - STOPTECH, CENTRIC PARTS
493455 - TRUCKSTAR BY BUYERS, TRUSTAR
12562078, 125.62078 - STOPTECH, CENTRIC PARTS
60366 - JAPAN PARTS, DURAGO

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (17)vehicles
All
Chevrolet
Pontiac
Saturn
2007 - 2009SaturnAura
2010 - 2010ChevroletHHR
2005 - 2007ChevroletCobalt
2005 - 2005PontiacG6
2008 - 2008ChevroletMalibu
2007 - 2009PontiacG5
2006 - 2007PontiacG6
2009 - 2009ChevroletHHR
2008 - 2010PontiacG6
2008 - 2008ChevroletMalibu
2004 - 2007SaturnIon
2008 - 2008ChevroletHHR
2006 - 2008ChevroletCobalt
2008 - 2012ChevroletMalibu
2008 - 2008ChevroletMalibu
2004 - 2007ChevroletMalibu
2006 - 2006PontiacPursuit
