Raybestos

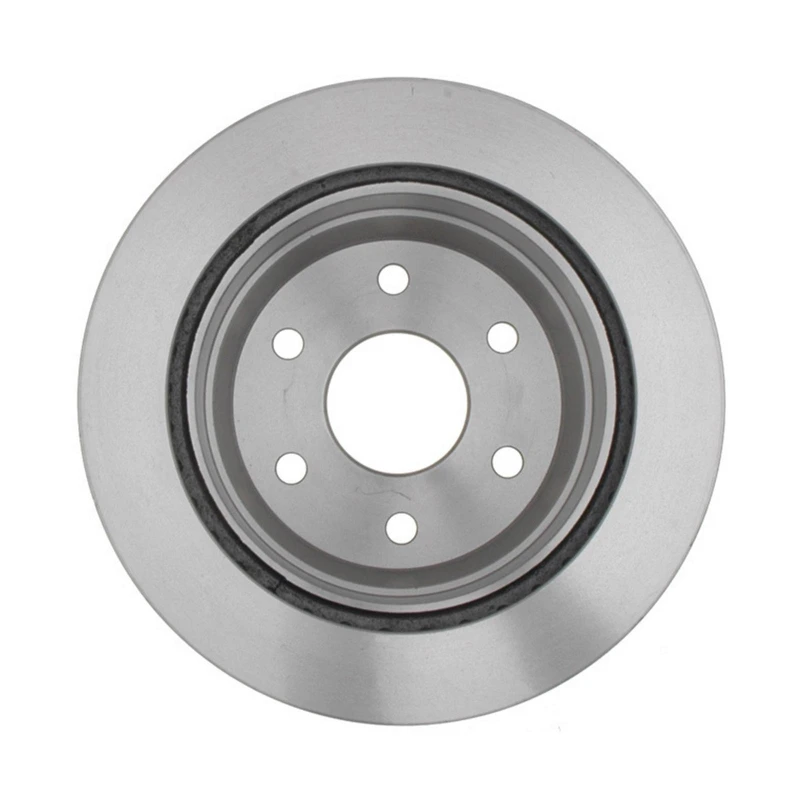

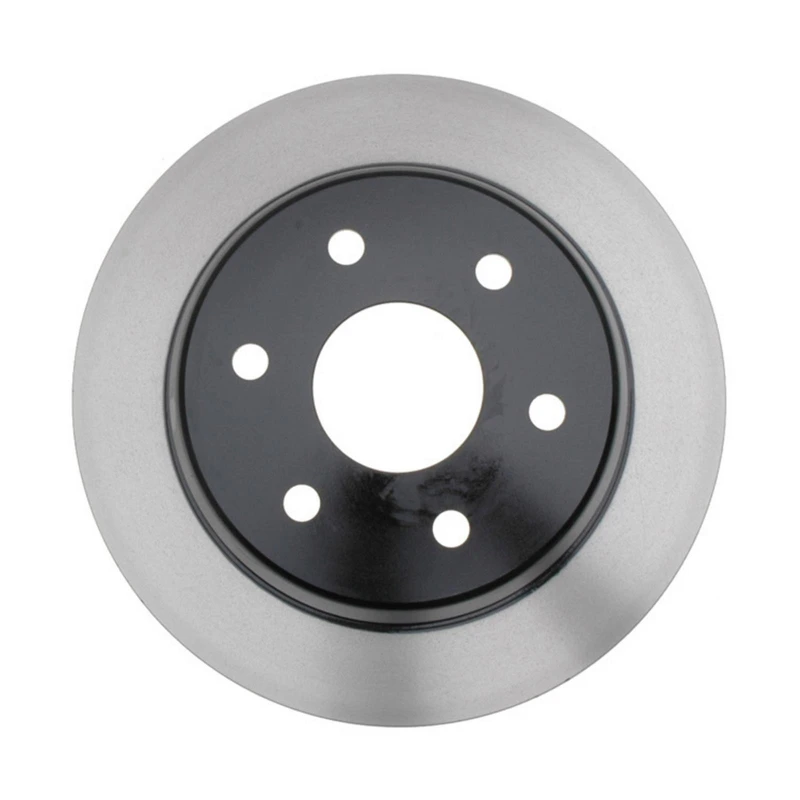

Raybestos 580165 Brake Rotor Rear Side

Part # 580165
Item # 1000VD3C
$95.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.09
Center Hole Diameter (mm)
78.5
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.122
Discard Thickness (mm)
28.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.5
Mounting Bolt Hole Circle Diameter (mm)
139.7
Mounting Bolt Hole Diameter (in)
0.645
Mounting Bolt Hole Diameter (mm)
16.4
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.185
Nominal Thickness (mm)
30.1
Outside Diameter (in)
13
Outside Diameter (mm)
330.2
Overall Height (in)
3.76
Overall Height (mm)
95.5
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55067, 5-5067 - CARQUEST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS, ULTRA BRAKE
55084, 5-5084 - CARQUEST, DURALAST, AUTOZONE, NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
25757802 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
15712802 - GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
15065077, 150.65077 - GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
12166045, 121.66045 - AUTOZONE, CENTRIC PARTS, CTEK
12066045, 120.66045 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD126032 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
CW30701 - ATE, CONTINENTAL
25010546 - BOSCH, BRAKEBEST
493545 - TRUCKSTAR BY BUYERS, TRUSTAR
R93545 - TRUCKSTAR BY BUYERS, TRUSTAR
12866045CL, 128.66045CL - STOPTECH, CENTRIC PARTS
12866045CR, 128.66045CR - STOPTECH, CENTRIC PARTS
32066045, 320.66045 - STOPTECH, CENTRIC PARTS
580165FZN - RAYBESTOS BRAKES, BRAKEBEST
177902, 177-902 - DELCOREMY, ACDELCO
22766045L, 227.66045L - STOPTECH, CENTRIC PARTS
22766045R, 227.66045R - STOPTECH, CENTRIC PARTS
580165PER - RAYBESTOS BRAKES, BRAKEBEST
580165 - RAYBESTOS BRAKES, BRAKEBEST
CW29703 - ATE, CONTINENTAL
BR55067 - DURAGO, DURA CORP
126032, 12-603-2 - PARTS MASTER, AUTOXTRA
YH145441 - CARQUEST, ADVANCE AUTO PARTS
12866045L, 128.66045L - STOPTECH, CENTRIC PARTS
BR5506702, BR55067-02 - DURAGO, DURA CORP
12866045R, 128.66045R - STOPTECH, CENTRIC PARTS
12766045CL, 127.66045CL - STOPTECH, CENTRIC PARTS
12666045SR, 126.66045SR - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (21)vehicles
All
Cadillac
Chevrolet
GMC
2004 - 2005GMCSierra 1500
2006 - 2006GMCSierra 1500
2000 - 2001ChevroletTahoe
2004 - 2006GMCYukon XL 1500
2002 - 2002GMCSierra 1500
2002 - 2006ChevroletSuburban 1500
2001 - 2001ChevroletSuburban 1500
2003 - 2006CadillacEscalade ESV
2000 - 2001GMCYukon
2001 - 2006ChevroletSilverado 1500
2002 - 2002GMCSierra 1500
2003 - 2014GMCSavana 1500
2003 - 2014ChevroletExpress 1500
2002 - 2002GMCSierra 1500
2003 - 2003GMCSierra 1500
2002 - 2006ChevroletAvalanche 1500
2002 - 2006CadillacEscalade EXT
2001 - 2001GMCSierra 1500
2002 - 2006GMCYukon
2002 - 2006ChevroletTahoe
