Raybestos

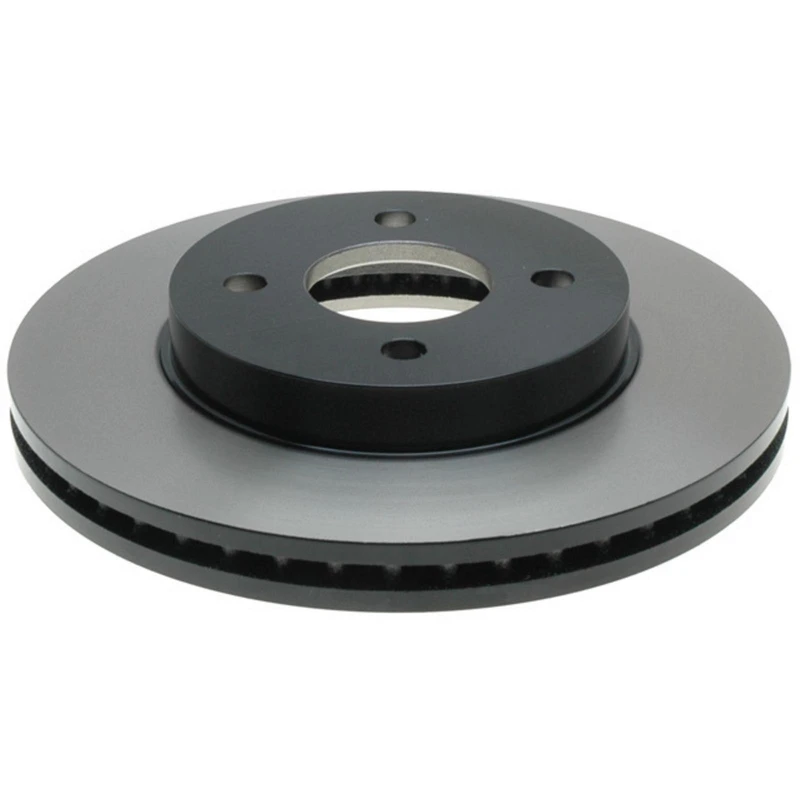

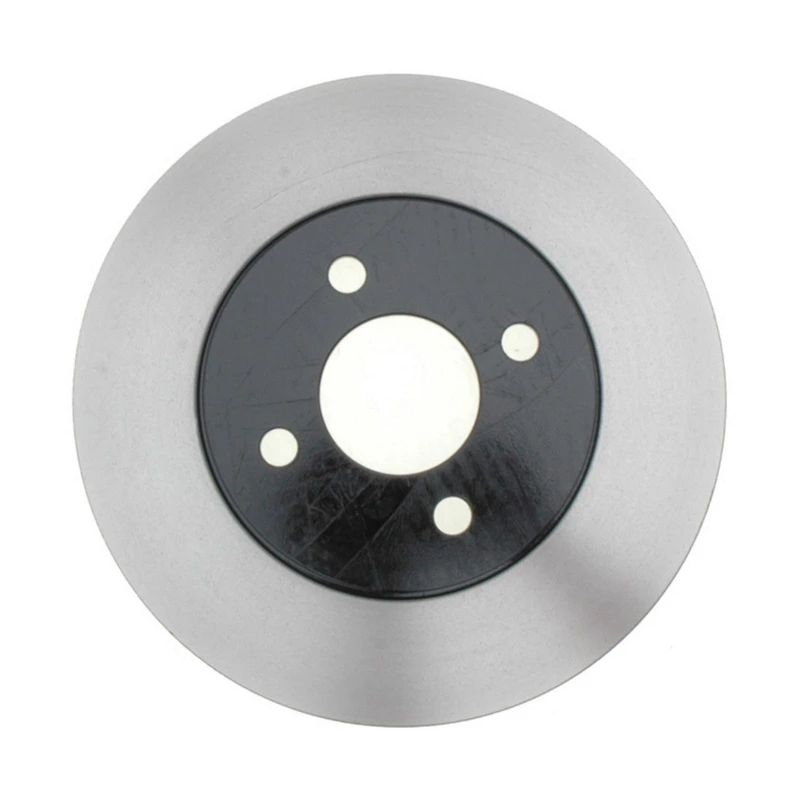

Raybestos 580137 Brake Rotor Front Side

Part # 580137
Item # 1000VDDK
$67.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.37
Center Hole Diameter (mm)
60.2
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.866
Discard Thickness (mm)
22
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.93
Mounting Bolt Hole Circle Diameter (mm)
99.8
Mounting Bolt Hole Diameter (in)
0.546
Mounting Bolt Hole Diameter (mm)
13.85
Mounting Bolt Hole Quantity
4
Nominal Thickness (in)
0.945
Nominal Thickness (mm)
24
Outside Diameter (in)
10.08
Outside Diameter (mm)
256.05
Overall Height (in)
1.84
Overall Height (mm)
46.75
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
4
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55083, 5-5083 - CARQUEST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
145419, 14-5419, 145-419 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS, PROMAX
22702612 - GENERAL MOTORS, OEM PART NUMBER, SATURN, CHEVROLET
12062072, 120.62072 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
55170, 5-5170 - NEWTEK AUTOMOTIVE USA, AIMCO, ULTRA BRAKE
BD126100 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
YH145419C - CARQUEST, ADVANCE AUTO PARTS
09B60610, 09.B606.10, 09 B606 10 - BREMBO, IMC
55083DL - DURALAST, AUTOZONE
12762072L, 127.62072L - STOPTECH, CENTRIC PARTS
12662072SR, 126.62072SR - STOPTECH, CENTRIC PARTS
AX55083 - AUTO EXTRA, AUTOXTRA
12762072R, 127.62072R - STOPTECH, CENTRIC PARTS
12662072SL, 126.62072SL - STOPTECH, CENTRIC PARTS
12162072, 121.62072 - CENTRIC PARTS, CTEK
BR900646 - DURAGO, DURA CORP
12862072CR, 128.62072CR - STOPTECH, CENTRIC PARTS
580137FZN - RAYBESTOS BRAKES, BRAKEBEST
12862072CL, 128.62072CL - STOPTECH, CENTRIC PARTS
493335 - TRUCKSTAR BY BUYERS, TRUSTAR
12862072R, 128.62072R - STOPTECH, CENTRIC PARTS
12862072L, 128.62072L - STOPTECH, CENTRIC PARTS
12062072CRY, 120.62072CRY - STOPTECH, CENTRIC PARTS
R93335 - TRUCKSTAR BY BUYERS, TRUSTAR
580137, 580-137 - RAYBESTOS BRAKES, BRAKEBEST
22762072R, 227.62072R - STOPTECH, CENTRIC PARTS
22762072L, 227.62072L - STOPTECH, CENTRIC PARTS
900646 - DURAGO, PARTS MASTER
BR5508302, BR55083-02 - DURAGO, DURA CORP
12662072CSR, 126.62072CSR - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Chevrolet
Pontiac
Saturn
2005 - 2006ChevroletCobalt
2007 - 2007ChevroletCobalt
2007 - 2007PontiacG5
2004 - 2007SaturnIon
2003 - 2003SaturnIon
2005 - 2006PontiacG4
2005 - 2006PontiacPursuit
2006 - 2007SaturnIon
