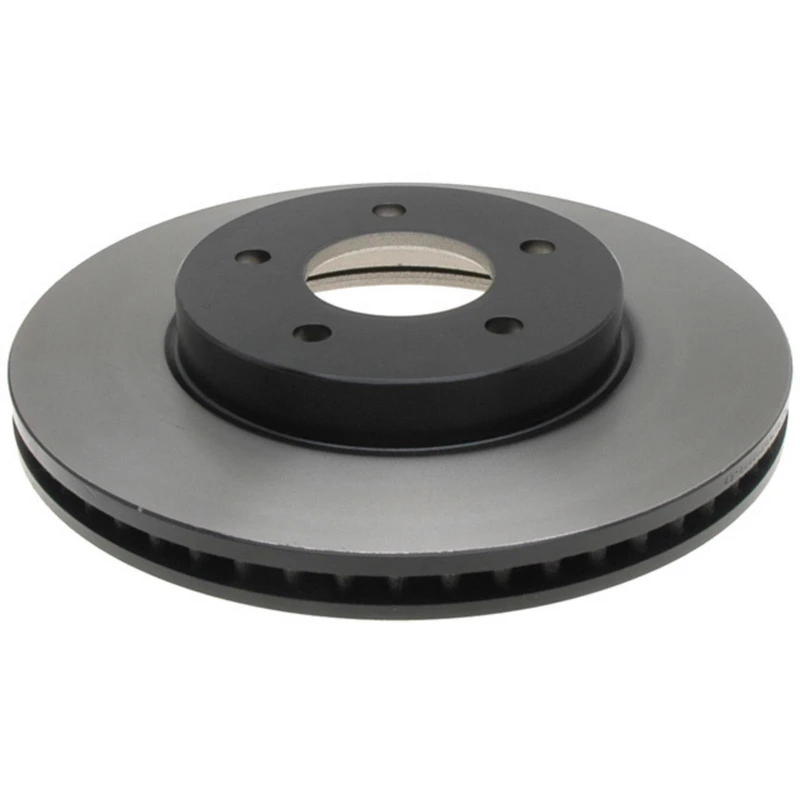

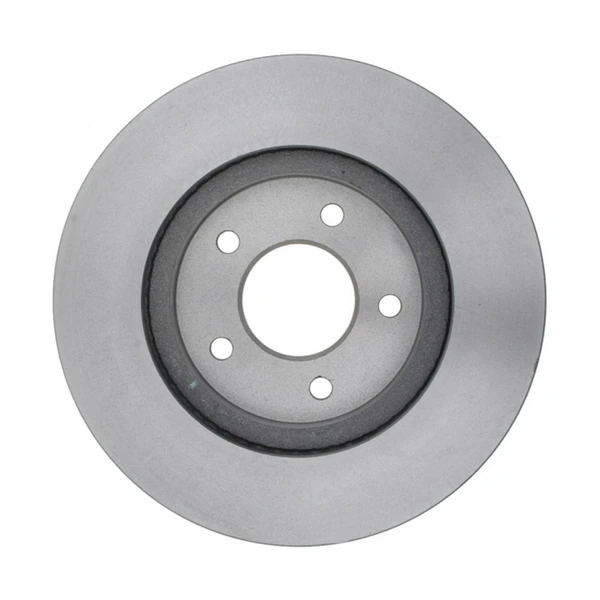

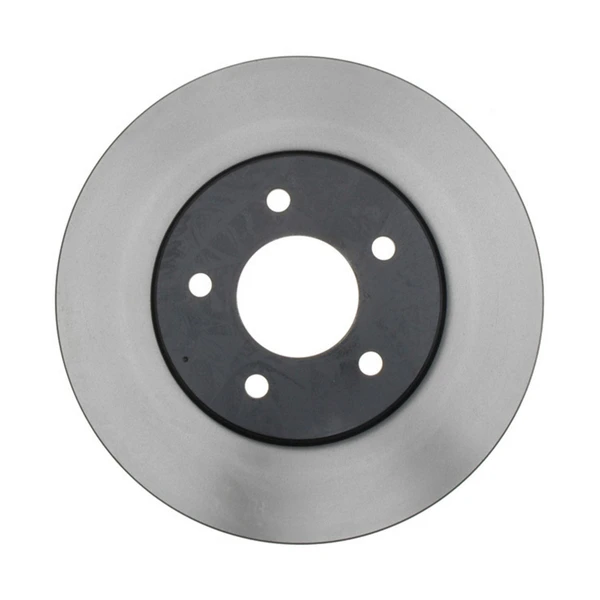

Raybestos 580083 Brake Rotor Front Side
Part # 580083
Item # 1000V742
$81.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.79
- Center Hole Diameter (mm)
- 70.85
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.965
- Discard Thickness (mm)
- 24.5
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.528
- Mounting Bolt Hole Circle Diameter (mm)
- 115
- Mounting Bolt Hole Diameter (in)
- 0.526
- Mounting Bolt Hole Diameter (mm)
- 13.35
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.025
- Nominal Thickness (mm)
- 26.05
- Outside Diameter (in)
- 11.65
- Outside Diameter (mm)
- 295.9
- Overall Height (in)
- 2.03
- Overall Height (mm)
- 51.55
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55080, 5-5080, 55-080 - CARQUEST, DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
22666578 - GENERAL MOTORS, OEM PART NUMBER, PONTIAC, SATURN, GMC, CHEVROLET
BD126102 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
145344 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS
12062068, 120.62068 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
580083R - RAYBESTOS BRAKES, BRAKEBEST
580083, 580.083 - RAYBESTOS BRAKES, BRAKEBEST
12762068L, 127.62068L - STOPTECH, CENTRIC PARTS
YH145344 - CARQUEST, ADVANCE AUTO PARTS
AR8271 - POWERSTOP, AUTOSPECIALTY
AX55080 - AUTO EXTRA, AUTOXTRA
662898 - WINHERE, PERFECT STOP
12762068R, 127.62068R - STOPTECH, CENTRIC PARTS
12662068CSL, 126.62068CSL - STOPTECH, CENTRIC PARTS
12862068L, 128.62068L - STOPTECH, CENTRIC PARTS
12662068CSR, 126.62068CSR - STOPTECH, CENTRIC PARTS
BR5508002, BR55080-02 - DURAGO, DURA CORP
55450, 5-5450 - EUROROTOR, ULTRA BRAKE
580083FZN - RAYBESTOS BRAKES, BRAKEBEST
12662068SL, 126.62068SL - STOPTECH, CENTRIC PARTS
12162068, 121.62068 - CENTRIC PARTS, CTEK
12862068R, 128.62068R - STOPTECH, CENTRIC PARTS
12862068CR, 128.62068CR - STOPTECH, CENTRIC PARTS
22762068L, 227.62068L - STOPTECH, CENTRIC PARTS
12762068CL, 127.62068CL - STOPTECH, CENTRIC PARTS
12862068CL, 128.62068CL - STOPTECH, CENTRIC PARTS
12662068SR, 126.62068SR - STOPTECH, CENTRIC PARTS
PSR662898 - POWERSTOP, PERFECT STOP
CW26749 - ATE, CONTINENTAL
25010569 - BOSCH, BRAKEBEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Chevrolet
Pontiac
Saturn
| 2002 - 2007 | Saturn | Vue |
| 2005 - 2006 | Chevrolet | Equinox |
| 2006 - 2006 | Pontiac | Torrent |
