Raybestos

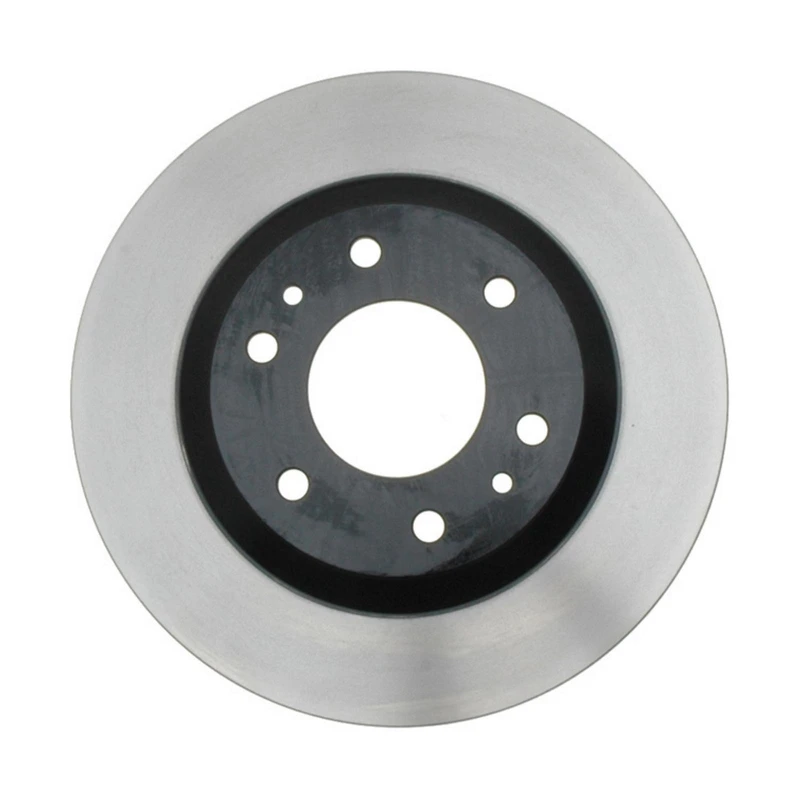

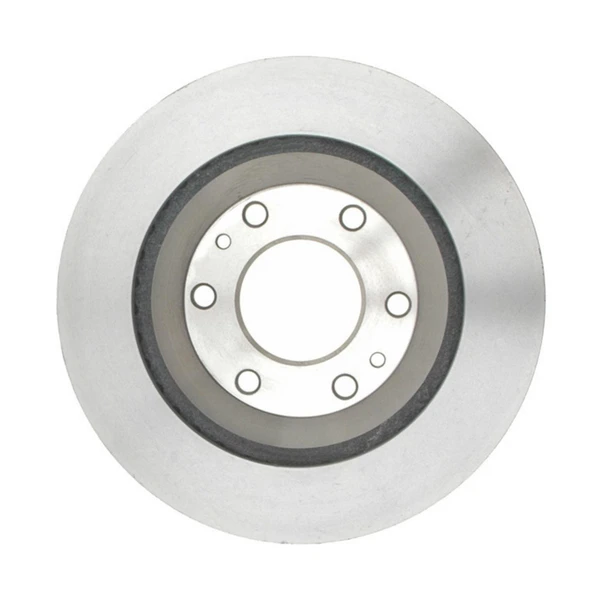

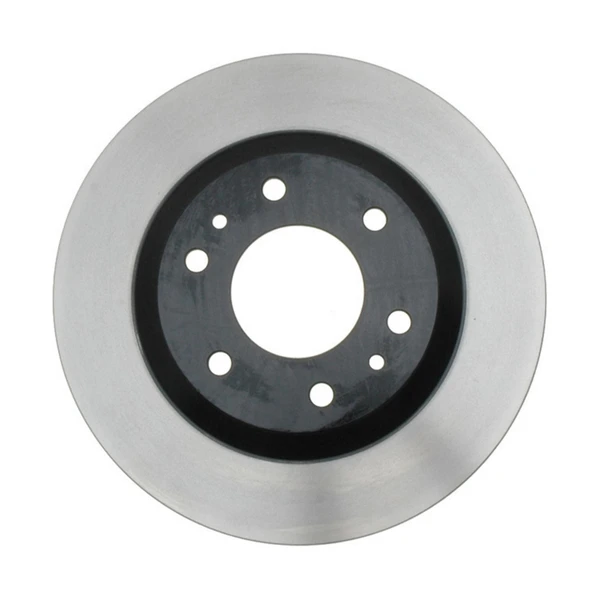

Raybestos 580019 Brake Rotor Front Side

Part # 580019
Item # 1000V8DY
$79.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.12
Center Hole Diameter (mm)
79.25
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.083
Discard Thickness (mm)
27.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5
Mounting Bolt Hole Circle Diameter (mm)
127
Mounting Bolt Hole Diameter (in)
0.517
Mounting Bolt Hole Diameter (mm)
13.15
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.142
Nominal Thickness (mm)
29
Outside Diameter (in)
12.008
Outside Diameter (mm)
305
Overall Height (in)
2.136
Overall Height (mm)
54.25
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55069, 5-5069 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
19181002 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, BUICK, SAAB, GMC, CHEVROLET, ISUZU
18060664, 18 06 066 4 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, BUICK, SAAB, GMC, CHEVROLET
12066051, 120.66051 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
2055069, 20-55069 - UAP, PROMAX, GEOTECH
BD126027 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
580019FZN - RAYBESTOS BRAKES, BRAKEBEST
12666051CSR, 126.66051CSR - STOPTECH, CENTRIC PARTS
YH145304 - CARQUEST, ADVANCE AUTO PARTS
12666051CSL, 126.66051CSL - STOPTECH, CENTRIC PARTS
12866051L, 128.66051L - STOPTECH, CENTRIC PARTS
580019R - RAYBESTOS BRAKES, BRAKEBEST
25010548 - BOSCH, BRAKEBEST
12866051R, 128.66051R - STOPTECH, CENTRIC PARTS
580019PER - RAYBESTOS BRAKES, BRAKEBEST
12166051, 121.66051 - CENTRIC PARTS, CTEK
09B61610, 09 B616 10, 09.B616.10 - BREMBO, IMC
32066051, 320.66051 - STOPTECH, CENTRIC PARTS
12766051L, 127.66051L - STOPTECH, CENTRIC PARTS
AR8649 - POWERSTOP, AUTOSPECIALTY
12766051R, 127.66051R - STOPTECH, CENTRIC PARTS
YH145304C - CARQUEST, ADVANCE AUTO PARTS
55069DL - DURALAST, AUTOZONE
12866051CR, 128.66051CR - STOPTECH, CENTRIC PARTS
12666051SR, 126.66051SR - STOPTECH, CENTRIC PARTS
12566051, 125.66051 - STOPTECH, CENTRIC PARTS
CW29701 - ATE, CONTINENTAL
BR55069 - DURAGO, DURA CORP
12666051SL, 126.66051SL - STOPTECH, CENTRIC PARTS
145304 - BENDIX, ADVANCE AUTO PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Buick
Chevrolet
GMC
Isuzu
Oldsmobile
2004 - 2005IsuzuAscender
2002 - 2005ChevroletTrailblazer
2002 - 2004OldsmobileBravada
2002 - 2004GMCEnvoy
2005 - 2005GMCEnvoy
2004 - 2005BuickRainier
