Raybestos

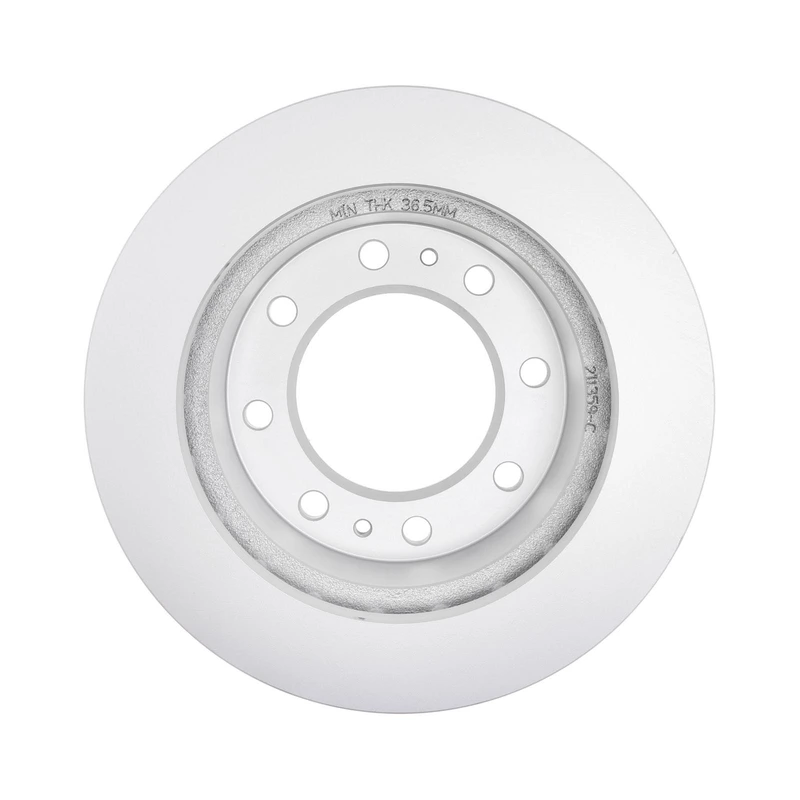

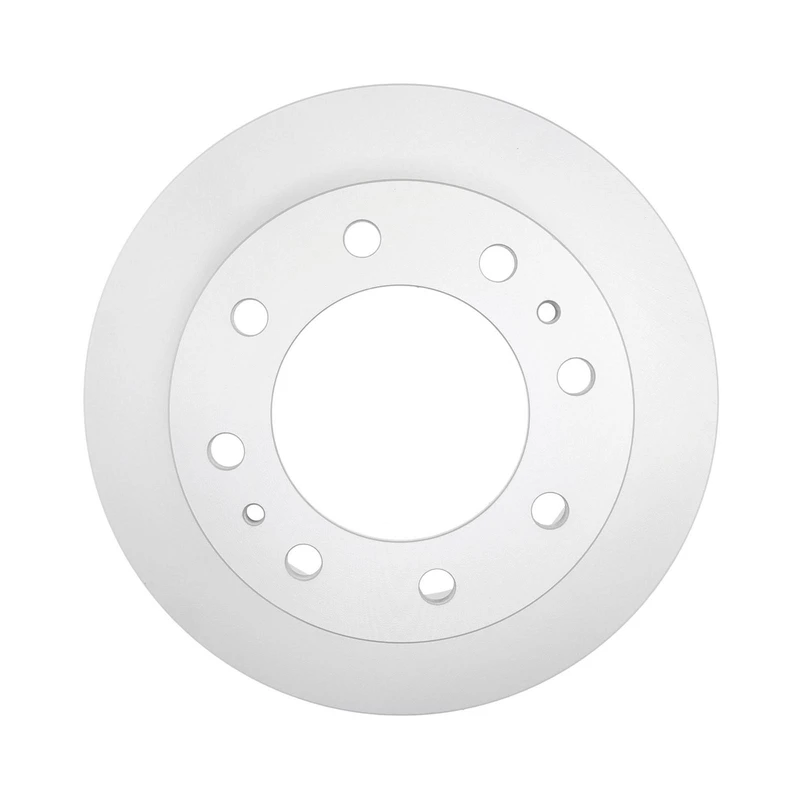

Raybestos 580000FZN Brake Rotor Front Side

Part # 580000FZN
Item # 1000V5Z4
$156.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Bearings Included
No
Center Hole Diameter (in)
4.65
Center Hole Diameter (mm)
118.1
Construction
Full Cast
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.437
Discard Thickness (mm)
36.5
Harmonize Code
8708.30.5030
Misc. Holes
2
Mounting Bolt Hole Circle Diameter (in)
6.5
Mounting Bolt Hole Circle Diameter (mm)
165.1
Mounting Bolt Hole Diameter (in)
0.635
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
8
Nominal Thickness (in)
1.5
Nominal Thickness (mm)
38.1
Outside Diameter (in)
12.795
Outside Diameter (mm)
325
Overall Height (in)
3.51
Overall Height (mm)
89.15
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
8
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55072, 5-5072 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
15942198 - GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
2055072, 20-55072 - UAP, PROMAX, GEOTECH
BD126036 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12066059, 120.66059 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
18060654 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
R93235 - TRUCKSTAR BY BUYERS, TRUSTAR
177880, 177-880 - DELCOREMY, ACDELCO
12866059L, 128.66059L - STOPTECH, CENTRIC PARTS
12666059CSR, 126.66059CSR - STOPTECH, CENTRIC PARTS
12866059R, 128.66059R - STOPTECH, CENTRIC PARTS
12066059CRY, 120.66059CRY - STOPTECH, CENTRIC PARTS
6621030, 66-21-030 - WINHERE, PERFECT STOP
12166059, 121.66059 - CENTRIC PARTS, CTEK
AR8642 - POWERSTOP, AUTOSPECIALTY
YH145316 - CARQUEST, ADVANCE AUTO PARTS
12566059CRY, 125.66059CRY - STOPTECH, CENTRIC PARTS
12766059L, 127.66059L - STOPTECH, CENTRIC PARTS
12766059R, 127.66059R - STOPTECH, CENTRIC PARTS
AX55072 - AUTO EXTRA, AUTOXTRA
580000, 5-80000, 580-000 - RAYBESTOS BRAKES, BRAKEBEST
YH145316C - CARQUEST, ADVANCE AUTO PARTS
580000PER - RAYBESTOS BRAKES, BRAKEBEST
12666059SR, 126.66059SR - STOPTECH, CENTRIC PARTS
BR5507202, BR55072-02 - DURAGO, DURA CORP
12866059CL, 128.66059CL - STOPTECH, CENTRIC PARTS
12766059CL, 127.66059CL - STOPTECH, CENTRIC PARTS
12666059SL, 126.66059SL - STOPTECH, CENTRIC PARTS
580000FZN - RAYBESTOS BRAKES, BRAKEBEST
32066059, 320.66059 - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (17)vehicles
All
Chevrolet
GMC
2001 - 2010ChevroletSilverado 2500 HD
2002 - 2004ChevroletAvalanche 2500
2003 - 2005ChevroletExpress 3500
2004 - 2006ChevroletSilverado 3500
2006 - 2024ChevroletExpress 3500
2007 - 2007ChevroletSilverado 2500 HD Classic
2007 - 2007ChevroletSilverado 3500
2007 - 2007ChevroletSilverado 3500 Classic
2007 - 2010ChevroletSilverado 3500 HD
2021 - 2024ChevroletExpress 2500
2001 - 2010GMCSierra 2500 HD
2003 - 2024GMCSavana 3500
2004 - 2006GMCSierra 3500
2007 - 2007GMCSierra 2500 HD Classic
2007 - 2007GMCSierra 3500 Classic
2007 - 2010GMCSierra 3500 HD
2021 - 2024GMCSavana 2500
