Raybestos

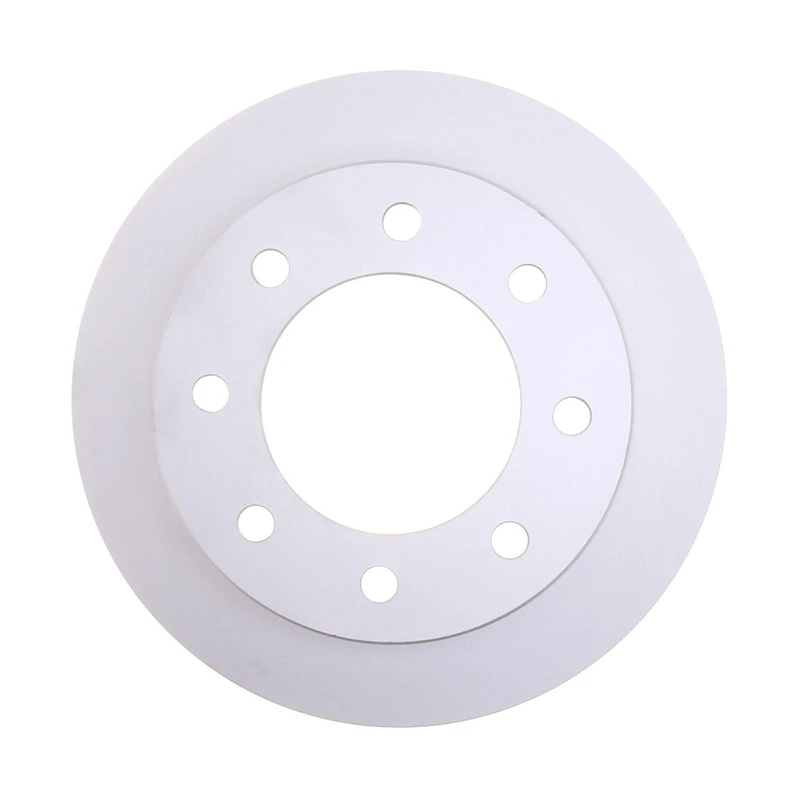

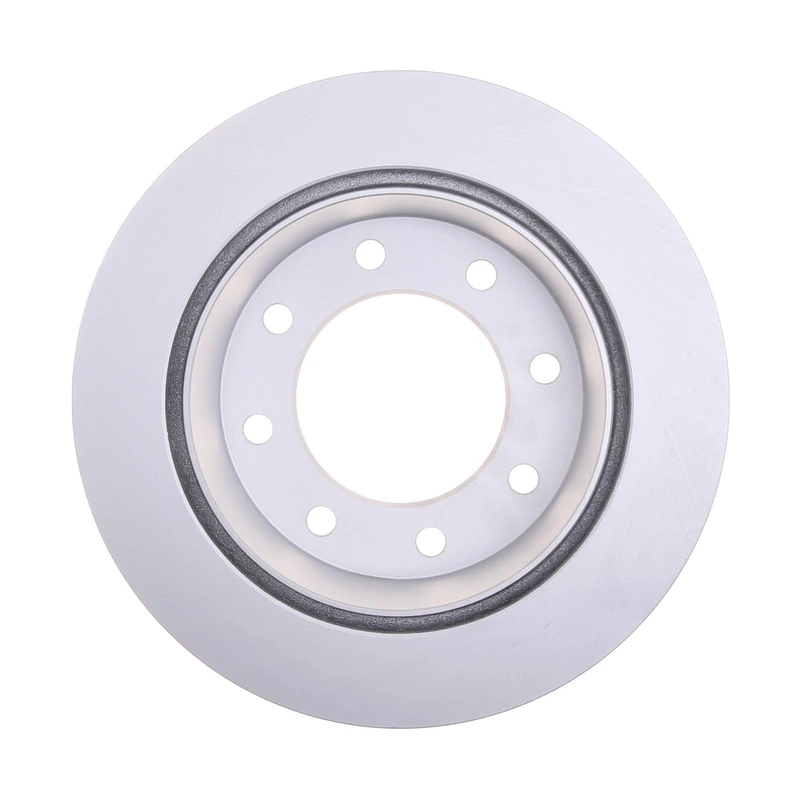

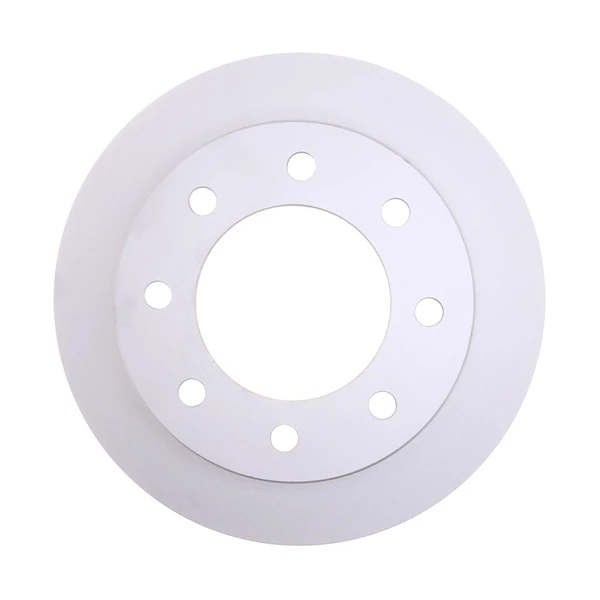

Raybestos 56830FZN Brake Rotor Rear Side

Part # 56830FZN
Item # 1000V864
$90.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
4.63
Center Hole Diameter (mm)
117.6
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.043
Discard Thickness (mm)
26.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
6.5
Mounting Bolt Hole Circle Diameter (mm)
165.1
Mounting Bolt Hole Diameter (in)
0.625
Mounting Bolt Hole Diameter (mm)
15.9
Mounting Bolt Hole Quantity
8
Nominal Thickness (in)
1.142
Nominal Thickness (mm)
29
Outside Diameter (in)
13
Outside Diameter (mm)
330.2
Overall Height (in)
3.42
Overall Height (mm)
86.85
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
8
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
56830FZN
09.8812.80
101005
120.66043
120.66043CRY
121.66043
125.66043
125.66043CRY
125656
126.66043CSL
126.66043CSR
126.66043SL
126.66043SR
127.66043CR
127.66043L
127.66043R
128.66043CL
128.66043CR
128.66043L
128.66043R
14-55057
145262
15712801
177-860
20-55057
2055057
211253-C
227.66043L
227.66043R
27049

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (53)vehicles
All
Chevrolet
GMC
Hummer
1999 - 2002ChevroletSilverado 2500
2000 - 2000ChevroletSuburban 2500
2001 - 2002ChevroletSilverado 1500 HD
2001 - 2002ChevroletSuburban 2500
2001 - 2006ChevroletSilverado 2500 HD
2003 - 2003ChevroletSilverado 1500 HD
2003 - 2004ChevroletSilverado 2500
2003 - 2005ChevroletExpress 2500
2003 - 2006ChevroletSuburban 2500
2005 - 2005ChevroletSilverado 1500 HD
2006 - 2006ChevroletSilverado 1500 HD
2006 - 2007ChevroletExpress 2500
2006 - 2007ChevroletExpress 2500
2006 - 2010ChevroletExpress 3500
2006 - 2010ChevroletExpress 3500
2006 - 2010ChevroletExpress 3500
2007 - 2007ChevroletSilverado 1500 HD Classic
2007 - 2007ChevroletSuburban 2500
2008 - 2009ChevroletExpress 2500
2008 - 2009ChevroletExpress 2500

Highlights
