Raybestos

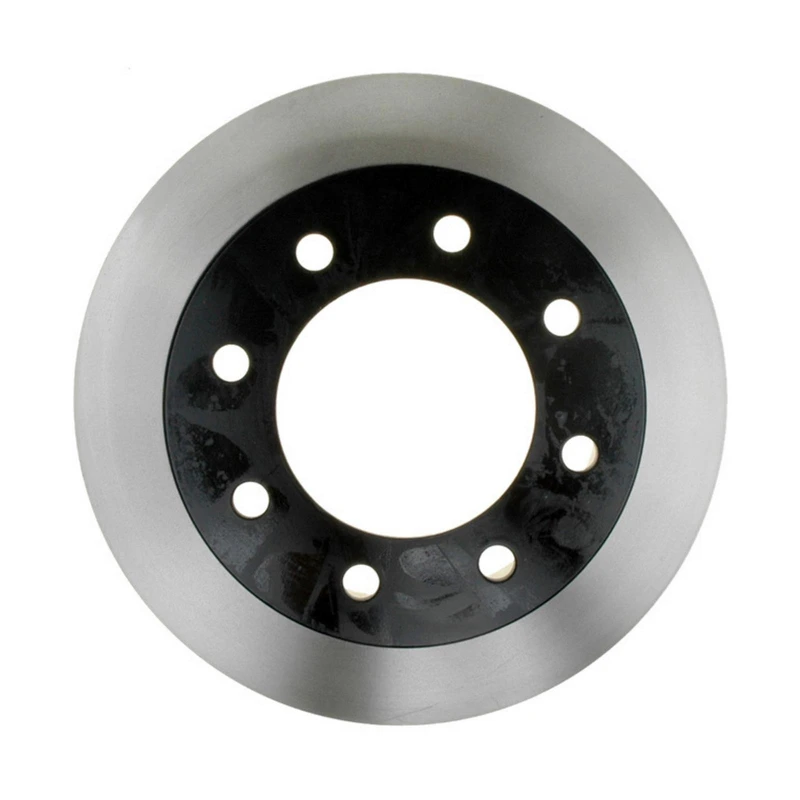

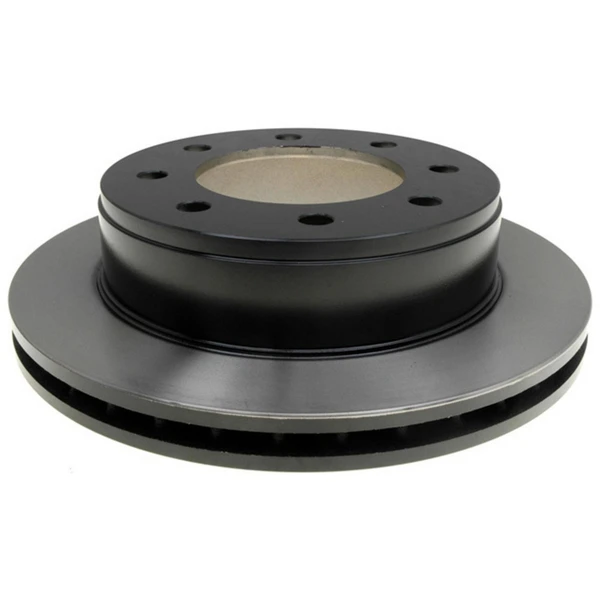

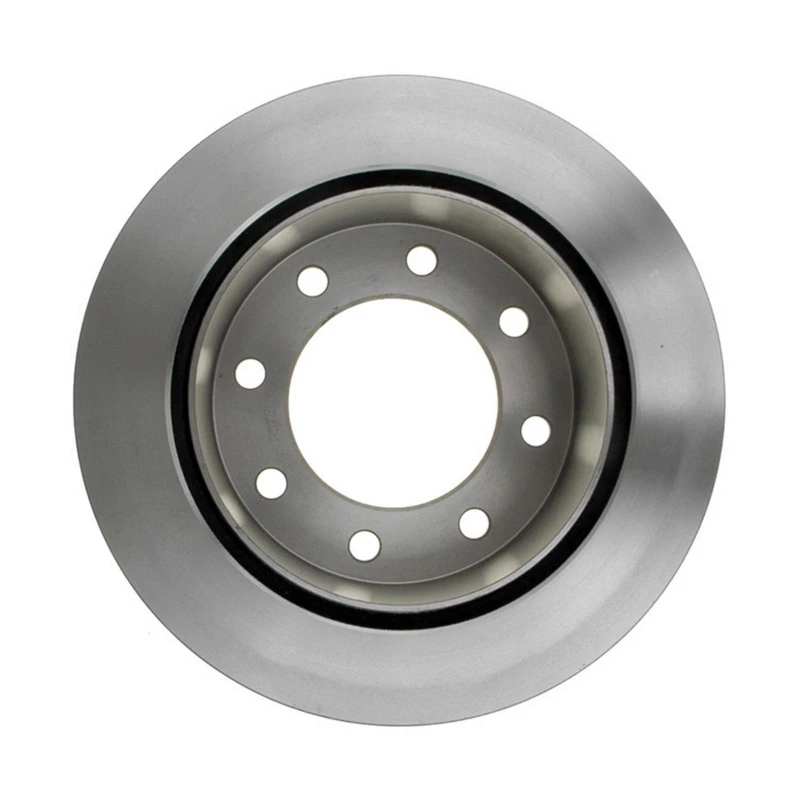

Raybestos 56830 Brake Rotor Rear Side

Part # 56830
Item # 1000VA2Q
$94.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
4.63
Center Hole Diameter (mm)
117.6
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.043
Discard Thickness (mm)
26.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
6.5
Mounting Bolt Hole Circle Diameter (mm)
165.1
Mounting Bolt Hole Diameter (in)
0.625
Mounting Bolt Hole Diameter (mm)
15.9
Mounting Bolt Hole Quantity
8
Nominal Thickness (in)
1.142
Nominal Thickness (mm)
29
Outside Diameter (in)
13
Outside Diameter (mm)
330.2
Overall Height (in)
3.42
Overall Height (mm)
86.85
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
8
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55057, 5-5057, 5.5057 - CARQUEST, DURALAST, PAGID RACING, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
15712801 - GENERAL MOTORS, HUMMER, OEM PART NUMBER, GMC, CHEVROLET
12066043, 120.66043 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD125656 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
2055057, 20-55057 - UAP, PROMAX, GEOTECH
56830FZN - RAYBESTOS BRAKES, BRAKEBEST
56830PER - RAYBESTOS BRAKES, BRAKEBEST
E12671048, E126-71-048 - BENDIX, FORMULA BLUE HYDRAULIC BRAKE PARTS
52125656, 52-125656 - GUARDIAN, WAGNER BRAKE
32066043, 320.66043 - STOPTECH, CENTRIC PARTS
12866043L, 128.66043L - STOPTECH, CENTRIC PARTS
09881280, 09 8812 80, 09.8812.80 - BREMBO, IMC
662574, 66-2574 - WINHERE, PERFECT STOP
YH145262 - CARQUEST, ADVANCE AUTO PARTS
12766043CR, 127.66043CR - STOPTECH, CENTRIC PARTS
12566043CRY, 125.66043CRY - STOPTECH, CENTRIC PARTS
12866043R, 128.66043R - STOPTECH, CENTRIC PARTS
12866043CL, 128.66043CL - STOPTECH, CENTRIC PARTS
BR900562 - DURAGO, DURA CORP
AR8643 - POWERSTOP, AUTOSPECIALTY
12866043CR, 128.66043CR - STOPTECH, CENTRIC PARTS
BR55057 - DURAGO, DURA CORP
145262 - BENDIX, ADVANCE AUTO PARTS
12666043CSR, 126.66043CSR - STOPTECH, CENTRIC PARTS
12666043CSL, 126.66043CSL - STOPTECH, CENTRIC PARTS
177860, 177-860 - DELCOREMY, ACDELCO
12766043R, 127.66043R - STOPTECH, CENTRIC PARTS
12066043CRY, 120.66043CRY - STOPTECH, CENTRIC PARTS
YH145262P - CARQUEST, ADVANCE AUTO PARTS
12766043L, 127.66043L - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (53)vehicles
All
Chevrolet
GMC
Hummer
2001 - 2002ChevroletSuburban 2500
2001 - 2006ChevroletSilverado 2500 HD
2007 - 2008GMCSavana 3500
2001 - 2002GMCSierra 1500 HD
2006 - 2007ChevroletExpress 2500
2010 - 2010ChevroletExpress 2500
2010 - 2010GMCSavana 2500
2006 - 2010ChevroletExpress 3500
2011 - 2012GMCSavana 3500
2010 - 2010GMCSavana 2500
2001 - 2002ChevroletSilverado 1500 HD
2006 - 2006GMCSavana 2500
1999 - 2002GMCSierra 2500
2001 - 2006GMCSierra 2500 HD
2002 - 2002GMCYukon XL 2500
2006 - 2006GMCYukon XL 2500
2006 - 2006ChevroletSilverado 1500 HD
2007 - 2007GMCSierra 1500 HD Classic
2012 - 2012ChevroletExpress 3500
2007 - 2008GMCSavana 3500
