Raybestos

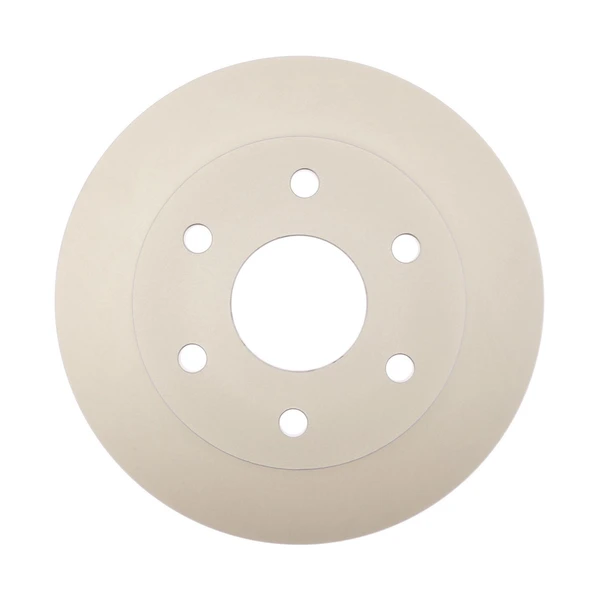

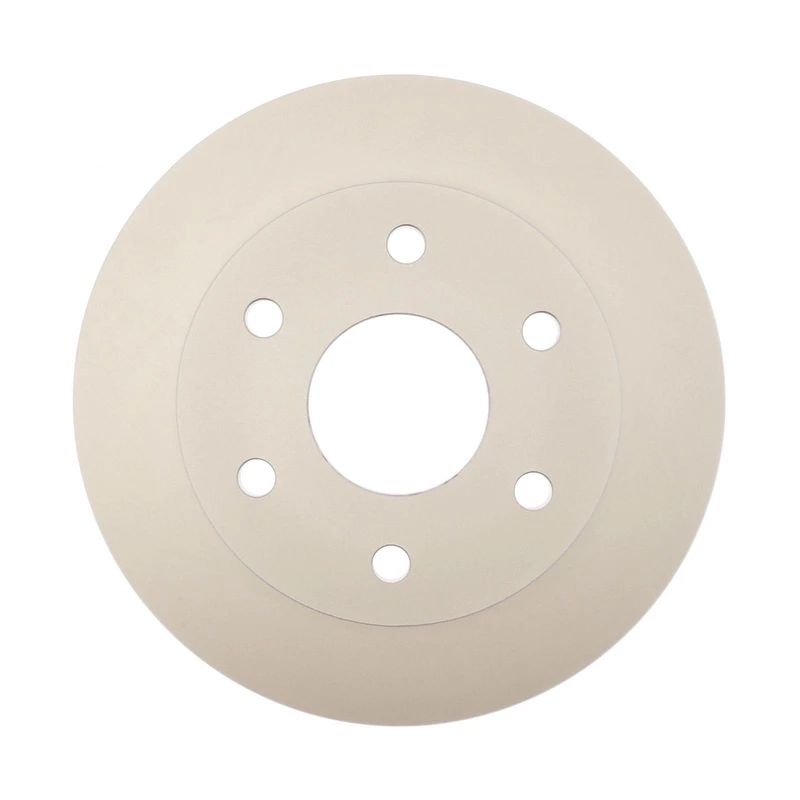

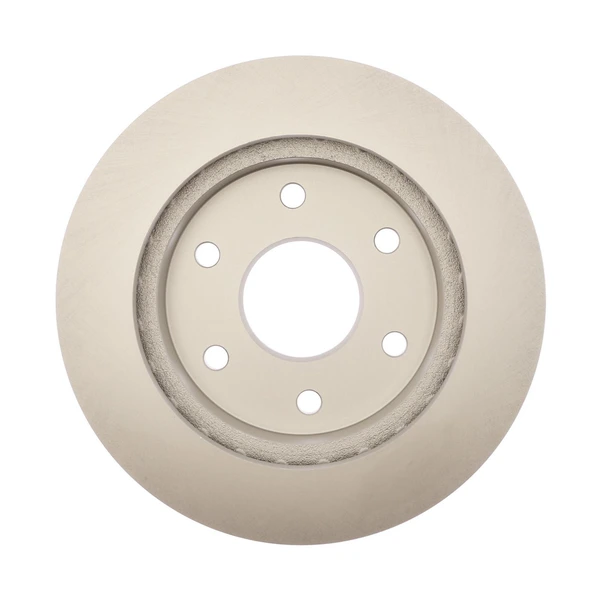

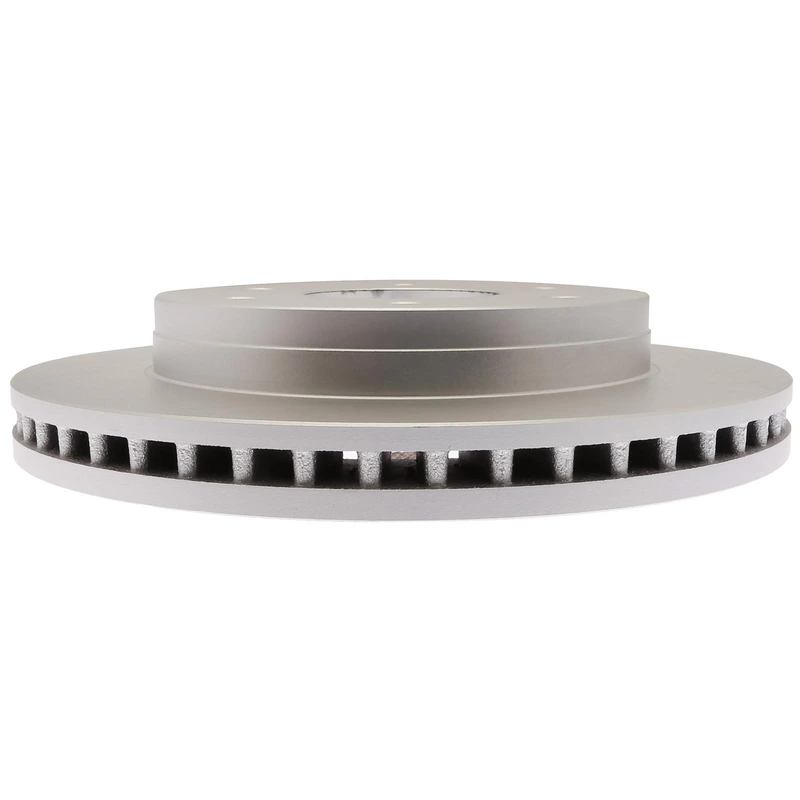

Raybestos 56825 Brake Rotor Front Side

Part # 56825
Item # 1000VA84
$78.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.09
Center Hole Diameter (mm)
78.5
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.07
Discard Thickness (mm)
27.2
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.5
Mounting Bolt Hole Circle Diameter (mm)
139.7
Mounting Bolt Hole Diameter (in)
0.635
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.142
Nominal Thickness (mm)
29
Outside Diameter (in)
12
Outside Diameter (mm)
304.8
Overall Height (in)
2.285
Overall Height (mm)
58.05
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55054 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
19210603 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
12066040, 120.66040 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
55400, 55-400 - EUROROTOR, PAGID RACING, ULTRA BRAKE
145259 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS
BD125654 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
2055054, 20-55054 - UAP, PROMAX, GEOTECH
15716362 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
18060214 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
15181156 - GENERAL MOTORS, CHEVROLET
672902 - VALEO, GREN
BR55054 - DURAGO, DURA CORP
22766040L, 227.66040L - STOPTECH, CENTRIC PARTS
32066040, 320.66040 - STOPTECH, CENTRIC PARTS
56825FZN - RAYBESTOS BRAKES, BRAKEBEST
22766040R, 227.66040R - STOPTECH, CENTRIC PARTS
56825PER - RAYBESTOS BRAKES, BRAKEBEST
12866040CL, 128.66040CL - STOPTECH, CENTRIC PARTS
AR8640 - POWERSTOP, AUTOSPECIALTY
12766040R, 127.66040R - STOPTECH, CENTRIC PARTS
12566040CRY, 125.66040CRY - STOPTECH, CENTRIC PARTS
662572, 66-2572 - WINHERE, PERFECT STOP
12666040SR, 126.66040SR - STOPTECH, CENTRIC PARTS
12766040L, 127.66040L - STOPTECH, CENTRIC PARTS
12566040, 125.66040 - STOPTECH, CENTRIC PARTS
12666040SL, 126.66040SL - STOPTECH, CENTRIC PARTS
55054DL - DURALAST, AUTOZONE
177863, 177-863 - DELCOREMY, ACDELCO
BR5505402, BR55054-02 - DURAGO, DURA CORP
56825 - RAYBESTOS BRAKES, BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (20)vehicles
All
Cadillac
Chevrolet
GMC
1999 - 2006GMCSierra 1500
2002 - 2006ChevroletAvalanche 1500
2001 - 2006GMCYukon
2000 - 2000GMCYukon
2007 - 2007GMCSierra 1500 Classic
2003 - 2008ChevroletExpress 1500
2003 - 2005ChevroletAstro
2000 - 2006ChevroletSuburban 1500
2003 - 2006CadillacEscalade ESV
2002 - 2006CadillacEscalade EXT
2003 - 2008GMCSavana 1500
2003 - 2005GMCSafari
2003 - 2006GMCSavana 2500
2003 - 2006ChevroletExpress 2500
2000 - 2006ChevroletTahoe
1999 - 2006ChevroletSilverado 1500
2000 - 2000GMCYukon
2000 - 2006GMCYukon XL 1500
2002 - 2006CadillacEscalade
2007 - 2007ChevroletSilverado 1500 Classic
