Raybestos

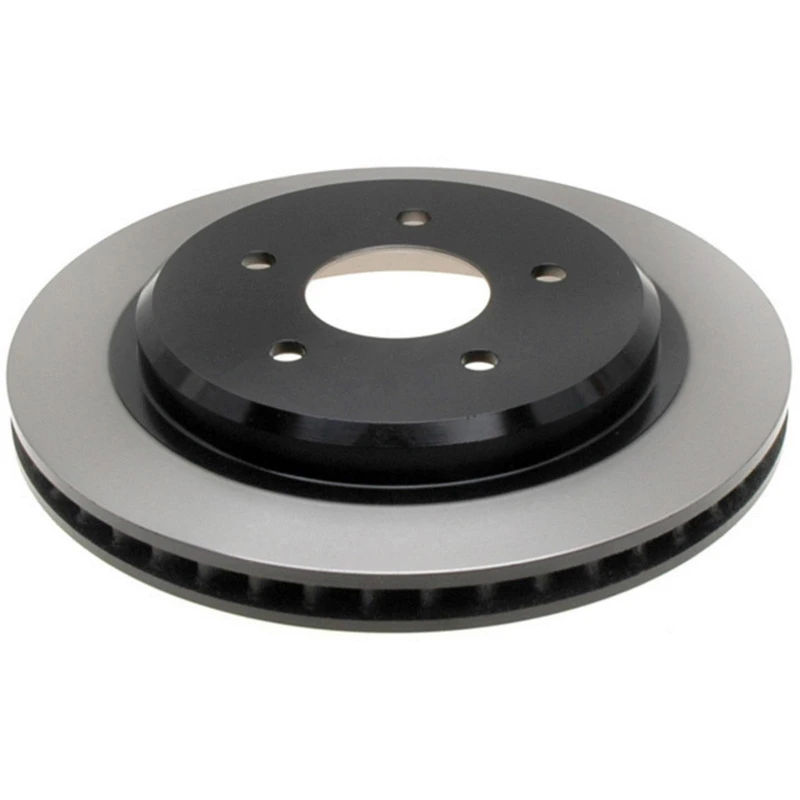

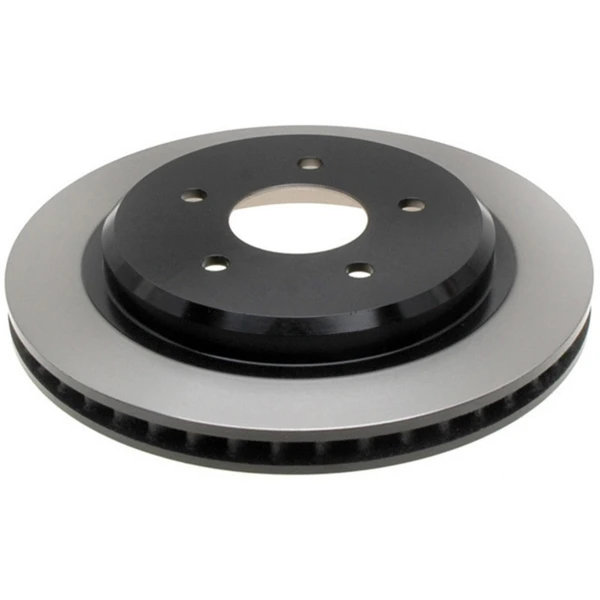

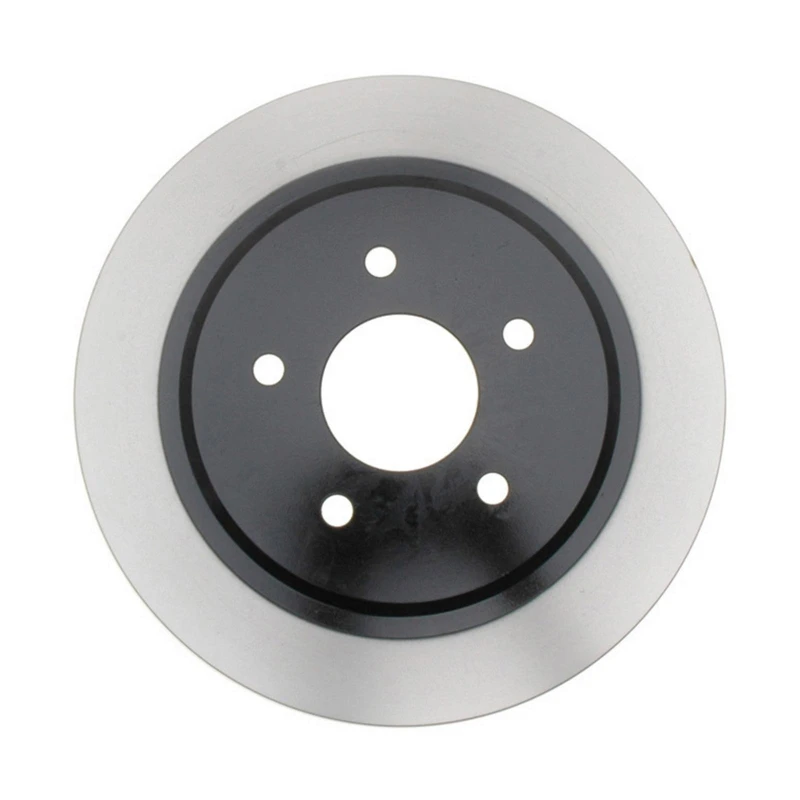

Raybestos 56702 Brake Rotor Rear Left Driver Side

Part # 56702
Item # 1000V7UV
$79.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Left Driver Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.782
Center Hole Diameter (mm)
70.65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.964
Discard Thickness (mm)
24.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.75
Mounting Bolt Hole Circle Diameter (mm)
120.65
Mounting Bolt Hole Diameter (in)
0.526
Mounting Bolt Hole Diameter (mm)
13.35
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.025
Nominal Thickness (mm)
26.05
Outside Diameter (in)
12
Outside Diameter (mm)
304.8
Overall Height (in)
1.905
Overall Height (mm)
48.4
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55045, 5-5045 - QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
10445859 - GENERAL MOTORS, OEM PART NUMBER, CASTING NUMBERS, CHEVROLET
BD125541 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
41132, 4113-2, 41-132 - AUTOZONE, AIMCO, QUALIS
12062061, 120.62061 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
10262997 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12062061CRY, 120.62061CRY - STOPTECH, CENTRIC PARTS
145170 - BENDIX, ADVANCE AUTO PARTS
BR55045 - DURAGO, DURA CORP
12862061CL, 128.62061CL - STOPTECH, CENTRIC PARTS
12762061CL, 127.62061CL - STOPTECH, CENTRIC PARTS
177837, 177-837 - DELCOREMY, ACDELCO
56702R - RAYBESTOS BRAKES, BRAKEBEST
12862061L, 128.62061L - STOPTECH, CENTRIC PARTS
10406649 - GENERAL MOTORS, OEM PART NUMBER
900500 - DURAGO, PARTS MASTER
12762061L, 127.62061L - STOPTECH, CENTRIC PARTS
56702 - RAYBESTOS BRAKES, BRAKEBEST
12162061, 121.62061 - CENTRIC PARTS, CTEK
BR900772 - DURAGO, DURA CORP
900772 - DURAGO, PARTS MASTER
8936061, 89-36061 - DELTA, AMERICAN REMANUFACTURED
12562061CRY, 125.62061CRY - STOPTECH, CENTRIC PARTS
177854, 177-854 - DELCOREMY, ACDELCO
25010647 - BOSCH, BRAKEBEST
4420001 - WINHERE, PERFECT STOP
12562061, 125.62061 - STOPTECH, CENTRIC PARTS
AR8261 - POWERSTOP, AUTOSPECIALTY
22762061L, 227.62061L - STOPTECH, CENTRIC PARTS
YH145170 - CARQUEST, ADVANCE AUTO PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Cadillac
Chevrolet
2006 - 2009CadillacXLR
2010 - 2011ChevroletCorvette
2009 - 2009ChevroletCorvette
2012 - 2013ChevroletCorvette
1997 - 2004ChevroletCorvette
2005 - 2005ChevroletCorvette
2004 - 2005CadillacXLR
2006 - 2007ChevroletCorvette
2008 - 2008ChevroletCorvette
