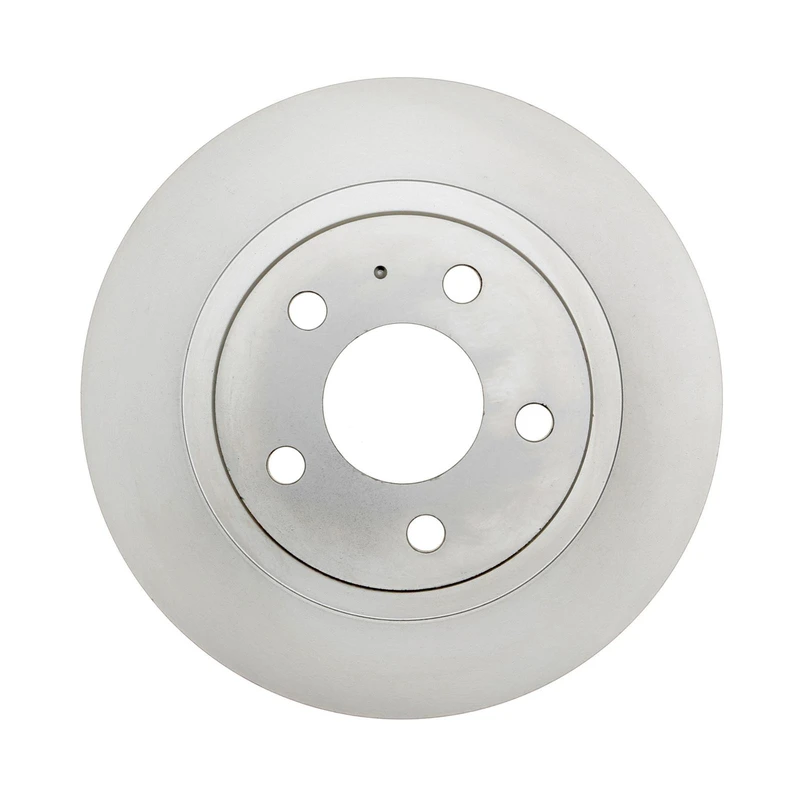

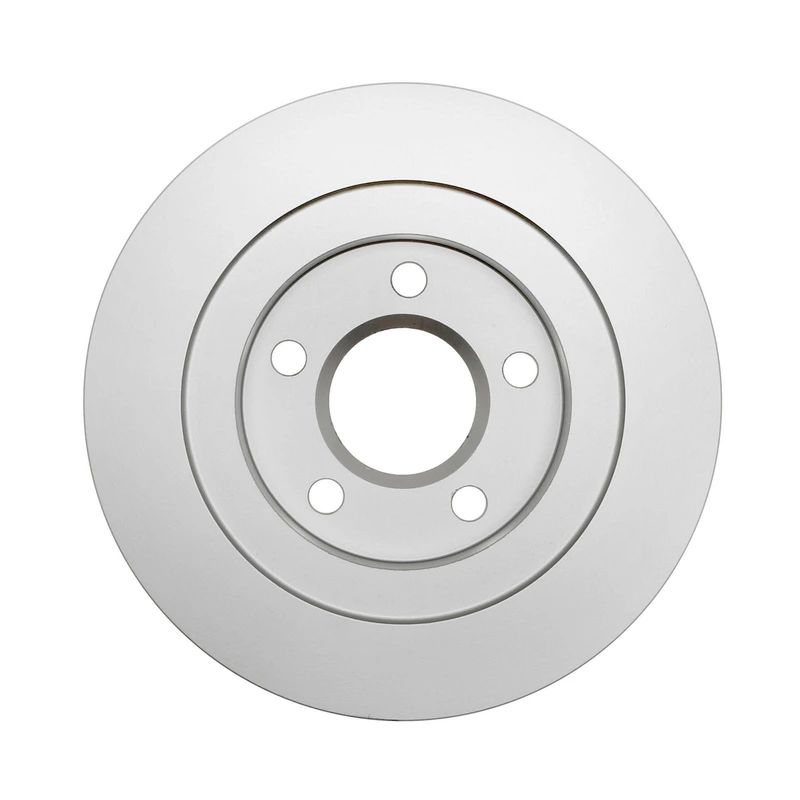

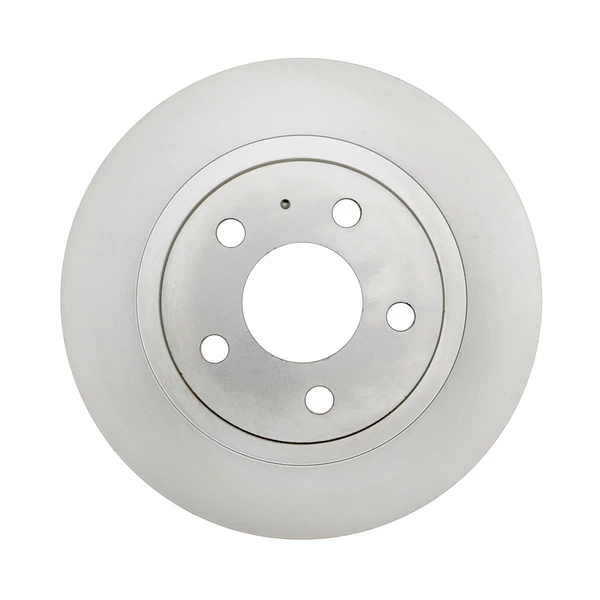

Raybestos 56698FZN Brake Rotor Rear Side
Part # 56698FZN
Item # 1000V518
$54.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Rear Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.79
- Center Hole Diameter (mm)
- 70.85
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.354
- Discard Thickness (mm)
- 9
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.646
- Mounting Bolt Hole Circle Diameter (mm)
- 118
- Mounting Bolt Hole Diameter (in)
- 0.635
- Mounting Bolt Hole Diameter (mm)
- 16.15
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 0.435
- Nominal Thickness (mm)
- 11.05
- Outside Diameter (in)
- 11.72
- Outside Diameter (mm)
- 297.7
- Overall Height (in)
- 1.52
- Overall Height (mm)
- 38.6
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Solid
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55051, 5-5051 - CARQUEST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
18023592 - CADILLAC, GENERAL MOTORS, OEM PART NUMBER, GMC
BD125562 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
18040482 - GENERAL MOTORS, OEM PART NUMBER, GMC
12062064, 120.62064 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
125562 - PARTS MASTER, AUTOXTRA
YH145220P - CARQUEST, ADVANCE AUTO PARTS
BR55051 - DURAGO, DURA CORP
56698 - RAYBESTOS BRAKES, BRAKEBEST
YH145220 - CARQUEST, ADVANCE AUTO PARTS
12762064R, 127.62064R - STOPTECH, CENTRIC PARTS
12762064L, 127.62064L - STOPTECH, CENTRIC PARTS
661329, 66-1329 - WINHERE, PERFECT STOP
145220, 145-220 - BENDIX, ADVANCE AUTO PARTS
12662064SR, 126.62064SR - STOPTECH, CENTRIC PARTS
12862064R, 128.62064R - STOPTECH, CENTRIC PARTS
12662064SL, 126.62064SL - STOPTECH, CENTRIC PARTS
12862064L, 128.62064L - STOPTECH, CENTRIC PARTS
56698R - RAYBESTOS BRAKES, BRAKEBEST
12162064, 121.62064 - CENTRIC PARTS, CTEK
BR5505102, BR55051-02 - DURAGO, DURA CORP
8936064, 89-36064 - DELTA, AMERICAN REMANUFACTURED
12862064CR, 128.62064CR - STOPTECH, CENTRIC PARTS
12762064CR, 127.62064CR - STOPTECH, CENTRIC PARTS
12762064CL, 127.62064CL - STOPTECH, CENTRIC PARTS
12862064CL, 128.62064CL - STOPTECH, CENTRIC PARTS
22762064R, 227.62064R - STOPTECH, CENTRIC PARTS
12662064CSR, 126.62064CSR - STOPTECH, CENTRIC PARTS
22762064L, 227.62064L - STOPTECH, CENTRIC PARTS
25010566 - BOSCH, BRAKEBEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Buick
Cadillac
Pontiac
| 2004 - 2005 | Pontiac | Bonneville |
| 2003 - 2004 | Cadillac | Seville |
| 2000 - 2005 | Cadillac | DeVille |
| 1998 - 2002 | Cadillac | Seville |
| 2003 - 2005 | Buick | Park Avenue |
