Raybestos

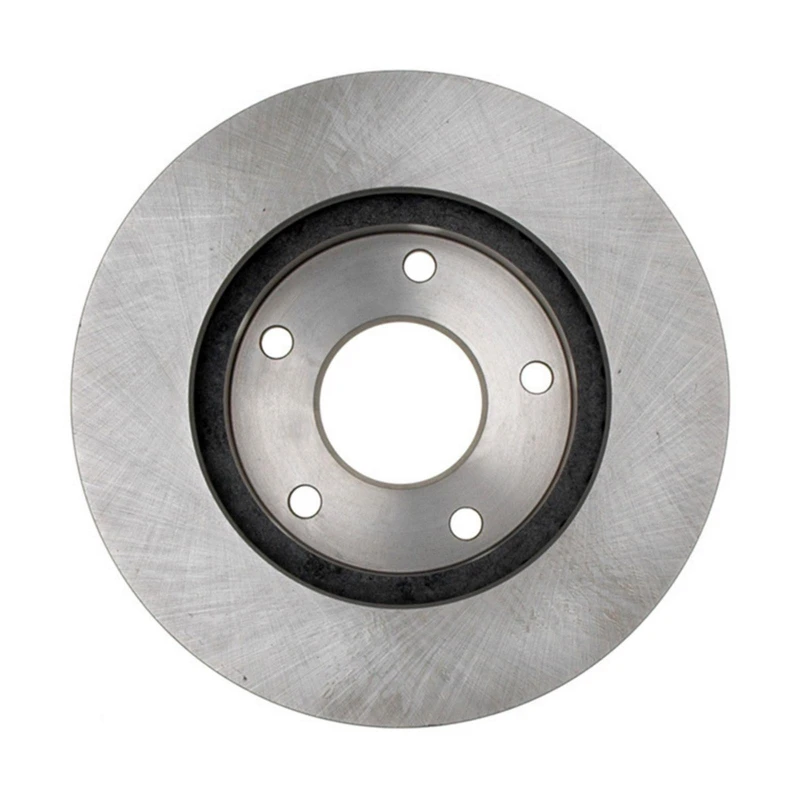

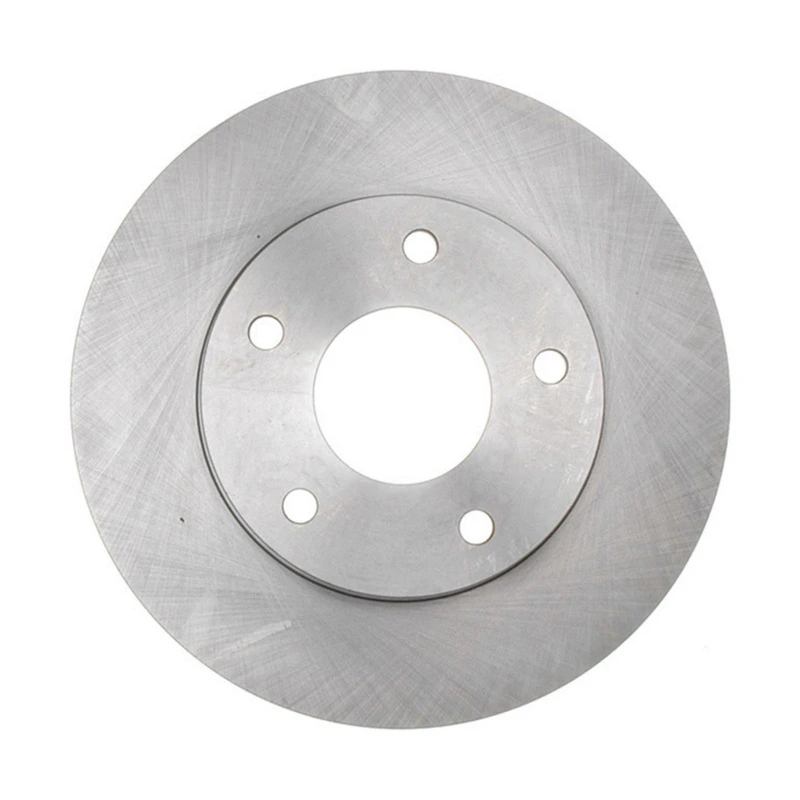

Raybestos 56694R Brake Rotor Front Side

Part # 56694R
Item # 1000RSE4
$64.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.79
Center Hole Diameter (mm)
70.85
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.083
Discard Thickness (mm)
27.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.75
Mounting Bolt Hole Circle Diameter (mm)
120.65
Mounting Bolt Hole Diameter (in)
0.495
Mounting Bolt Hole Diameter (mm)
12.55
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.14
Nominal Thickness (mm)
28.95
Outside Diameter (in)
10.82
Outside Diameter (mm)
274.85
Overall Height (in)
2.16
Overall Height (mm)
54.85
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55047, 5-5047 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
15733699 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, GMC, CHEVROLET, ISUZU
18060691 - GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
18060219 - GENERAL MOTORS, OEM PART NUMBER, GMC, CHEVROLET
12066038, 120.66038 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
BD125559 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
8157336990 - OEM PART NUMBER, GMC, ISUZU
2055047, 20-55047 - UAP, PROMAX, GEOTECH
672502 - VALEO, GREN
32066038, 320.66038 - STOPTECH, CENTRIC PARTS
55047DL - DURALAST, AUTOZONE
BR55047 - DURAGO, DURA CORP
6620978 - WINHERE, PERFECT STOP
25010540 - BOSCH, BRAKEBEST
125559 - PARTS MASTER, AUTOXTRA
YH145182 - CARQUEST, ADVANCE AUTO PARTS
56694 - RAYBESTOS BRAKES, BRAKEBEST
BR5504702, BR55047-02 - DURAGO, DURA CORP
AR8638 - POWERSTOP, AUTOSPECIALTY
AX55047 - AUTO EXTRA, AUTOXTRA
8944038, 89-44038 - DELTA, AMERICAN REMANUFACTURED
12566038CRY, 125.66038CRY - STOPTECH, CENTRIC PARTS
12866038L, 128.66038L - STOPTECH, CENTRIC PARTS
145182, 14-5182 - BENDIX, ADVANCE AUTO PARTS
12766038CR, 127.66038CR - STOPTECH, CENTRIC PARTS
12866038R, 128.66038R - STOPTECH, CENTRIC PARTS
12566038, 125.66038 - STOPTECH, CENTRIC PARTS
12766038CL, 127.66038CL - STOPTECH, CENTRIC PARTS
12666038SR, 126.66038SR - STOPTECH, CENTRIC PARTS
56694R - RAYBESTOS BRAKES, BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Chevrolet
GMC
Isuzu
Oldsmobile
1997 - 2005ChevroletBlazer
1998 - 2004ChevroletS10
1998 - 2004GMCSonoma
1998 - 2005GMCJimmy
1998 - 2000IsuzuHombre
1997 - 2001OldsmobileBravada
