Raybestos

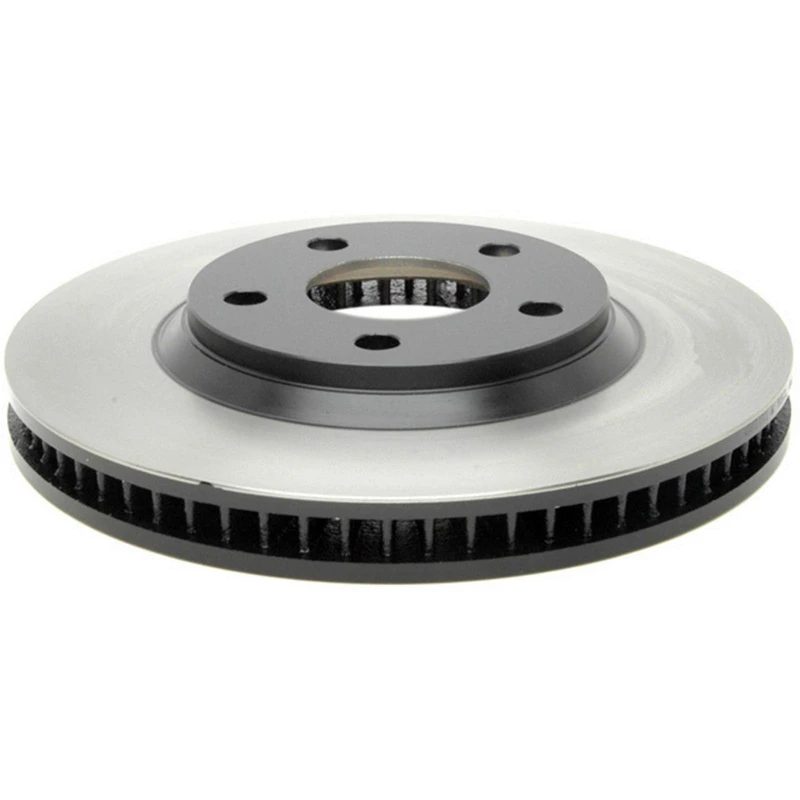

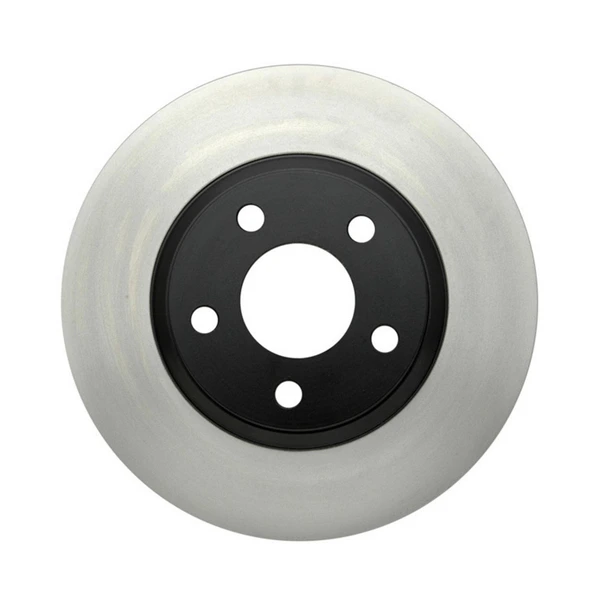

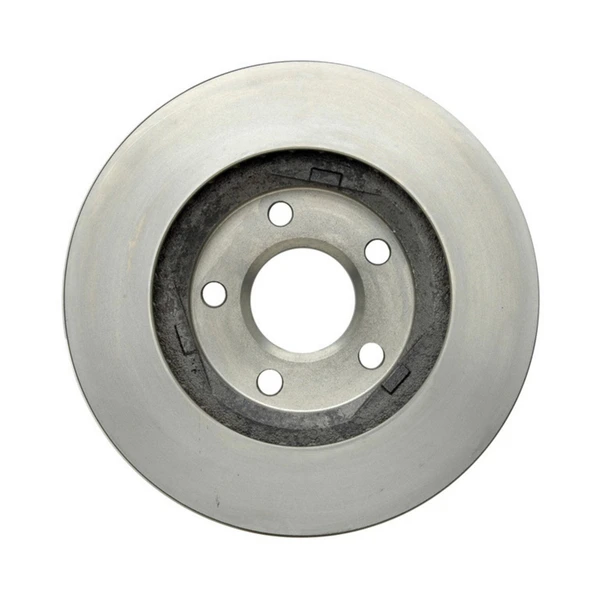

Raybestos 56641 Brake Rotor Front Side

Part # 56641
Item # 1000V08Z
$84.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.78
Center Hole Diameter (mm)
70.6
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.209
Discard Thickness (mm)
30.7
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.646
Mounting Bolt Hole Circle Diameter (mm)
118
Mounting Bolt Hole Diameter (in)
0.623
Mounting Bolt Hole Diameter (mm)
15.8
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.27
Nominal Thickness (mm)
32.25
Outside Diameter (in)
11.92
Outside Diameter (mm)
302.75
Overall Height (in)
2.04
Overall Height (mm)
51.8
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55034, 5-5034 - CARQUEST, DURALAST, PAGID RACING, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
19202731 - CADILLAC, GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET
55048, 5-5048 - CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
18021015 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET
55134, 5-5134 - EUROROTOR, NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM
56641 - DURA CORP, DURABRAKE, RAYBESTOS BRAKES, BRAKEBEST
18060640 - GENERAL MOTORS, OEM PART NUMBER, GMC
18060240 - GENERAL MOTORS, OEM PART NUMBER, GMC
2055034, 20-55034 - UAP, PROMAX, GEOTECH
18026591 - GENERAL MOTORS, OEM PART NUMBER, GMC
BD125618 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
145150 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS
12062055, 120.62055 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
140724996, 1407-24996 - AI CONVERTER, AUTOPAR, API
56641FZN - RAYBESTOS BRAKES, BRAKEBEST
493150 - TRUCKSTAR BY BUYERS, TRUSTAR
52125618, 52-125618 - GUARDIAN, WAGNER BRAKE
12662055CSL, 126.62055CSL - STOPTECH, CENTRIC PARTS
12662055SL, 126.62055SL - STOPTECH, CENTRIC PARTS
12662055SR, 126.62055SR - STOPTECH, CENTRIC PARTS
6620976 - WINHERE, PERFECT STOP
18060230 - GENERAL MOTORS, OEM PART NUMBER
12862055CR, 128.62055CR - STOPTECH, CENTRIC PARTS
56641R - RAYBESTOS BRAKES, BRAKEBEST
22762055L, 227.62055L - STOPTECH, CENTRIC PARTS
8936055, 89-36055 - DELTA, AMERICAN REMANUFACTURED
12862055CL, 128.62055CL - STOPTECH, CENTRIC PARTS
22862055DL, 228.62055DL - STOPTECH, CENTRIC PARTS
12062055CRY, 120.62055CRY - STOPTECH, CENTRIC PARTS
YH145150 - CARQUEST, ADVANCE AUTO PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (22)vehicles
All
Buick
Cadillac
Chevrolet
Oldsmobile
Pontiac
2005 - 2005CadillacDeVille
1997 - 2004BuickPark Avenue
1997 - 1999OldsmobileAurora
2000 - 2004BuickLeSabre
1997 - 2002CadillacEldorado
1998 - 2002ChevroletCamaro
1998 - 1999OldsmobileIntrigue
2005 - 2005PontiacBonneville
1998 - 2002PontiacFirebird
2001 - 2003OldsmobileAurora
2005 - 2005ChevroletMonte Carlo
2000 - 2004PontiacBonneville
2004 - 2004CadillacSeville
2005 - 2005ChevroletImpala
1997 - 1999CadillacDeVille
2000 - 2004ChevroletImpala
2000 - 2003PontiacBonneville
2000 - 2004CadillacDeVille
1997 - 1998BuickRiviera
2000 - 2004ChevroletMonte Carlo
