Raybestos

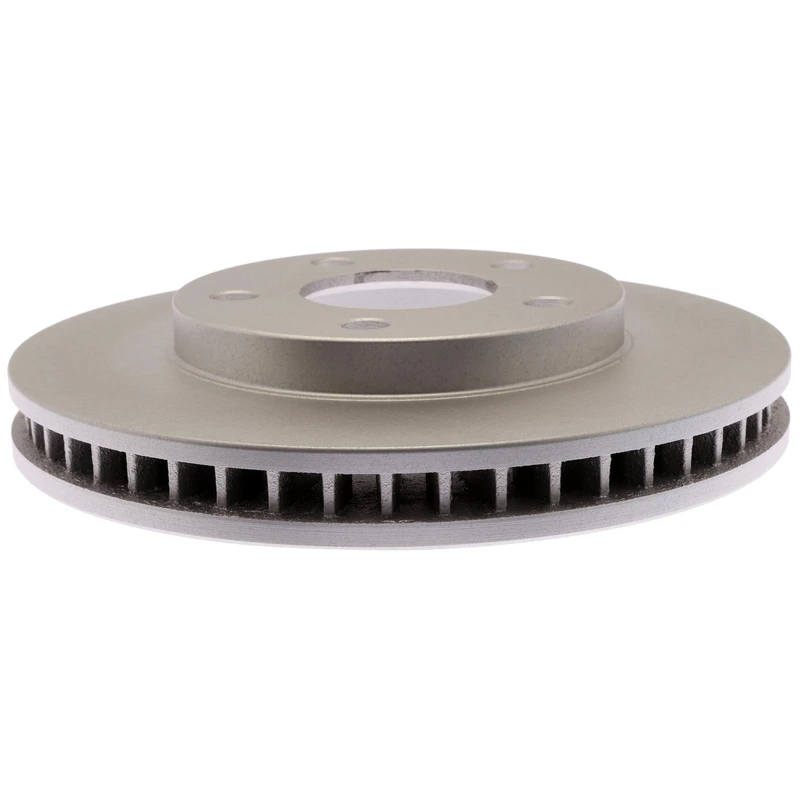

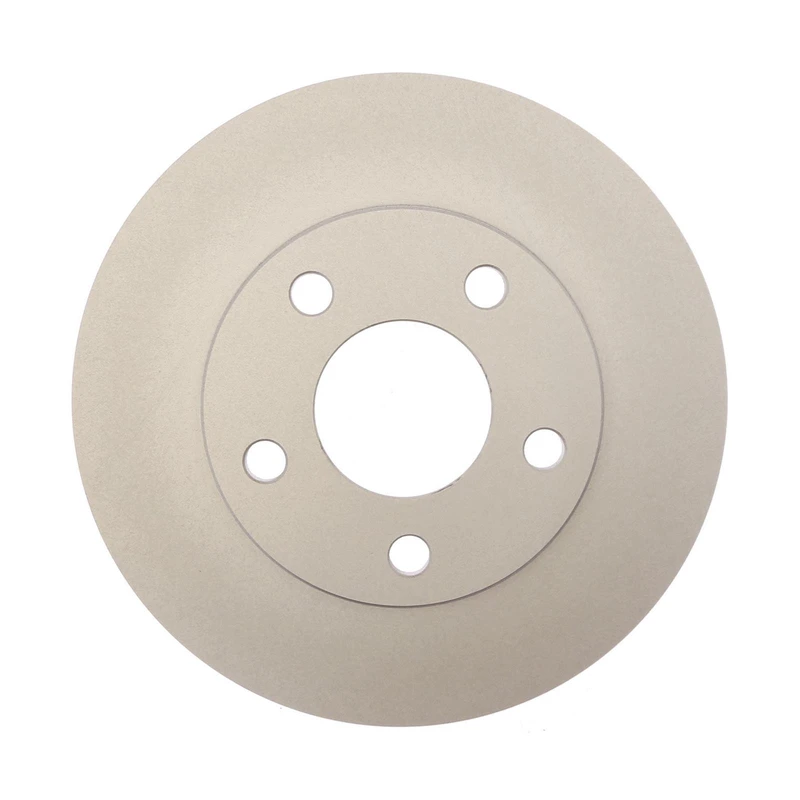

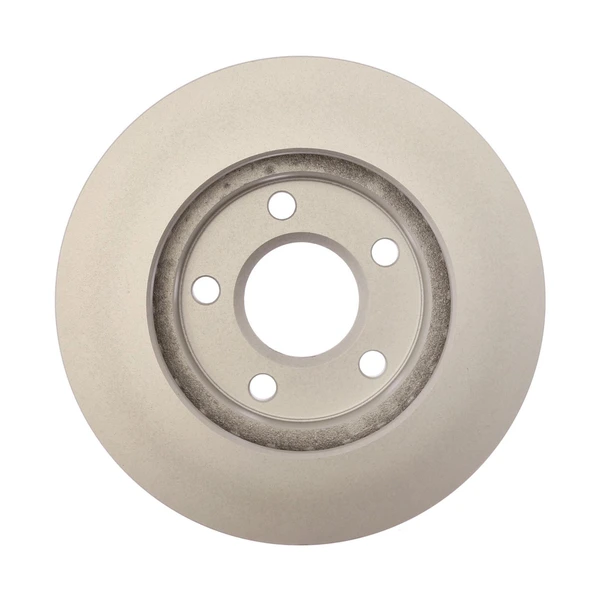

Raybestos 56631FZN Brake Rotor Front Side

Part # 56631FZN
Item # 1000V5A9
$61.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.78
Center Hole Diameter (mm)
70.6
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.208
Discard Thickness (mm)
30.7
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.646
Mounting Bolt Hole Circle Diameter (mm)
118
Mounting Bolt Hole Diameter (in)
0.636
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.27
Nominal Thickness (mm)
32.25
Outside Diameter (in)
10.94
Outside Diameter (mm)
277.9
Overall Height (in)
2.05
Overall Height (mm)
52.05
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55036, 5-5036 - DURALAST, PAGID RACING, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
55112, 5-5112 - DURALAST, EUROROTOR, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS, ULTRA BRAKE
18021359 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET, OPEL
18060233 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET, OPEL
145250 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS
2055036, 20-55036 - UAP, PROMAX, GEOTECH
BD125507 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
19175049 - GENERAL MOTORS, OEM PART NUMBER, GMC
12062057, 120.62057 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12862057L, 128.62057L - STOPTECH, CENTRIC PARTS
12562057CRY, 125.62057CRY - STOPTECH, CENTRIC PARTS
25666 - BREMBO, AUTOPAR
12662057SL, 126.62057SL - STOPTECH, CENTRIC PARTS
6620018 - WINHERE, PERFECT STOP
177833, 177-833 - DELCOREMY, ACDELCO
12862057R, 128.62057R - STOPTECH, CENTRIC PARTS
12862057CR, 128.62057CR - STOPTECH, CENTRIC PARTS
12862057CL, 128.62057CL - STOPTECH, CENTRIC PARTS
8936057, 89-36057 - DELTA, AMERICAN REMANUFACTURED
52125507, 52-125507 - GUARDIAN, WAGNER BRAKE
12762057L, 127.62057L - STOPTECH, CENTRIC PARTS
12662057SR, 126.62057SR - STOPTECH, CENTRIC PARTS
56631RGS - RAYBESTOS BRAKES, BRAKEBEST
12662057CSR, 126.62057CSR - STOPTECH, CENTRIC PARTS
12762057R, 127.62057R - STOPTECH, CENTRIC PARTS
493130 - TRUCKSTAR BY BUYERS, AUTOPAR
125507 - PARTS MASTER, AUTOXTRA
AX55036 - AUTO EXTRA, AUTOXTRA
CW32110 - ATE, CONTINENTAL
AR8257 - POWERSTOP, AUTOSPECIALTY

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (18)vehicles
All
Buick
Chevrolet
Oldsmobile
Pontiac
1997 - 1999PontiacTrans Sport
1997 - 2004OldsmobileSilhouette
1998 - 1998OldsmobileRegency
1998 - 1999BuickLeSabre
2000 - 2005PontiacBonneville
1997 - 2003PontiacGrand Prix
2000 - 2002OldsmobileIntrigue
2000 - 2005BuickLeSabre
1998 - 1999OldsmobileIntrigue
1997 - 2005ChevroletVenture
1997 - 2005BuickCentury
2005 - 2005PontiacMontana
1998 - 1999PontiacBonneville
1999 - 1999BuickRiviera
1999 - 2004PontiacMontana
1998 - 1999Oldsmobile88
1997 - 2004BuickRegal
1998 - 1999OldsmobileLSS
