Raybestos

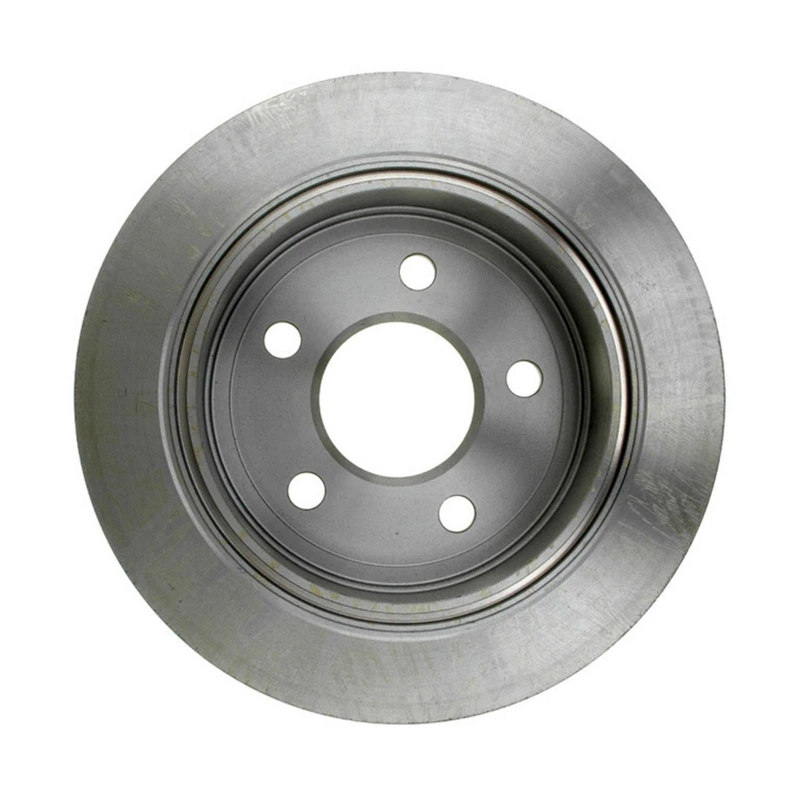

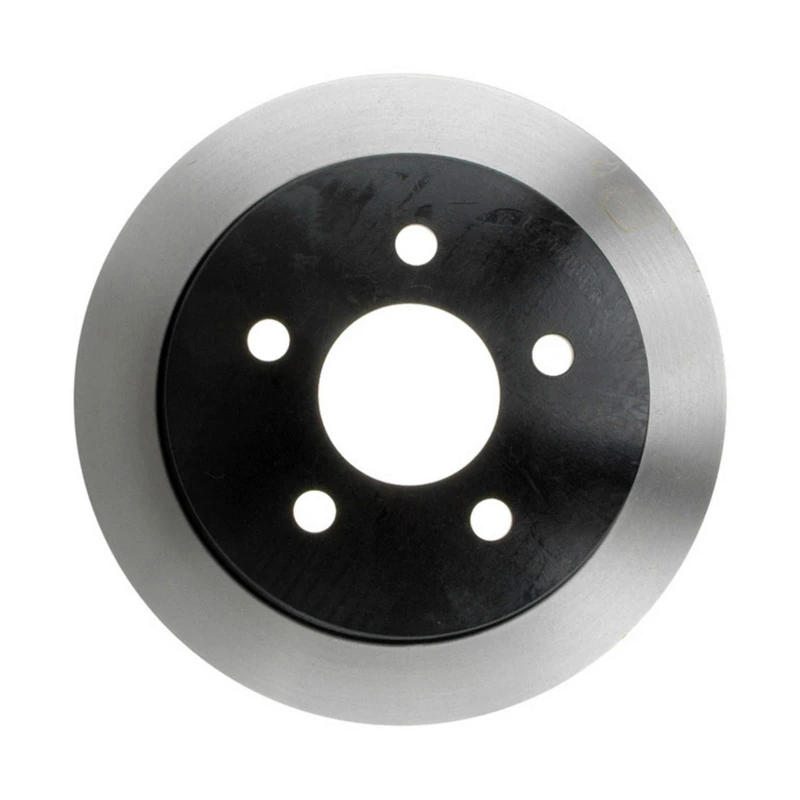

Raybestos 56629 Brake Rotor Rear Side

Part # 56629
Item # 1000V1ER
$64.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.78
Center Hole Diameter (mm)
70.6
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.354
Discard Thickness (mm)
9
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.646
Mounting Bolt Hole Circle Diameter (mm)
118
Mounting Bolt Hole Diameter (in)
0.636
Mounting Bolt Hole Diameter (mm)
16.15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.435
Nominal Thickness (mm)
11.05
Outside Diameter (in)
10.94
Outside Diameter (mm)
277.9
Overall Height (in)
1.98
Overall Height (mm)
50.3
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
55039, 5-5039 - CARQUEST, PAGID RACING, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
19303830 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
55145, 5-5145 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, ULTRA BRAKE
55114, 5-5114 - EUROROTOR, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
140725660, 1407-25660 - AI CONVERTER, AUTOPAR, API
2055039, 20-55039 - UAP, PROMAX, GEOTECH
18021354 - GENERAL MOTORS, OEM PART NUMBER, GMC
18060232 - GENERAL MOTORS, OEM PART NUMBER, GMC
BD125506 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12062058, 120.62058 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
145155 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS
22762058L, 227.62058L - STOPTECH, CENTRIC PARTS
493030 - TRUCKSTAR BY BUYERS, TRUSTAR
56629FZN - RAYBESTOS BRAKES, BRAKEBEST
56629R - RAYBESTOS BRAKES, BRAKEBEST
177831, 177-831 - DELCOREMY, ACDELCO
22762058R, 227.62058R - STOPTECH, CENTRIC PARTS
8936058, 89-36058 - DELTA, AMERICAN REMANUFACTURED
12762058CL, 127.62058CL - STOPTECH, CENTRIC PARTS
52125506, 52-125506 - GUARDIAN, WAGNER BRAKE
55039DL - DURALAST, AUTOZONE
12562058CRY, 125.62058CRY - STOPTECH, CENTRIC PARTS
125506, 1255-06 - PARTS MASTER, AUTOXTRA
YH145155 - CARQUEST, ADVANCE AUTO PARTS
BR5503902, BR55039-02 - DURAGO, DURA CORP
56629 - RAYBESTOS BRAKES, BRAKEBEST
08846310, 08 8463 10, 08.8463.10 - BREMBO, IMC
YH145155C - CARQUEST, ADVANCE AUTO PARTS
AX55039 - AUTO EXTRA, AUTOXTRA
CW11133 - ATE, CONTINENTAL

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Buick
Chevrolet
Oldsmobile
Pontiac
1998 - 2002OldsmobileIntrigue
1999 - 2001PontiacMontana
1997 - 2004BuickRegal
1999 - 2005PontiacGrand Am
2000 - 2005ChevroletMonte Carlo
1997 - 1999PontiacTrans Sport
1997 - 2005BuickCentury
1997 - 2003PontiacGrand Prix
1998 - 2005ChevroletVenture
2000 - 2005ChevroletImpala
1999 - 1999BuickRiviera
1999 - 2004OldsmobileAlero
