Raybestos

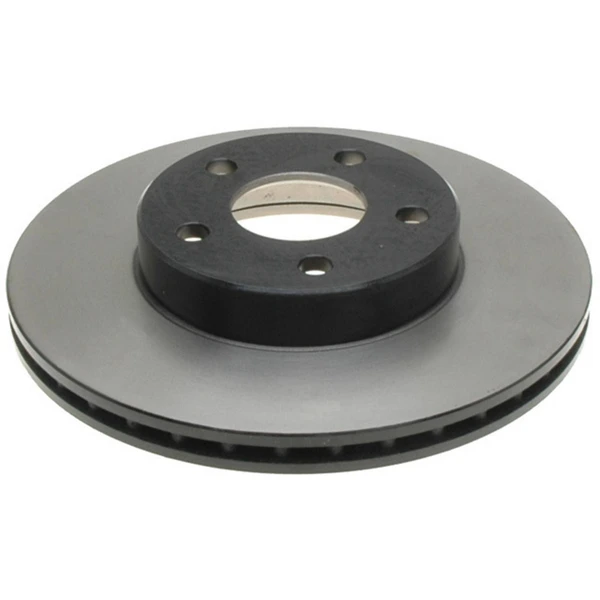

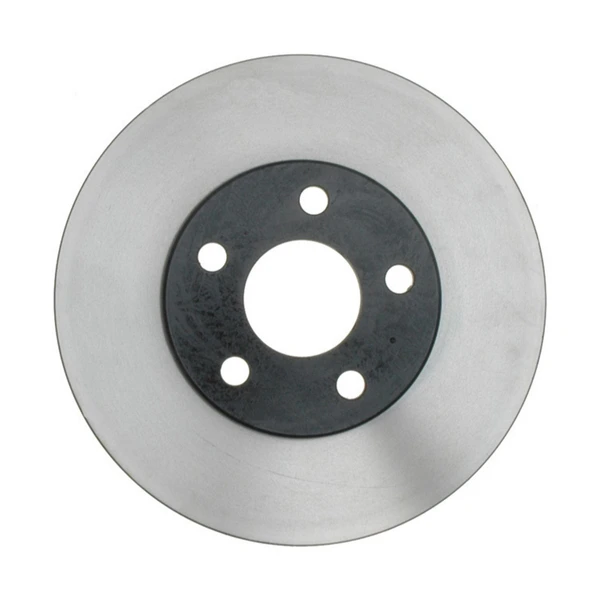

Raybestos 56140 Brake Rotor Front Side

Part # 56140
Item # 1000V4TC
$53.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.3
Center Hole Diameter (mm)
58.4
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.736
Discard Thickness (mm)
18.7
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.93
Mounting Bolt Hole Circle Diameter (mm)
99.8
Mounting Bolt Hole Diameter (in)
0.552
Mounting Bolt Hole Diameter (mm)
14
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.8
Nominal Thickness (mm)
20.3
Outside Diameter (in)
10.2
Outside Diameter (mm)
259.1
Overall Height (in)
1.885
Overall Height (mm)
47.9
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
5580, 558.0 - EUROROTOR, ROCKHILL, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, PILENGA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
18016200 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET
18023034 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET
18022417 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, PONTIAC, BUICK, GMC, CHEVROLET
18022416 - GENERAL MOTORS, OEM PART NUMBER, CASTING NUMBERS, GMC
R93670, R93 670 - TRUCKSTAR BY BUYERS, QUALITEE INTERNATIONAL, TRUSTAR
12062034, 120.62034 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
18060237 - GENERAL MOTORS, OEM PART NUMBER, GMC
BD125128 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
125128 - PARTS MASTER, FADE FREE, AUTOXTRA
18021368 - GENERAL MOTORS, OEM PART NUMBER, GMC
22762034L, 227.62034L - STOPTECH, CENTRIC PARTS
AR8234 - POWERSTOP, AUTOSPECIALTY
CW20701 - ATE, CONTINENTAL
32062034, 320.62034 - STOPTECH, CENTRIC PARTS
662181 - WINHERE, PERFECT STOP
12662034SL, 126.62034SL - STOPTECH, CENTRIC PARTS
AX5580 - AUTO EXTRA, AUTOXTRA
682502, 6 82 502 - GREN, RAYBESTOS BRAKES
12662034SR, 126.62034SR - STOPTECH, CENTRIC PARTS
09748580, 09 7485 80, 09.7485.80 - BREMBO, IMC
22762034R, 227.62034R - STOPTECH, CENTRIC PARTS
55801, 5-5801 - PAGID RACING, CASTING NUMBERS
12162034, 121.62034 - CENTRIC PARTS, CTEK
12862034CR, 128.62034CR - STOPTECH, CENTRIC PARTS
5078 - CENTURY, SEBRO
56140R - RAYBESTOS BRAKES, BRAKEBEST
BR558002, BR5580-02 - DURAGO, DURA CORP
145580, 14-5580 - BENDIX, PROMAX
56140, 56-140 - RAYBESTOS BRAKES, BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Buick
Chevrolet
Oldsmobile
Pontiac
1992 - 1996ChevroletBeretta
1991 - 1998BuickSkylark
1995 - 2005PontiacSunfire
1990 - 1990PontiacGrand Am
1991 - 1991OldsmobileCutlass Calais
1990 - 1990OldsmobileCutlass Calais
1992 - 2005ChevroletCavalier
1992 - 1996ChevroletCorsica
1990 - 1990BuickSkylark
1992 - 1994PontiacSunbird
1991 - 1998PontiacGrand Am
1992 - 1998OldsmobileAchieva
