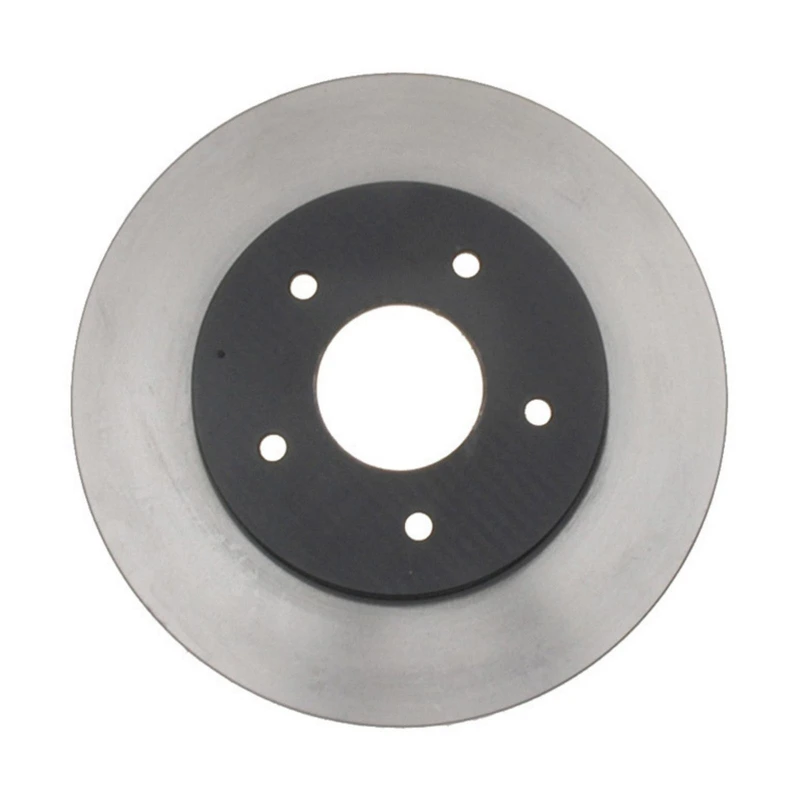

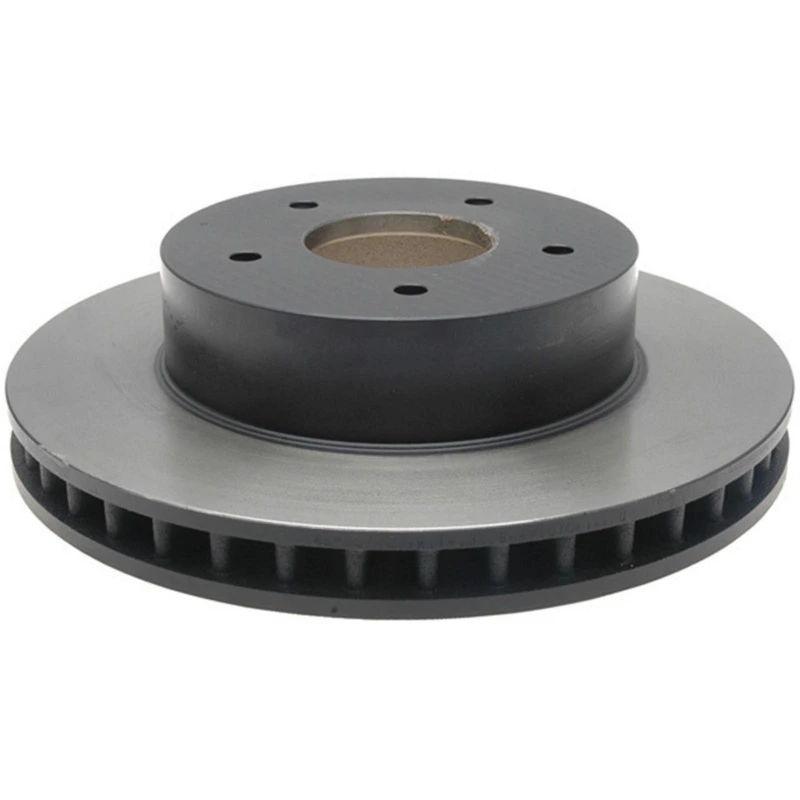

Raybestos 5500 Brake Rotor Front Side
Part # 5500
Item # 1000V1QN
$80.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.814
- Center Hole Diameter (mm)
- 71.5
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 1.215
- Discard Thickness (mm)
- 30.85
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.75
- Mounting Bolt Hole Circle Diameter (mm)
- 120.65
- Mounting Bolt Hole Diameter (in)
- 0.45
- Mounting Bolt Hole Diameter (mm)
- 11.45
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.26
- Nominal Thickness (mm)
- 32
- Outside Diameter (in)
- 11.75
- Outside Diameter (mm)
- 298.45
- Overall Height (in)
- 3.08
- Overall Height (mm)
- 78.25
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
5544 - EUROROTOR, ROCKHILL, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, PILENGA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
5070 - MCI, CENTURY, SEBRO, RAYBESTOS BRAKES, BRAKEBEST
3998278 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
3991024 - GENERAL MOTORS, OEM PART NUMBER, CHEVROLET
12662010CSR, 126.62010CSR - STOPTECH, CENTRIC PARTS
25140, 25-140, 2-5140 - BREMBO, AUTOPAR
22762010R, 227.62010R - STOPTECH, CENTRIC PARTS
22762010L, 227.62010L - STOPTECH, CENTRIC PARTS
12762010CR, 127.62010CR - STOPTECH, CENTRIC PARTS
12662010CSL, 126.62010CSL - STOPTECH, CENTRIC PARTS
12762010CL, 127.62010CL - STOPTECH, CENTRIC PARTS
5500R - RAYBESTOS BRAKES, BRAKEBEST
141212, 141-212, 14-1212 - BENDIX, ADVANCE AUTO PARTS
5500, 550.0, 5-500 - RAYBESTOS BRAKES, BRAKEBEST
60240, 60-240 - PARTS MASTER, AUTOXTRA
5260240, 52-60240 - GUARDIAN, WAGNER BRAKE
AR8210 - POWERSTOP, AUTOSPECIALTY
BD60240 - WAGNER BRAKE, BRAKEBEST
12762010L, 127.62010L - STOPTECH, CENTRIC PARTS
BR5544 - DURAGO, DURA CORP
12562010, 125.62010 - STOPTECH, CENTRIC PARTS
12062010, 120.62010 - STOPTECH, CENTRIC PARTS
12762010R, 127.62010R - STOPTECH, CENTRIC PARTS
12662010SR, 126.62010SR - STOPTECH, CENTRIC PARTS
12162010, 121.62010 - CENTRIC PARTS, CTEK
12662010SL, 126.62010SL - STOPTECH, CENTRIC PARTS
R93840 - QUALITEE INTERNATIONAL, TRUSTAR
YH141212 - CARQUEST, ADVANCE AUTO PARTS
177649, 177-649 - DELCOREMY, ACDELCO
22862010DL, 228.62010DL - STOPTECH, CENTRIC PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Chevrolet
| 1963 - 1982 | Chevrolet | Corvette |
