Raybestos

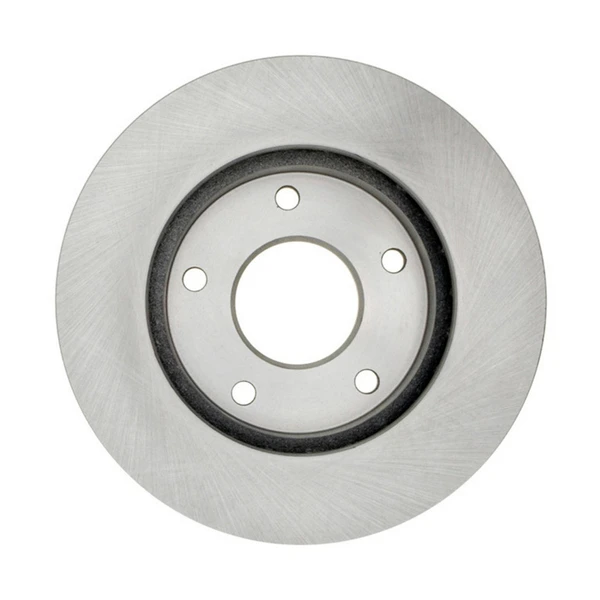

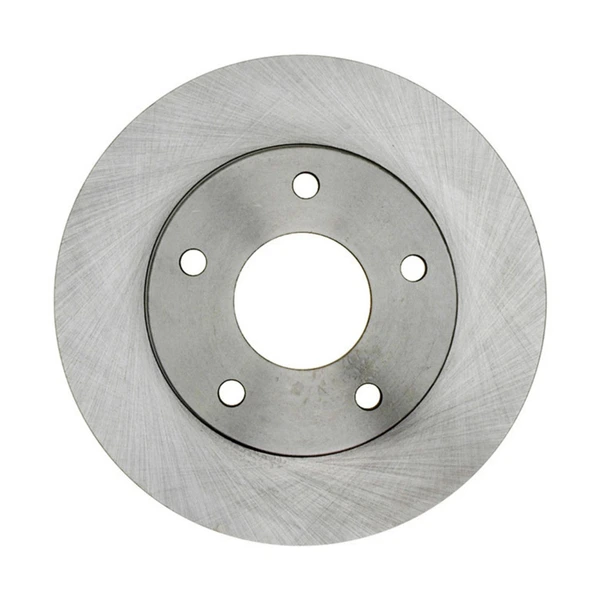

Raybestos 5036R Brake Rotor

Part # 5036R
Item # 1001834U
$65.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.79
Center Hole Diameter (mm)
70.85
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.957
Discard Thickness (mm)
24.3
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.75
Mounting Bolt Hole Circle Diameter (mm)
120.65
Mounting Bolt Hole Diameter (in)
0.511
Mounting Bolt Hole Diameter (mm)
13
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.035
Nominal Thickness (mm)
26.3
Outside Diameter (in)
10.5
Outside Diameter (mm)
266.7
Overall Height (in)
2.05
Overall Height (mm)
52.05
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
5550, 555.0 - EUROROTOR, ROCKHILL, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
14056179 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, BUICK, CHEVROLET
1613287 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, BUICK, CHEVROLET
15684318 - GENERAL MOTORS, OLDSMOBILE, OEM PART NUMBER, BUICK, CHEVROLET
5036 - CASTING NUMBERS, CENTURY, RAYBESTOS BRAKES, BRAKEBEST
12066006, 120.66006 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
141261, 14-1261, 141-261 - BENDIX, ADVANCE AUTO PARTS, PRAEFKE
BD102075 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12166006, 121.66006 - CENTRIC PARTS, CTEK
BR555002, BR5550-02 - DURAGO, DURA CORP
YH141261 - CARQUEST, ADVANCE AUTO PARTS
12666006CSL, 126.66006CSL - STOPTECH, CENTRIC PARTS
12666006CSR, 126.66006CSR - STOPTECH, CENTRIC PARTS
12666006SL, 126.66006SL - STOPTECH, CENTRIC PARTS
AX5550 - AUTO EXTRA, AUTOXTRA
32066006, 320.66006 - STOPTECH, CENTRIC PARTS
12866006L, 128.66006L - STOPTECH, CENTRIC PARTS
R93660, R93 660 - QUALITEE INTERNATIONAL, TRUSTAR
25010550 - BOSCH, BRAKEBEST
12866006R, 128.66006R - STOPTECH, CENTRIC PARTS
BR5550 - DURAGO, DURA CORP
5028, 50-28 - MCI, RAYBESTOS BRAKES
5036RGS - RAYBESTOS BRAKES, BRAKEBEST
AR8606 - POWERSTOP, AUTOSPECIALTY
78944006, 789-44006 - DELTA, AMERICAN REMANUFACTURED
22766006L, 227.66006L - STOPTECH, CENTRIC PARTS
145550, 14-5550 - BENDIX, PROMAX
12866006CR, 128.66006CR - STOPTECH, CENTRIC PARTS
12766006CR, 127.66006CR - STOPTECH, CENTRIC PARTS
55501, 5-5501 - CASTING NUMBERS, ULTRA BRAKE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (15)vehicles
All
Buick
Cadillac
Chevrolet
GMC
Oldsmobile
1979 - 1985BuickRiviera
1979 - 1985CadillacEldorado
1980 - 1985CadillacSeville
1983 - 1994ChevroletS10 Blazer
1983 - 1997ChevroletS10
1995 - 1996ChevroletBlazer
1983 - 1990GMCS15
1983 - 1991GMCS15 Jimmy
1991 - 1991GMCSyclone
1991 - 1997GMCSonoma
1992 - 1993GMCTyphoon
1992 - 1997GMCJimmy
1979 - 1985OldsmobileToronado
1991 - 1994OldsmobileBravada
1996 - 1996OldsmobileBravada
