Monroe

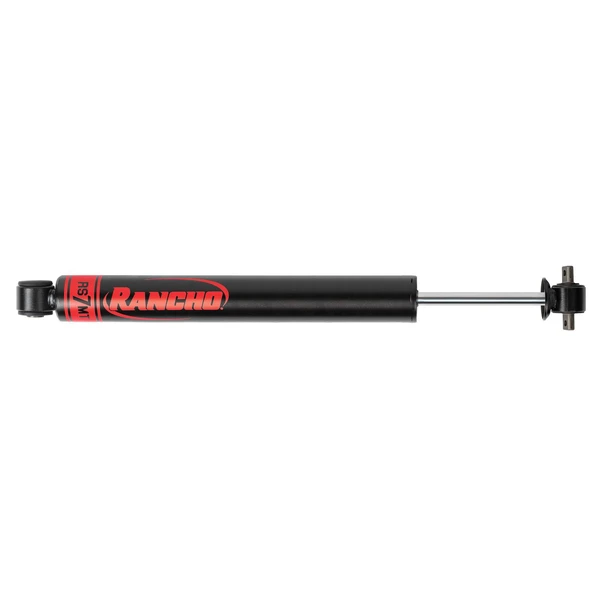

Monroe RS77330 Suspension Shock Absorber, Rear Side

Part # RS77330
Item # 1001QV1H
$90.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Quantity
1
Installation Position
Rear Side
Brand
Monroe
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Color
Black
Active or Passive Suspension
Passive
Adjustable Compression
No
Adjustable Damping
No
Adjustable Rebound
No
Adjustable Ride Height
No
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Bladder Heavy Duty Crimping Rings Included
No
Bladder Included
No
Bladder Sleeve Included
No
Body Color
Black
Body Diameter (in)
1.97
Body Diameter (mm)
50
Body Material
Steel
Boot Included
No
Coil Over Springs Included
No
Coil Spring Insulator Included
No
Compressed Length (in)
17.52
Compressed Length (mm)
445
Cylinder Color
Black
Cylinder Finish
Painted
Cylinder Material
Steel
Cylinder Outside Diameter (in)
1.97
Cylinder Outside Diameter (mm)
50
Dust Shield Included
No
Extended Length (in)
27.04
Extended Length (mm)
686.8
Finish
Painted
Gas Charged
Yes
Hydraulic Lockout
No
Includes Bump Stop
No
Internal Construction Type
Single Tube
Internal Rebound Bumper
Yes
Lower Mount Code
LS38
Lower Mount Type
Loop Bushing and Sleeve Mount
Mounting Hardware Included
No
Remote Reservoir
No
Rod Diameter (in)
0.55
Rod Diameter (mm)
14
Self-Leveling
No
Shaft Material
Chromed
Shock Absorber Bore Size (in)
1.81
Shock Absorber Bore Size (mm)
46
Shock Stroke (in)
9.5
Shock Stroke (mm)
241.3
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Strut Mount Insulator Included
No
Travel Length (in)
9.5
Travel Length (mm)
241.3
Type
Telescopic
Upper Mount Code
XP12
Upper Mount Type
Cross Pin Mount
Valving Type
Progressive
Show all
Note
Shock Absorber Rod End Measuring Point: Center of Loop, Shock Absorber Body End Measuring Point: Center of Cross Pin.

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
RS77330
98024888
M9567

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Jeep
2007 - 2017JeepWrangler
2018 - 2018JeepWrangler JK
