Monroe

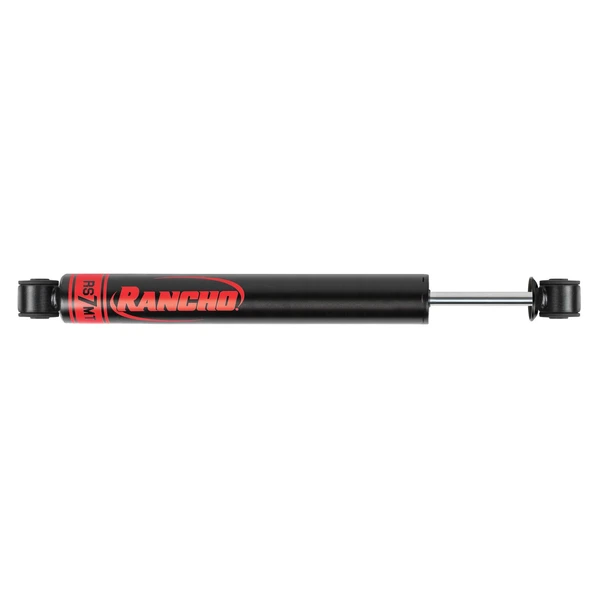

Monroe RS77198 Suspension Shock Absorber, Rear Side

Part # RS77198
Item # 1001QWXP
$90.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Quantity
1
Installation Position
Rear Side
Brand
Monroe
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Color
Black
Active or Passive Suspension
Passive
Adjustable Compression
No
Adjustable Damping
No
Adjustable Rebound
No
Adjustable Ride Height
No
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Bladder Heavy Duty Crimping Rings Included
No
Bladder Included
No
Bladder Sleeve Included
No
Body Color
Black
Body Diameter (in)
1.97
Body Diameter (mm)
50
Body Material
Steel
Boot Included
No
Coil Over Springs Included
No
Coil Spring Insulator Included
No
Compressed Length (in)
16.43
Compressed Length (mm)
417.3
Cylinder Color
Black
Cylinder Finish
Painted
Cylinder Material
Steel
Cylinder Outside Diameter (in)
1.97
Cylinder Outside Diameter (mm)
50
Dust Shield Included
No
Extended Length (in)
25.2
Extended Length (mm)
640.1
Finish
Painted
Gas Charged
Yes
Hydraulic Lockout
No
Includes Bump Stop
No
Internal Construction Type
Single Tube
Internal Rebound Bumper
Yes
Lower Mount Code
LS92
Mounting Hardware Included
No
Remote Reservoir
No
Rod Diameter (in)
0.55
Rod Diameter (mm)
14
Self-Leveling
No
Shaft Material
Chromed
Shock Absorber Bore Size (in)
1.81
Shock Absorber Bore Size (mm)
46
Shock Stroke (in)
8.77
Shock Stroke (mm)
222.8
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Strut Mount Insulator Included
No
Travel Length (in)
8.77
Travel Length (mm)
222.8
Type
Telescopic
Upper Mount Code
LS92
Valving Type
Progressive
Show all
Note
Shock Absorber Rod End Measuring Point: Center of Loop, Shock Absorber Body End Measuring Point: Center of Loop.

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
RS77198
24293464
5601074
84657764
84458380
84805972
84805968
84546762
555055
84514294
84657762
77412
98024660
84482163
911533
84805974
84171402
RS7198
84448057
24238298
84805970
84514295
84458382
565128
84535472
24186841
84458378
84171408
84805971
M9527

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (101)vehicles
All
Chevrolet
Dodge
GMC
1999 - 2006ChevroletSilverado 1500
2007 - 2007ChevroletSilverado 1500 Classic
2007 - 2013ChevroletSilverado 1500
2014 - 2018ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500
2019 - 2019ChevroletSilverado 1500 LD
