Monroe

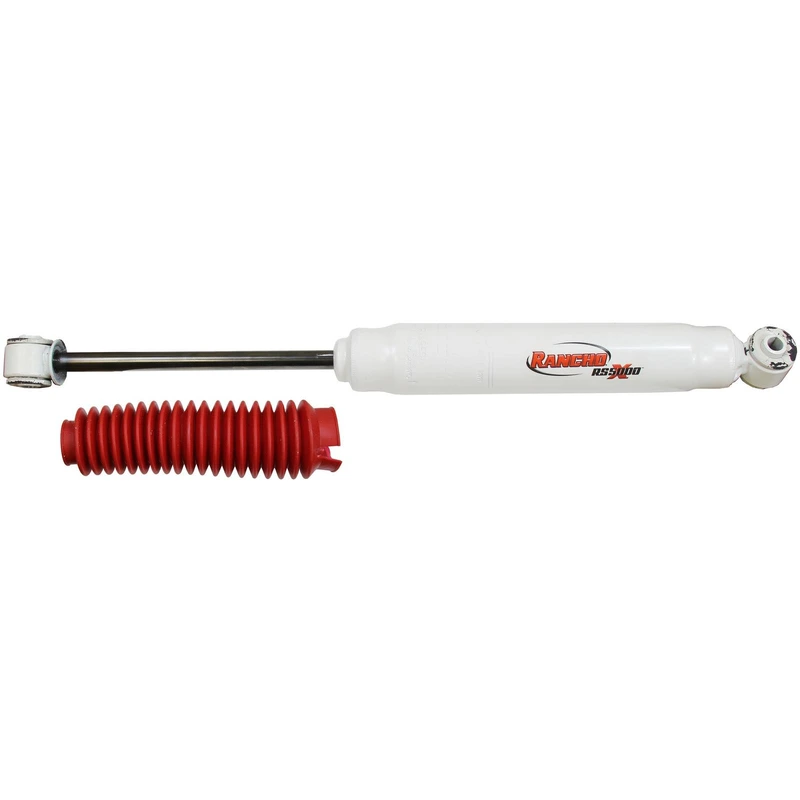

Monroe RS55315 Suspension Shock Absorber, Rear Side

Part # RS55315
Item # 1001QU3H
$88.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Quantity
1
Installation Position
Rear Side
Brand
Monroe
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Color
White
Active or Passive Suspension
Passive
Adjustable Compression
No
Adjustable Damping
No
Adjustable Rebound
No
Adjustable Ride Height
No
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Bladder Heavy Duty Crimping Rings Included
No
Bladder Included
No
Bladder Sleeve Included
No
Body Color
White
Body Diameter (in)
2.25
Body Diameter (mm)
57.2
Body Material
Steel
Boot Included
Yes
Coil Over Springs Included
No
Coil Spring Insulator Included
No
Compressed Length (in)
14.93
Compressed Length (mm)
379.2
Cylinder Color
White
Cylinder Finish
Painted
Cylinder Material
Steel
Cylinder Outside Diameter (in)
2.25
Cylinder Outside Diameter (mm)
57.2
Dust Shield Diameter (in)
2.99
Dust Shield Diameter (mm)
75.95
Dust Shield Included
Yes
Dust Shield Material
Rubber
Extended Length (in)
24.13
Extended Length (mm)
612.9
Finish
Painted
Gas Charged
Yes
Hydraulic Lockout
No
Includes Bump Stop
No
Internal Construction Type
Twin Tube
Internal Rebound Bumper
Yes
Lower Mount Code
LS28
Mounting Hardware Included
No
Remote Reservoir
No
Rod Diameter (in)
0.62
Rod Diameter (mm)
15.8
Self-Leveling
No
Shaft Material
Nitrocarburized
Shock Absorber Bore Size (in)
1.38
Shock Absorber Bore Size (mm)
35
Shock Stroke (in)
9.2
Shock Stroke (mm)
233.7
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Strut Mount Insulator Included
No
Travel Length (in)
9.2
Travel Length (mm)
233.7
Type
Telescopic
Upper Mount Code
LS28
Valving Type
Progressive
Show all
Note
Shock Absorber Rod End Measuring Point: Center of Loop, Shock Absorber Body End Measuring Point: Center of Loop.

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
68056331AA - MITSUBISHI, DODGE, RAM TRUCKS, MOPAR, RAM
911277 - NAPA, MONROE
342494 - FOCUS AUTO PARTS, FCS
G63890 - GABRIEL
RS55315 - RANCHO
RS5315 - RANCHO
G63891 - GABRIEL
256400 - UNITY AUTOMOTIVE
12140167, 1214-0167 - SENSEN
KG54321 - KYB

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Dodge
Mitsubishi
Ram
2005 - 2010DodgeDakota
2006 - 2009MitsubishiRaider
2011 - 2011RamDakota
