Monroe

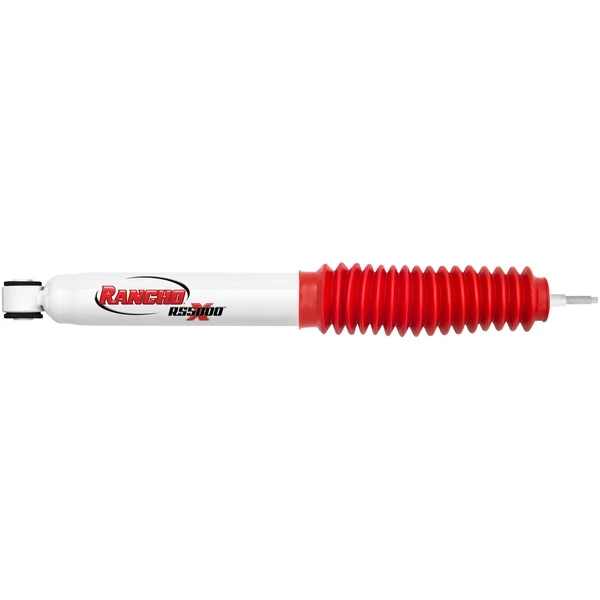

Monroe RS55128 Suspension Shock Absorber, Front Side

Part # RS55128
Item # 1001QX2V
$85.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Quantity
1
Installation Position
Front Side
Brand
Monroe
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Color
White
Active or Passive Suspension
Passive
Adjustable Compression
No
Adjustable Damping
No
Adjustable Rebound
No
Adjustable Ride Height
No
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Bladder Heavy Duty Crimping Rings Included
No
Bladder Included
No
Bladder Sleeve Included
No
Body Color
White
Body Diameter (in)
2.25
Body Diameter (mm)
57.2
Body Material
Steel
Boot Included
Yes
Coil Over Springs Included
No
Coil Spring Insulator Included
No
Compressed Length (in)
13.05
Compressed Length (mm)
331.5
Cylinder Color
White
Cylinder Finish
Painted
Cylinder Material
Steel
Cylinder Outside Diameter (in)
2.25
Cylinder Outside Diameter (mm)
57.2
Dust Shield Diameter (in)
2.99
Dust Shield Diameter (mm)
75.9
Dust Shield Included
Yes
Dust Shield Material
Rubber
Extended Length (in)
21.03
Extended Length (mm)
534.2
Finish
Painted
Gas Charged
Yes
Hydraulic Lockout
No
Includes Bump Stop
No
Internal Construction Type
Twin Tube
Internal Rebound Bumper
Yes
Lower Mount Code
XP5
Lower Mount Type
Cross Pin Mount
Mounting Hardware Included
Yes
Remote Reservoir
No
Rod Diameter (in)
0.62
Rod Diameter (mm)
15.8
Self-Leveling
No
Shaft Material
Nitrocarburized
Shock Absorber Bore Size (in)
1.38
Shock Absorber Bore Size (mm)
35
Shock Stroke (in)
7.98
Shock Stroke (mm)
202.7
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Strut Mount Insulator Included
No
Travel Length (in)
7.98
Travel Length (mm)
202.7
Type
Telescopic
Upper Mount Code
S4
Upper Mount Type
Stem Mount
Valving Type
Progressive
Show all
Note
Shock Absorber Rod End Measuring Point: Center of Cross Pin, Shock Absorber Body End Measuring Point: Base of Stem.

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
RS55128
RS5128
565053
565020
TS3432031B
37161
37026
344435
344088
TS3431861B
N8016
911161
G63424
37081
G63721
12130315
341627
813033
37083
12140218
MS3431861B

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (16)vehicles
All
Chevrolet
GMC
Jeep
1988 - 1998ChevroletC2500
1988 - 1999ChevroletC1500
1992 - 1999ChevroletC1500 Suburban
1992 - 1999ChevroletC2500 Suburban
1995 - 1999ChevroletTahoe
2000 - 2000ChevroletTahoe
1988 - 1998GMCC2500
1992 - 1999GMCC1500 Suburban
1992 - 1999GMCC2500 Suburban
1992 - 1999GMCYukon
1984 - 1990JeepWagoneer
1984 - 2001JeepCherokee
1986 - 1992JeepComanche
1993 - 2004JeepGrand Cherokee
1997 - 2006JeepTJ
1997 - 2006JeepWrangler
