Monroe

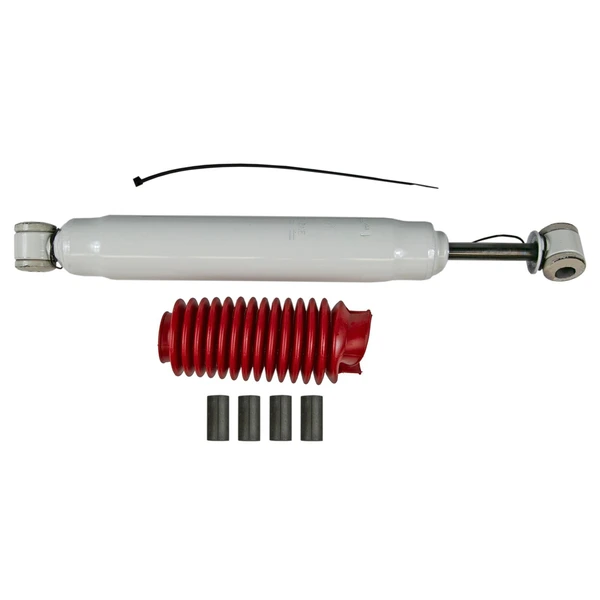

Monroe RS55114 Suspension Shock Absorber, Front Side

Part # RS55114
Item # 1001QW48
$83.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Quantity
2
Installation Position
Front Side
Brand
Monroe
Warranty
3-Year
Item Located
United States
Quantity
2
Installation Position
Front Side
Color
White
Active or Passive Suspension
Passive
Adjustable Compression
No
Adjustable Damping
No
Adjustable Rebound
No
Adjustable Ride Height
No
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Bladder Heavy Duty Crimping Rings Included
No
Bladder Included
No
Bladder Sleeve Included
No
Body Color
White
Body Diameter (in)
2.25
Body Diameter (mm)
57.2
Body Material
Steel
Boot Included
Yes
Coil Over Springs Included
No
Coil Spring Insulator Included
No
Compressed Length (in)
15.11
Compressed Length (mm)
383.8
Cylinder Color
White
Cylinder Finish
Painted
Cylinder Material
Steel
Cylinder Outside Diameter (in)
2.25
Cylinder Outside Diameter (mm)
57.2
Dust Shield Diameter (in)
2.99
Dust Shield Diameter (mm)
75.95
Dust Shield Included
Yes
Dust Shield Material
Rubber
Extended Length (in)
24.64
Extended Length (mm)
625.9
Finish
Painted
Gas Charged
Yes
Hydraulic Lockout
No
Includes Bump Stop
No
Internal Construction Type
Twin Tube
Internal Rebound Bumper
Yes
Lower Mount Code
L2
Lower Mount Type
Loop Bushing Mount
Mounting Hardware Included
Yes
Remote Reservoir
No
Rod Diameter (in)
0.62
Rod Diameter (mm)
15.8
Self-Leveling
No
Shaft Material
Nitrocarburized
Shock Absorber Bore Size (in)
1.38
Shock Absorber Bore Size (mm)
35
Shock Stroke (in)
9.53
Shock Stroke (mm)
242.1
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Strut Mount Insulator Included
No
Travel Length (in)
9.53
Travel Length (mm)
242.1
Type
Telescopic
Upper Mount Code
L2
Upper Mount Type
Loop Bushing Mount
Valving Type
Progressive
Show all
Note
Shock Absorber Rod End Measuring Point: Center of Loop, Shock Absorber Body End Measuring Point: Center of Loop.

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
RS55114
N8027
RS5114

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (24)vehicles
All
Chevrolet
Dodge
GMC
Plymouth
1964 - 1969ChevroletG10 Van
1967 - 1969ChevroletG20 Van
1961 - 1967DodgeD100 Series
1961 - 1967DodgeD200 Series
1961 - 1967DodgeD300 Series
1961 - 1967DodgeW100 Series
1961 - 1967DodgeW200 Series
1968 - 1971DodgeD100 Pickup
1968 - 1971DodgeD200 Pickup
1968 - 1971DodgeD300 Pickup
1968 - 1974DodgeW100 Pickup
1968 - 1974DodgeW200 Pickup
1969 - 1974DodgeW300 Pickup
1975 - 1980DodgeW200
1975 - 1980DodgeW300
1975 - 1989DodgeW100
1975 - 1993DodgeRamcharger
1977 - 1993DodgeW150
1981 - 1993DodgeW250
1981 - 1993DodgeW350
