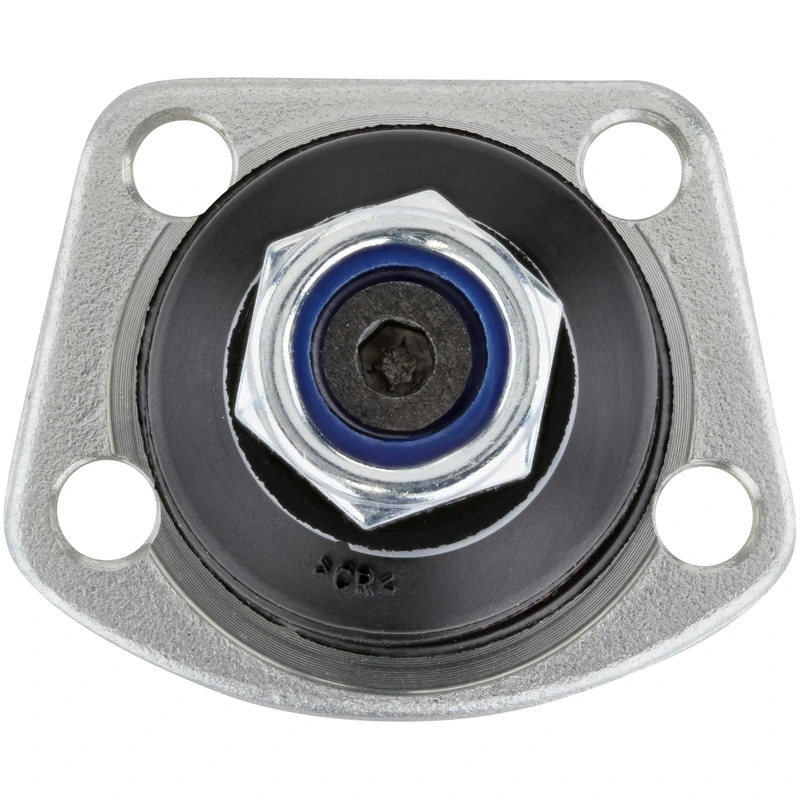

Ball Joint - Front Lower - Delphi TC936
Part # TC936
Item # 1001VT8D
$34.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Steel
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushing Quantity
- 0
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Distance Between Mounting Holes (mm)
- 29.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 2.165
- Height (mm)
- 55.00
- Length (in)
- 3.620
- Length (mm)
- 92.00
- Maximum Outside Diameter (in)
- 2.638
- Maximum Outside Diameter (mm)
- 67.00
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 0.579
- Mounting Bolt Head Diameter (mm)
- 14.70
- Mounting Bolt Length (in)
- 0.953
- Mounting Bolt Length (mm)
- 24.20
- Mounting Bolt Shank Diameter (in)
- 0.335
- Mounting Bolt Shank Diameter (mm)
- 8.50
- Mounting Bolt Thread Length (in)
- 0.750
- Mounting Bolt Thread Length (mm)
- 19.05

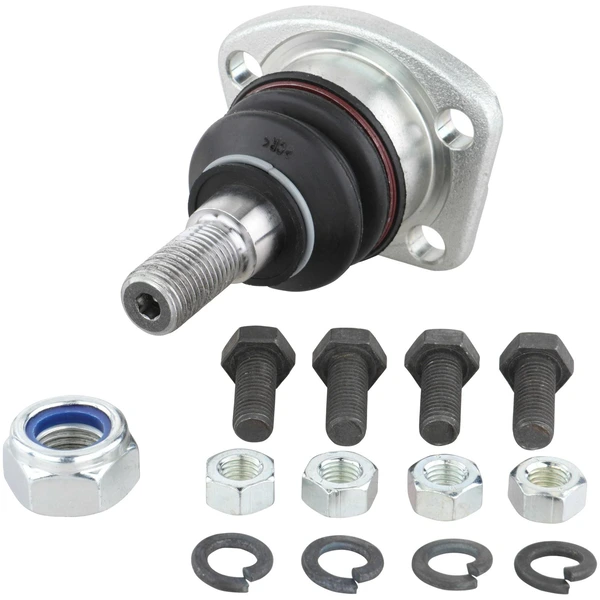

- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 4
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.768
- Stud Tapered End 1 Diameter (mm)
- 19.5
- Stud Tapered End 2 Diameter (in)
- 0.657
- Stud Tapered End 2 Diameter (mm)
- 16.7
- Stud Thread Length (in)
- 0.846
- Stud Thread Length (mm)
- 21.5
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Premium
- Washers Included
- Yes
- Width (mm)
- 67
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5803 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5803 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
B9699 - MAS INDUSTRIES, DORMAN
JBJ775 - TRW STEERING AND SUSPENSION PARTS, TRW
K9699 - MOOG CHASSIS PRODUCTS, XRF
JLM11860, JLM-11860 - JAGUAR, DAIMLER TRUCK NORTH AMERICA
CAC9937, CAC-9937 - JAGUAR, DAIMLER TRUCK NORTH AMERICA
5051454, 505-1454 - RAYBESTOS CHASSIS
C12803 - JAGUAR
TC936 - DELPHI
FA2409 - MCQUAYNORRIS
MK9699 - MEVOTECH
JLM1860 - JAGUAR
BJ06066 - IMPORT DIRECT
101-0560
101-4125
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Jaguar
| 1987 - 1996 | Jaguar | XJS |
| 1987 - 1997 | Jaguar | XJ6 |
| 1993 - 1993 | Jaguar | XJRS |
| 1994 - 1996 | Jaguar | XJ12 |
| 1995 - 1997 | Jaguar | Vanden Plas |
| 1995 - 1997 | Jaguar | XJR |
