Delphi

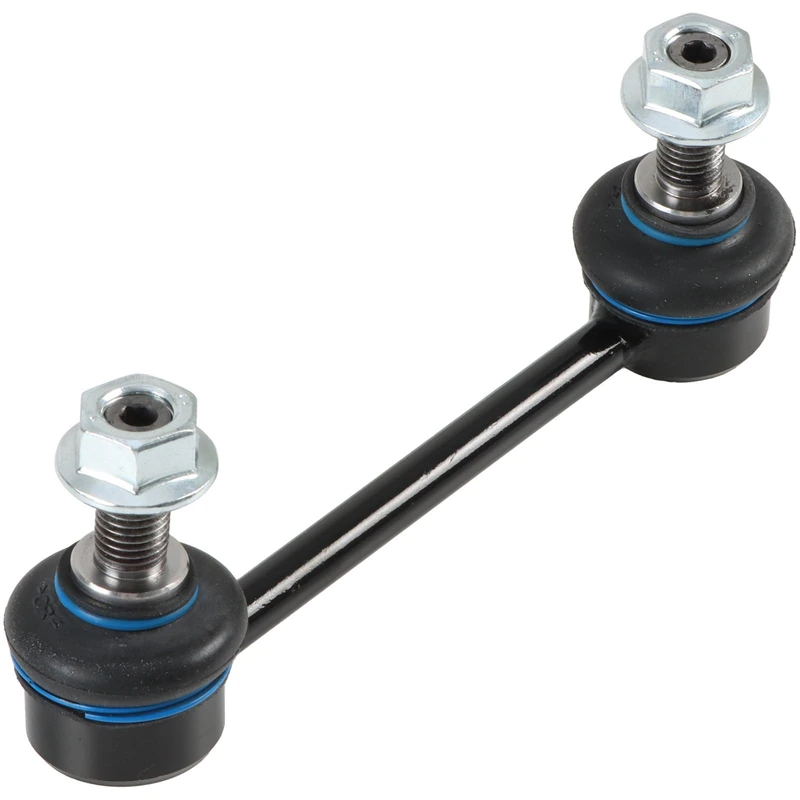

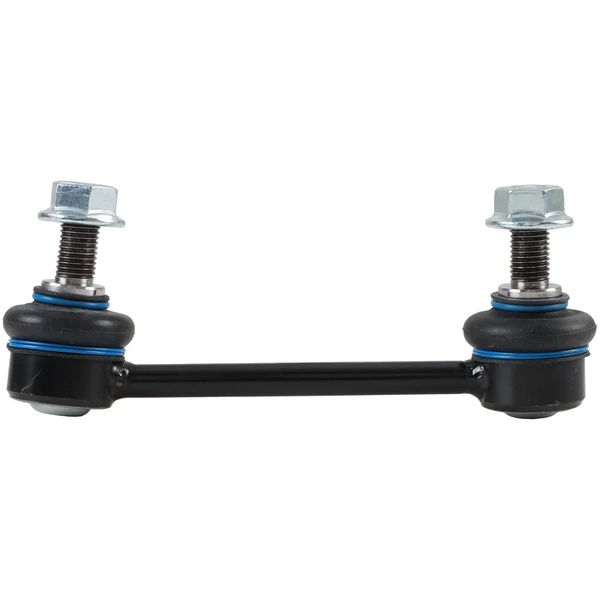

Suspension Stabilizer Bar Link - Delphi TC8356

Part # TC8356
Item # 1001WGLX
$38.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Material
Steel
Bearing Material
Polyoxymethylene (POM)
Bolt Length (in)
1.100
Bolt Length (mm)
28.00
Bolt Thread Diameter (in)
0.470
Bolt Thread Diameter (mm)
12.00
Bolt Thread Size
M12x1.5
Bolts Included
No
Boot Material
Rubber
Bushings Included
No
Distance Between Mounting Holes (mm)
138.00
Dust Boot Included
Yes
End 1 Type
Ball Joint
End 2 Type
Ball Joint
Grade Type
Regular
Greaseable
No
Hardware Included
Yes
Height (in)
2.650
Height (mm)
67.23
Housing Material
Steel
Length (in)
6.700
Length (mm)
170.18
Locking Nuts Included
Yes
Position(s)
Front Left
Type
Suspension Stabilizer Bar Link
Washers Included
No
Weight (lb)
0.97
Width (in)
1.5
Width (mm)
38
Wrench Size
5mm
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 6552 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
9063201989, 906 320 19 89Ā - FREIGHTLINER, MERCEDESBENZ
A9063201989, A 906 320 19 89Ā - FREIGHTLINER, MERCEDESBENZ
MS108222Ā - MEVOTECH
TC8356Ā - DELPHI
K750956Ā - MOOG CHASSIS PRODUCTS
1018718

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Mercedes-Benz
2015 - 2019Mercedes-BenzSprinter 3500
2015 - 2021Mercedes-BenzSprinter 2500
2018 - 2018Mercedes-BenzSprinter 3500XD
2019 - 2019Mercedes-BenzSprinter 3500XD
2020 - 2021Mercedes-BenzSprinter 3500
