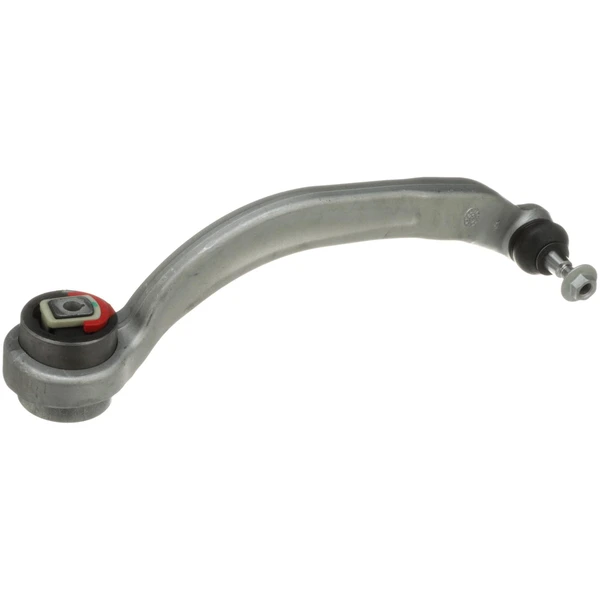

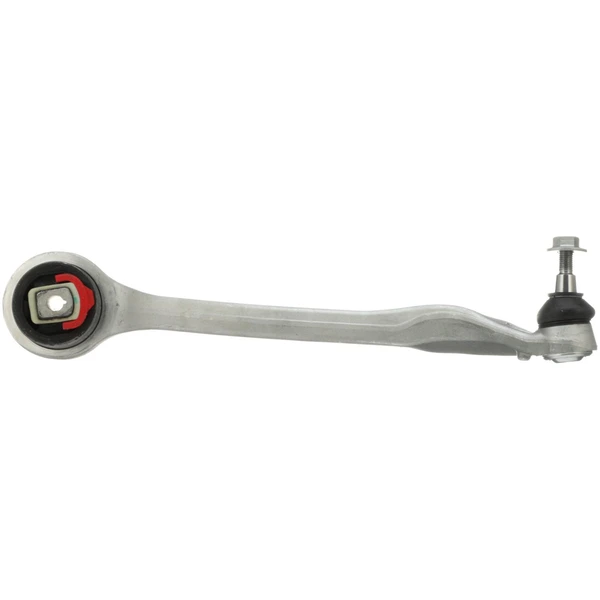

Control Arm and Ball Joint Assembly - Front Right Lower Rearward - Delphi TC770
Part # TC770
Item # 1001Y1SZ
$112.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Right Lower Rearward
- Ball Joint Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Right Lower Rearward
- Ball Joint Included
- Yes
- Adjustable
- No
- Ball Joint Stud Length (in)
- 2.795
- Ball Joint Stud Length (mm)
- 71.00
- Ball Joint Stud Type
- Threaded
- Ball Joint Thread Diameter (in)
- 0.472
- Ball Joint Thread Diameter (mm)
- 12.00
- Bearing Material
- Plastic
- Boot Color
- Black
- Boot Material
- Choloroprene Rubber (CR)
- Bushing Color
- Black
- Bushing Material
- Rubber
- Bushings Included
- Yes
- Control Arm Color
- Gray
- Control Arm Construction
- Casting/Forged
- Control Arm Material
- Aluminum
- Control Arm Maximum Length (in)
- 17.717
- Control Arm Maximum Length (mm)
- 450.00
- Control Arm Maximum Width (in)
- 4.921
- Control Arm Maximum Width (mm)
- 125.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Chloroprene Rubber (CR)
- Finish
- Uncoated
- Grade Type
- Premium
- Greaseable
- No
- Locking Nut Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Diameter (in)
- 0.571
- Mounting Hole Diameter (mm)
- 14.50
- Mounting Hole Quantity
- 1
- Pre-Greased
- Yes
- Steering Type
- Power
- Thread Direction
- Clockwise (Right)
- Thread Size
- 12
- Type
- Control Arm and Ball Joint Assembly
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1534 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1534 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
4D0407694K, 4D0-407-694K, 4D0 407 694 K, 4D0 407 694K, 4D0-407-694-K - SKODA, AUDI, VOLKSWAGEN, SYD
8E0407694AG, 8E0-407-694AG, 8E0 407 694 AG, 8E0 407 694AG - SKODA, AUDI, VOLKSWAGEN
8E0407694E, 8E0-407-694E, 8E0 407 694 E - SKODA, AUDI, VOLKSWAGEN
4D0407694N, 4D0-407-694N, 4D0 407 694N, 4D0 407 694 N - SKODA, AUDI, VOLKSWAGEN
8E0407694H, 8E0 407 694 H, 8E0 407 694H - SKODA, AUDI, VOLKSWAGEN
4D0407694M, 4D0-407-694M, 4D0 407 694M, 4D0 407 694 M - SKODA, AUDI, VOLKSWAGEN
4D0407694H, 4D0 407 694 H, 4D0 407 694H, 4D0-407-694H - SKODA, AUDI, VOLKSWAGEN
8E0407694Q, 8E0 407 694Q, 8E0 407 694 Q, 8E0-407-694Q - SKODA, AUDI, VOLKSWAGEN
4D0407694E, 4D0 407 694 E, 4D0-407-694E, 4D0 407 694E - SKODA, AUDI, VOLKSWAGEN
8E0407694, 8E0-407-694, 8E0 407 694 - SKODA, AUDI, VOLKSWAGEN
4D0407694AC, 4D0 407 694 AC, 4D0 407 694AC, 4D0-407-694AC - SKODA, AUDI, VOLKSWAGEN
8E0407694K, 8E0 407 694 K, 8E0-407-694K, 8E0 407 694K - SKODA, AUDI, VOLKSWAGEN
8E0407694P, 8E0 407 694 P, 8E0 407 694P, 8E0-407-694P - SKODA, AUDI, VOLKSWAGEN
JTC350 - TRW STEERING AND SUSPENSION PARTS, TRW
CB30834PR - MAS INDUSTRIES, DORMAN
4D0407694AD, 4D0-407-694AD, 4D0 407 694 AD - AUDI, VOLKSWAGEN
CB30834 - MAS INDUSTRIES, DORMAN
RK80563 - MOOG CHASSIS PRODUCTS
520766, 520-766 - DORMAN
CMK80563 - MEVOTECH
CK80563 - MOOG CHASSIS PRODUCTS
MK80563 - MEVOTECH
TC770 - DELPHI
101-4965
102-4965
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (25)vehicles
All
Audi
Volkswagen
| 1996 - 2004 | Audi | A4 |
| 1996 - 2004 | Audi | A4 Quattro |
| 1997 - 1999 | Audi | A8 |
| 1997 - 2003 | Audi | A8 Quattro |
| 1998 - 2004 | Audi | A6 |
| 1998 - 2004 | Audi | A6 Quattro |
| 2000 - 2002 | Audi | S4 |
| 2001 - 2002 | Audi | S8 |
| 2002 - 2003 | Audi | S6 |
| 2003 - 2003 | Audi | S8 |
| 2003 - 2004 | Audi | RS6 |
| 2004 - 2004 | Audi | S4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 Quattro |
| 2005 - 2005 | Audi | S4 |
