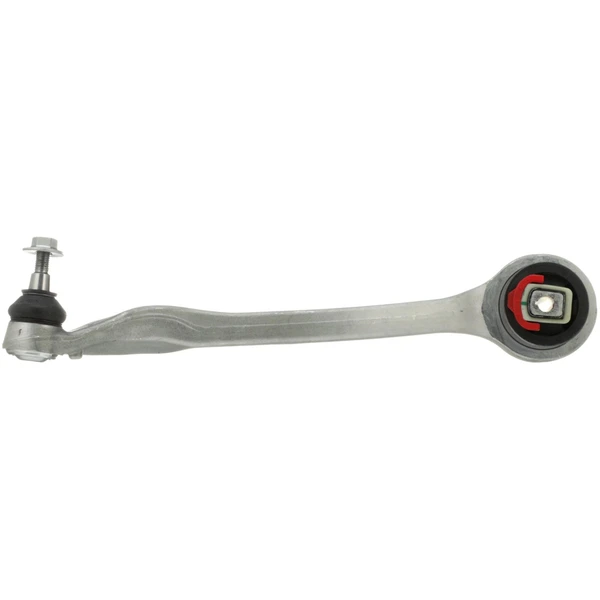

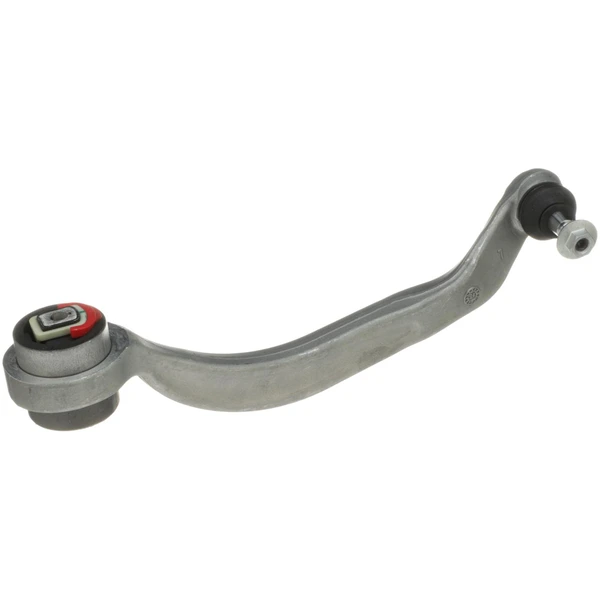

Control Arm and Ball Joint Assembly - Front Left Lower Rearward - Delphi TC769
Part # TC769
Item # 1001Y00Y
$113.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Left Lower Rearward
- Ball Joint Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Left Lower Rearward
- Ball Joint Included
- Yes
- Adjustable
- No
- Ball Joint Stud Length (in)
- 2.795
- Ball Joint Stud Length (mm)
- 71.00
- Ball Joint Stud Type
- Threaded
- Ball Joint Thread Diameter (in)
- 0.472
- Ball Joint Thread Diameter (mm)
- 12.00
- Bearing Material
- Plastic
- Boot Color
- Black
- Boot Material
- Choloroprene Rubber (CR)
- Bushing Color
- Black
- Bushing Material
- Rubber
- Bushings Included
- Yes
- Control Arm Color
- Gray
- Control Arm Construction
- Casting/Forged
- Control Arm Material
- Aluminum
- Control Arm Maximum Length (in)
- 15.157
- Control Arm Maximum Length (mm)
- 385.00
- Control Arm Maximum Width (in)
- 5.118
- Control Arm Maximum Width (mm)
- 130.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Chloroprene Rubber (CR)
- Finish
- Uncoated
- Grade Type
- Premium
- Greaseable
- No
- Locking Nut Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Diameter (in)
- 0.571
- Mounting Hole Diameter (mm)
- 14.50
- Mounting Hole Quantity
- 1
- Pre-Greased
- Yes
- Steering Type
- Power
- Thread Direction
- Clockwise (Right)
- Thread Size
- 12
- Type
- Control Arm and Ball Joint Assembly
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1532 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 1532 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
4D0407693K, 4D0-407-693K, 4D0-407-693-K, 4D0 407 693 K, 4D0 407 693K - SKODA, AUDI, VOLKSWAGEN, SYD
4D0407693N, 4D0 407 693N, 4D0-407-693N, 4D0 407 693 N - SKODA, AUDI, VOLKSWAGEN
4D0407693M, 4D0-407-693M, 4D0 407 693M, 4D0 407 693 M - SKODA, AUDI, VOLKSWAGEN
8E0407693E, 8E0-407-693E, 8E0 407 693 E - SKODA, AUDI, VOLKSWAGEN
4D0407693E, 4D0 407 693 E, 4D0-407-693E, 4D0 407 693E - SKODA, AUDI, VOLKSWAGEN
4D0407693H, 4D0 407 693 H, 4D0 407 693H, 4D0-407-693H - SKODA, AUDI, VOLKSWAGEN
8E0407693P, 8E0 407 693P, 8E0 407 693 P, 8E0-407-693P - SKODA, AUDI, VOLKSWAGEN
8E0407693Q, 8E0 407 693 Q, 8E0 407 693Q, 8E0-407-693Q - SKODA, AUDI, VOLKSWAGEN
4D0407693AC, 4D0-407-693AC, 4D0 407 693AC, 4D0 407 693 AC - SKODA, AUDI, VOLKSWAGEN
8E0407693H, 8E0 407 693H, 8E0 407 693 H - SKODA, AUDI, VOLKSWAGEN
8E0407693K, 8E0-407-693K, 8E0 407 693 K, 8E0 407 693K - SKODA, AUDI, VOLKSWAGEN
8E0407693AG, 8E0-407-693AG, 8E0 407 693 AG, 8E0 407 693AG - SKODA, AUDI, VOLKSWAGEN
8E0407693, 8E0-407-693, 8E0 407 693 - SKODA, AUDI, VOLKSWAGEN
CB30835 - MAS INDUSTRIES, DORMAN
4D0407693AD, 4D0 407 693 AD, 4D0-407-693AD - AUDI, VOLKSWAGEN
JTC348 - TRW STEERING AND SUSPENSION PARTS, TRW
JTC1286 - TRW STEERING AND SUSPENSION PARTS, TRW
VWH124, VW-H124 - DEEZA
RK80562 - MOOG CHASSIS PRODUCTS
TC769 - DELPHI
FA4046 - MCQUAYNORRIS
CMK80562 - MEVOTECH
CK80562 - MOOG CHASSIS PRODUCTS
MK80562 - MEVOTECH
101-4966
102-4966
102-4965
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (25)vehicles
All
Audi
Volkswagen
| 1996 - 2004 | Audi | A4 |
| 1996 - 2004 | Audi | A4 Quattro |
| 1997 - 1999 | Audi | A8 |
| 1997 - 2003 | Audi | A8 Quattro |
| 1998 - 2004 | Audi | A6 |
| 1998 - 2004 | Audi | A6 Quattro |
| 2000 - 2002 | Audi | S4 |
| 2001 - 2002 | Audi | S8 |
| 2002 - 2003 | Audi | S6 |
| 2003 - 2003 | Audi | S8 |
| 2003 - 2004 | Audi | RS6 |
| 2004 - 2004 | Audi | S4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 |
| 2005 - 2005 | Audi | A4 Quattro |
| 2005 - 2005 | Audi | S4 |
