Delphi

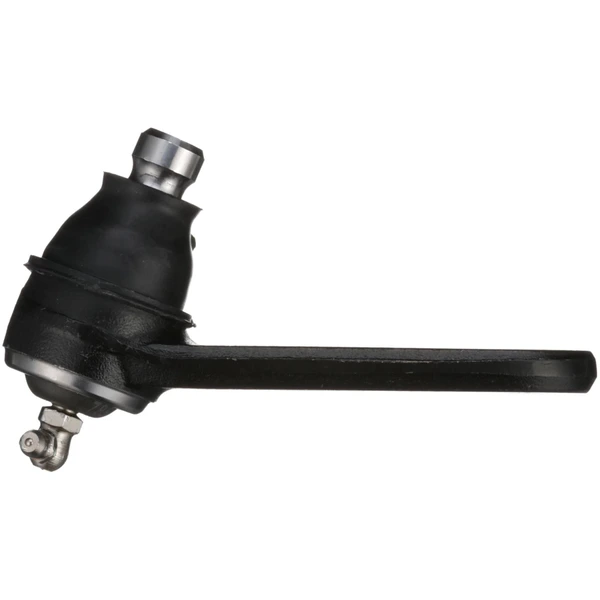

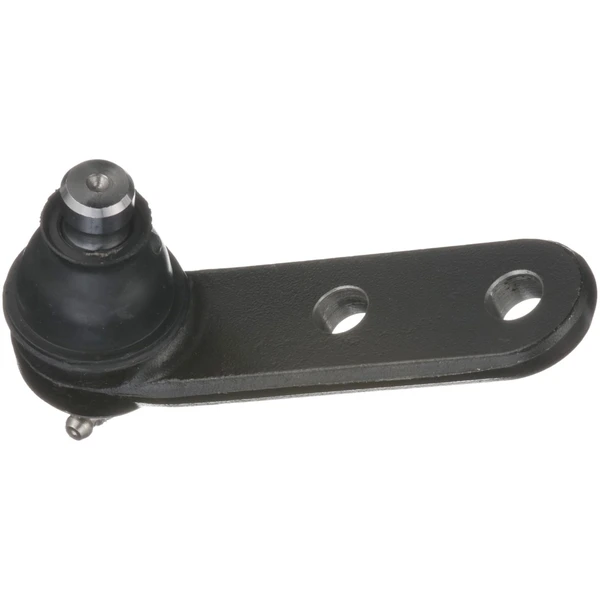

Ball Joint - Front Lower - Delphi TC7088

Part # TC7088
Item # 1001VSXC
$71.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Lower
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Lower
Material
SAE1045, 40Cr
Color
Black
Adjustable
No
Ball Joint Assembly
Yes
Castle Nut Included
No
Cotter Pin Hole
No
Cotter Pin Included
No
Distance Between Mounting Holes (mm)
41.00
Dust Boot Included
Yes
Dust Boot Material
Rubber
Grease Fitting Included
Yes
Greaseable
Yes
Mounting Bolt Head Diameter (in)
0.740
Mounting Bolt Head Diameter (mm)
18.70
Mounting Bolt Length (in)
1.580
Mounting Bolt Length (mm)
40.20
Mounting Bolt Thread Length (in)
1.180
Mounting Bolt Thread Length (mm)
30.00
Mounting Bolt Thread Pitch (mm)
1.75
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
2
Mounting Type
Bolt-In
Nuts Included
Yes
Stud Type
Pinch Bolt
Suspension Grade Type
Standard
Tapered Stud
No
Type
Ball Joint
Wrench Size
16.8mm
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5700 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
8944664611, 8-94466-461-1Ā - SUZUKI, GENERAL MOTORS, ISUZU
TC7088Ā - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Asuna
Geo
Isuzu
1993 - 1993AsunaSunfire
1990 - 1993GeoStorm
1990 - 1992IsuzuImpulse
1991 - 1993IsuzuStylus
