Delphi

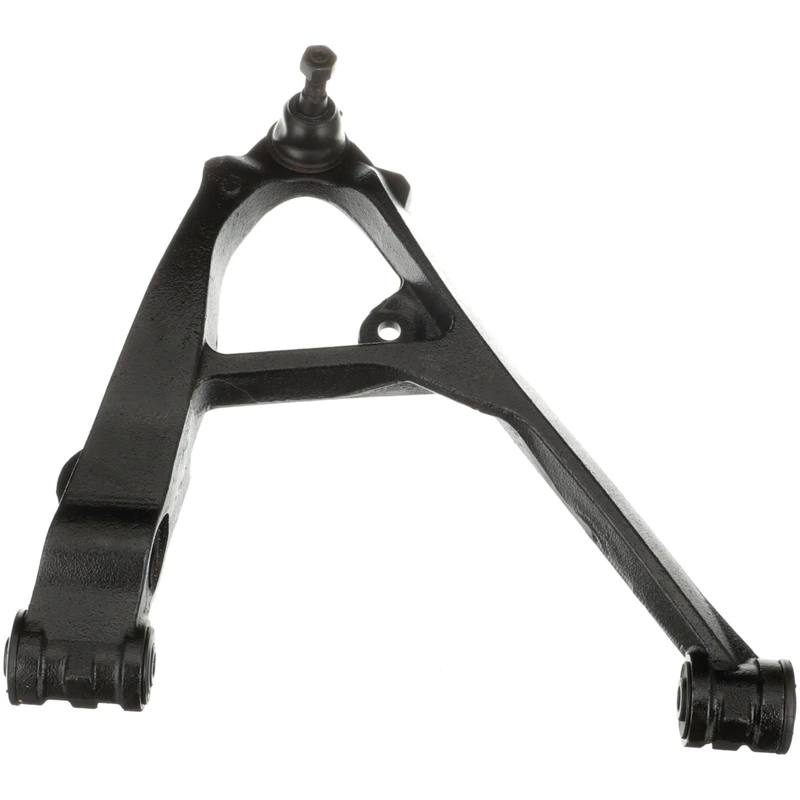

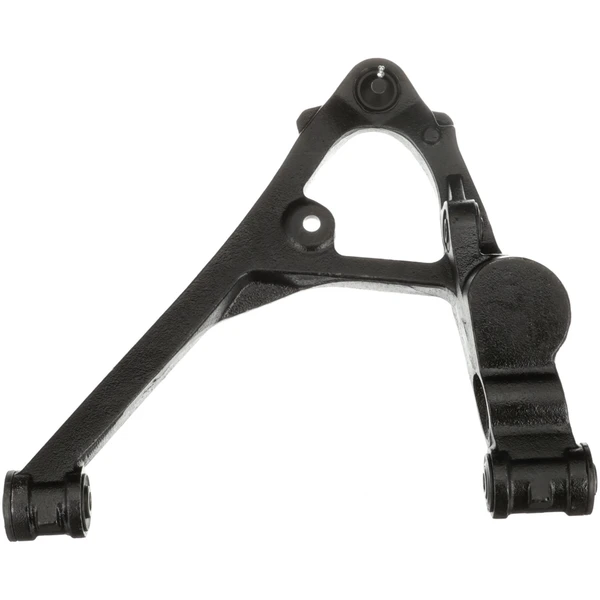

Control Arm and Ball Joint Assembly - Front Right Lower - Delphi TC5823

Part # TC5823
Item # 1001XHWE
$157.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Adjustable
No
Ball Joint Mounting Type
Press In
Ball Joint Stud Length (in)
4.331
Ball Joint Stud Length (mm)
110.00
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.630
Ball Joint Thread Diameter (mm)
16.00
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Black
Control Arm Construction
Casting/Forged
Control Arm Material
Cast Iron
Control Arm Maximum Length (in)
20.394
Control Arm Maximum Length (mm)
518.00
Control Arm Maximum Width (in)
6.969
Control Arm Maximum Width (mm)
177.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Painted
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Diameter (in)
0.638
Mounting Hole Diameter (mm)
16.20
Mounting Hole Quantity
2
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
16
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 470 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
12475479 - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET, ACDELCO
15047210 - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
12475480 - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
JTC2433 - TRW STEERING AND SUSPENSION PARTS, TRW
JTC1511 - TRW STEERING AND SUSPENSION PARTS, TRW
CB90063PR - MAS INDUSTRIES, DORMAN
CB90063 - MAS INDUSTRIES, DORMAN
RK620381 - MOOG CHASSIS PRODUCTS
TC5823 - DELPHI
520127, 520-127 - DORMAN
CK620381 - MOOG CHASSIS PRODUCTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (22)vehicles
All
Cadillac
Chevrolet
GMC
2002 - 2006CadillacEscalade
2002 - 2006CadillacEscalade EXT
2003 - 2006CadillacEscalade ESV
1999 - 2003ChevroletSilverado 1500
2000 - 2000ChevroletTahoe
2000 - 2000ChevroletTahoe
2000 - 2006ChevroletSuburban 1500
2001 - 2006ChevroletTahoe
2002 - 2006ChevroletAvalanche 1500
2003 - 2005ChevroletExpress 2500
2003 - 2014ChevroletExpress 1500
2004 - 2006ChevroletSilverado 1500
2007 - 2007ChevroletSilverado 1500 Classic
1999 - 2003GMCSierra 1500
2000 - 2000GMCYukon
2000 - 2000GMCYukon
2000 - 2006GMCYukon XL 1500
2001 - 2006GMCYukon
2003 - 2005GMCSavana 2500
2003 - 2014GMCSavana 1500
