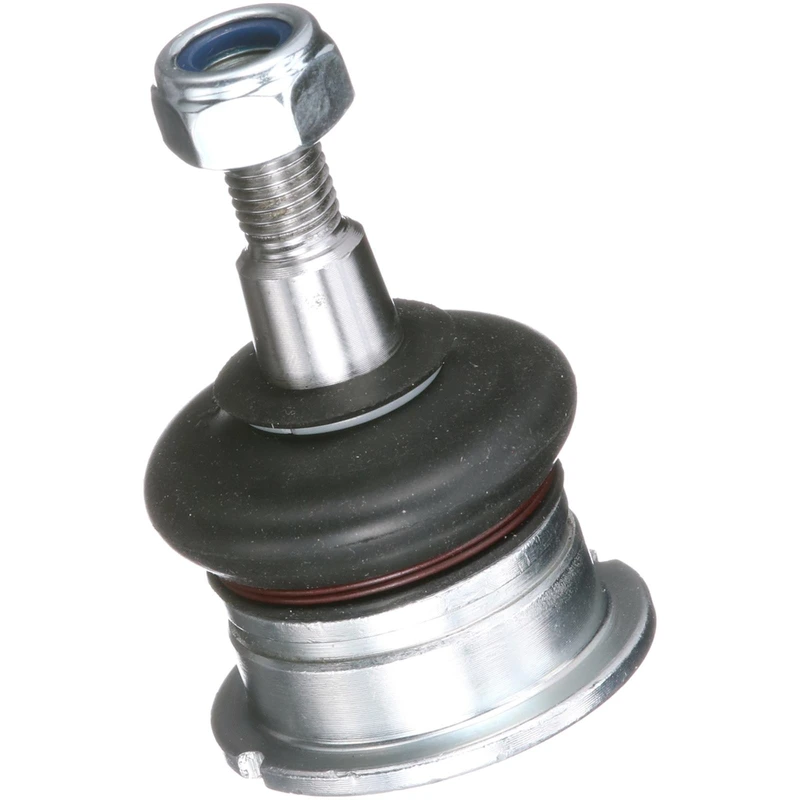

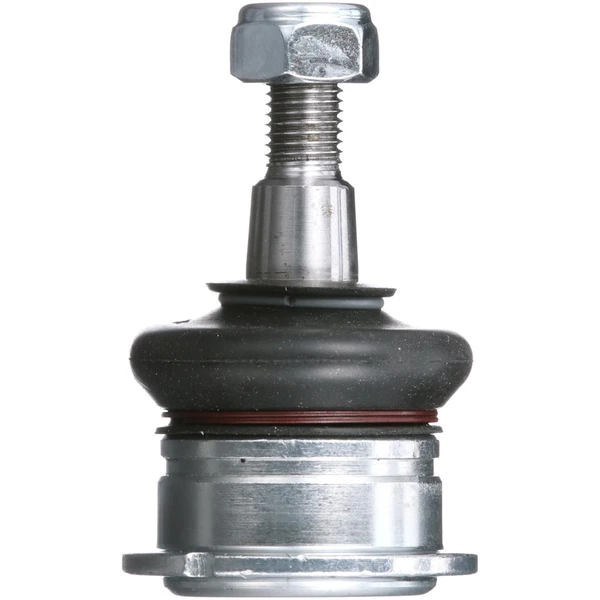

Ball Joint - Front Upper - Delphi TC5760
Part # TC5760
Item # 1001VN03
$40.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Upper
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Upper
- Material
- Steel
- Color
- Silver
- Ball Joint Assembly
- Yes
- Bushing Quantity
- 0
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Height (in)
- 1.772
- Height (mm)
- 45.00
- Length (in)
- 2.760
- Length (mm)
- 70.00
- Maximum Outside Diameter (in)
- 1.390
- Maximum Outside Diameter (mm)
- 35.20
- Mount Plate Included
- No
- Mounting Bolts Included
- No
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 0
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.551
- Stud Tapered End 1 Diameter (mm)
- 14
- Stud Tapered End 2 Diameter (in)
- 0.5
- Stud Tapered End 2 Diameter (mm)
- 12.7
- Stud Thread Diameter (in)
- 0.39
- Stud Thread Diameter (mm)
- 10
- Stud Thread Length (in)
- 0.689
- Stud Thread Length (mm)
- 17.5
- Stud Thread Pitch (mm)
- 1.25
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Premium
- Washers Included
- No
- Width (mm)
- 45
- Wrench Size
- 5mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5425 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5425 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K90336 - NAPA, FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, ULTRAPOWER AUTO PARTS, TRANSBEC, PARTS MASTER, ALTROM GROUP, FIRESTONE, XRF, FALCON STEERING SYSTEMS
51450S84A01, 51450-S84-A01 - ACURA, OEM PART NUMBER, ISUZU, HONDA
JBJ1048 - TRW STEERING AND SUSPENSION PARTS, TRW
RK620285 - MOOG CHASSIS PRODUCTS
1024855, 102-4855 - MOOG CHASSIS PRODUCTS
MK90336 - MEVOTECH
CB30226PR - MAS INDUSTRIES
520622, 520-622 - DORMAN
TC5760 - DELPHI
CB30226 - MAS INDUSTRIES
CK620285 - MOOG CHASSIS PRODUCTS
101-4855
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Acura
Honda
Isuzu
| 1996 - 1998 | Acura | TL |
| 1997 - 1999 | Acura | CL |
| 2001 - 2001 | Acura | CL |
| 2002 - 2003 | Acura | CL |
| 1989 - 1991 | Honda | Civic |
| 1990 - 1997 | Honda | Accord |
| 1998 - 2002 | Honda | Accord |
| 1996 - 1999 | Isuzu | Oasis |
