Delphi

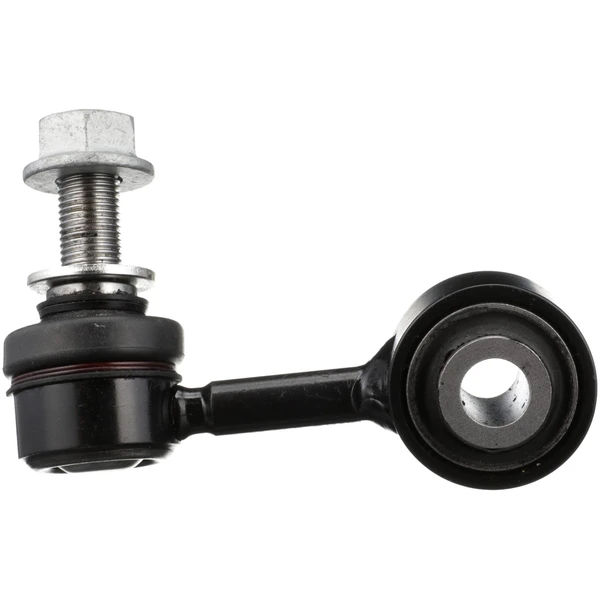

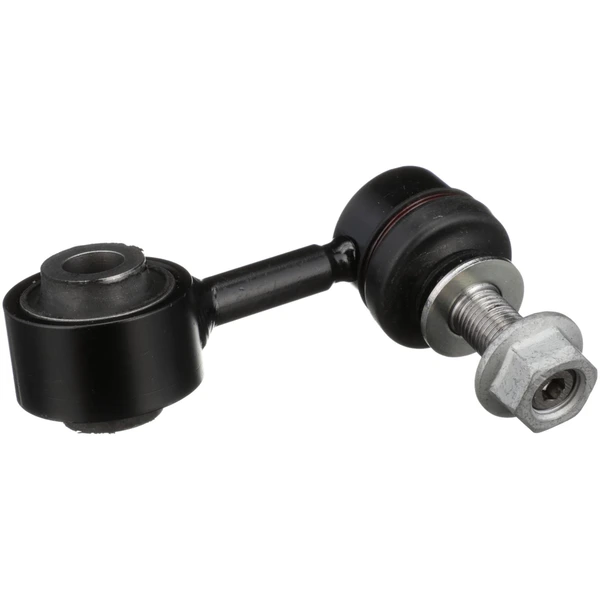

Suspension Stabilizer Bar Link - Delphi TC5516

Part # TC5516
Item # 1001W39K
$37.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Material
Ball Pin -Steel, Outer Sleeve - Steel
Bearing Material
Polyoxymethylene (POM)
Bolts Included
No
Bushing Color
Black
Bushing Inside Diameter (in)
0.945
Bushing Inside Diameter (mm)
24.00
Bushing Material
Rubber
Bushing Outside Diameter (in)
1.476
Bushing Outside Diameter (mm)
37.50
Bushings Included
Yes
Distance Between Mounting Holes (mm)
85.00
Dust Boot Included
Yes
End 2 Type
Male - M14x1.5
Grade Type
Performance
Greaseable
No
Height (in)
3.504
Height (mm)
89.00
Housing Material
Steel
Length (in)
5.079
Length (mm)
129.00
Locking Nuts Included
Yes
Position(s)
Front Left
Sleeve Inside Diameter (in)
0.563
Sleeve Inside Diameter (mm)
14.3
Sleeve Length (in)
1.496
Sleeve Length (mm)
38
Type
Suspension Stabilizer Bar Link
Washers Included
Yes
Weight (lb)
1.08
Width (in)
1.732
Width (mm)
44
Wrench Size
6mm
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5813 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
SL74051XLĀ - MAS INDUSTRIES, DORMAN
SL74051Ā - MAS INDUSTRIES
K750179Ā - MOOG CHASSIS PRODUCTS
TC5516Ā - DELPHI
JTS1361Ā - TRW
488100C010, 48810-0C010Ā - TOYOTA
101-5887

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Toyota
2007 - 2009ToyotaTundra
2008 - 2022ToyotaSequoia
2010 - 2010ToyotaTundra
2010 - 2010ToyotaTundra
2010 - 2010ToyotaTundra
2010 - 2011ToyotaTundra
2010 - 2011ToyotaTundra
2010 - 2011ToyotaTundra
2010 - 2012ToyotaTundra
2010 - 2012ToyotaTundra
2012 - 2012ToyotaTundra
2012 - 2012ToyotaTundra
2013 - 2021ToyotaTundra
