Delphi

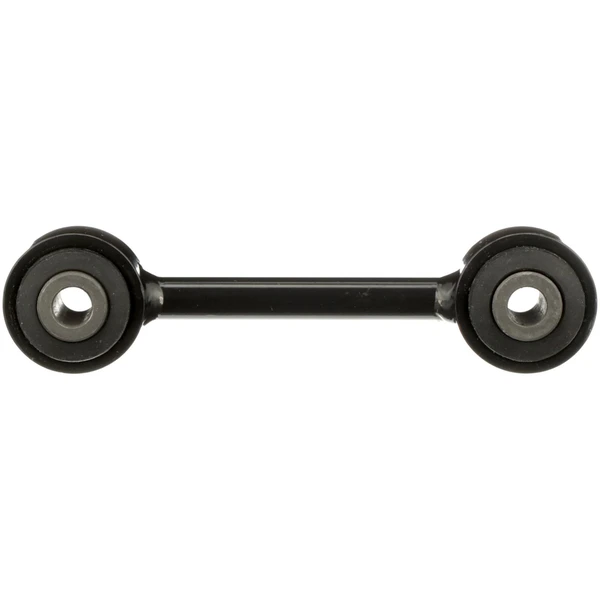

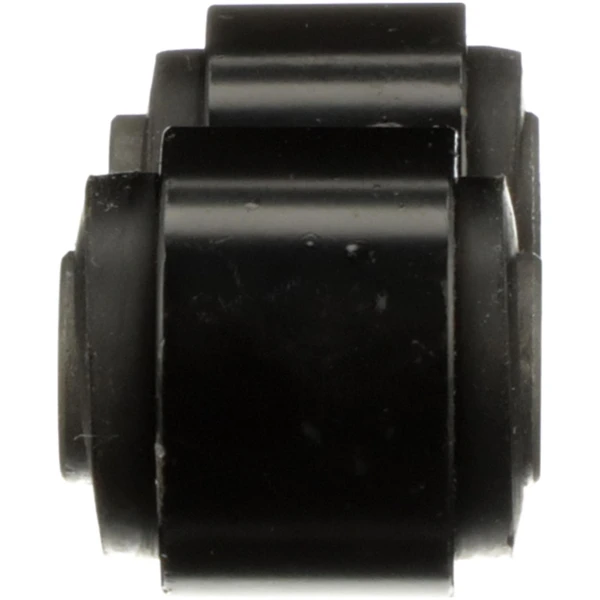

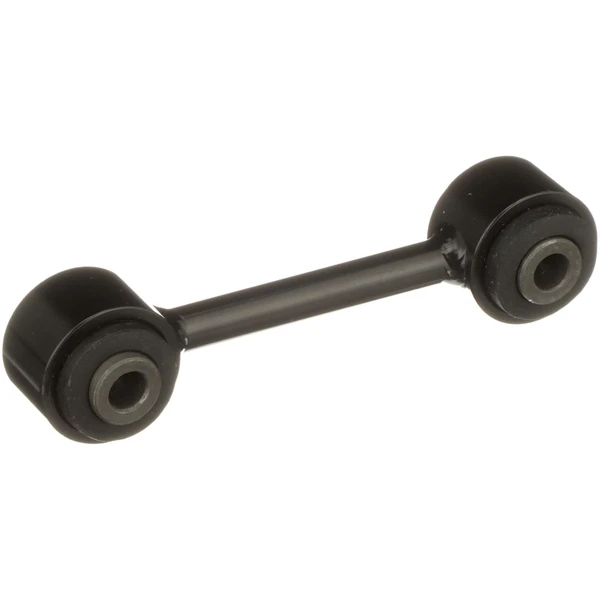

Suspension Stabilizer Bar Link - Delphi TC5509

Part # TC5509
Item # 1001W2XT
$28.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Material
Sleeve - Steel
Bolts Included
No
Bushing Color
Black
Bushing Inside Diameter (in)
0.610
Bushing Inside Diameter (mm)
15.50
Bushing Material
Rubber
Bushing Outside Diameter (in)
1.260
Bushing Outside Diameter (mm)
32.00
Bushings Included
Yes
Distance Between Mounting Holes (mm)
120.00
Dust Boot Included
No
Grade Type
Performance
Greaseable
No
Height (in)
1.496
Height (mm)
38.00
Housing Material
Steel
Length (in)
6.142
Length (mm)
156.00
Locking Nuts Included
No
Position(s)
Rear
Sleeve Inside Diameter (in)
0.406
Sleeve Inside Diameter (mm)
10.3
Sleeve Length (in)
1.496
Sleeve Length (mm)
38
Type
Suspension Stabilizer Bar Link
Washers Included
No
Weight (lb)
0.74
Width (in)
1.417
Width (mm)
36
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5812 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
15722338Ā - GENERAL MOTORS, GMC, CHEVROLET
15961007Ā - GENERAL MOTORS, GMC, CHEVROLET
JTS1269Ā - TRW STEERING AND SUSPENSION PARTS, TRW
K700438Ā - MOOG CHASSIS PRODUCTS
TC5509Ā - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (32)vehicles
All
Cadillac
Chevrolet
GMC
1999 - 2000CadillacEscalade
1990 - 1991ChevroletV1500 Suburban
1990 - 1991ChevroletV2500 Suburban
1990 - 1991ChevroletV3500
1990 - 1993ChevroletK2500
1990 - 1993ChevroletK3500
1992 - 1993ChevroletC1500
1993 - 1994ChevroletBlazer
1993 - 1999ChevroletC1500 Suburban
1993 - 1999ChevroletK1500 Suburban
1995 - 1999ChevroletTahoe
2000 - 2000ChevroletTahoe
1990 - 1991GMCV1500 Suburban
1990 - 1991GMCV2500 Suburban
1990 - 1991GMCV3500
1990 - 1993GMCC1500
1990 - 1993GMCC2500
1990 - 1993GMCC3500
1990 - 1993GMCK1500
1990 - 1993GMCK2500
