Delphi

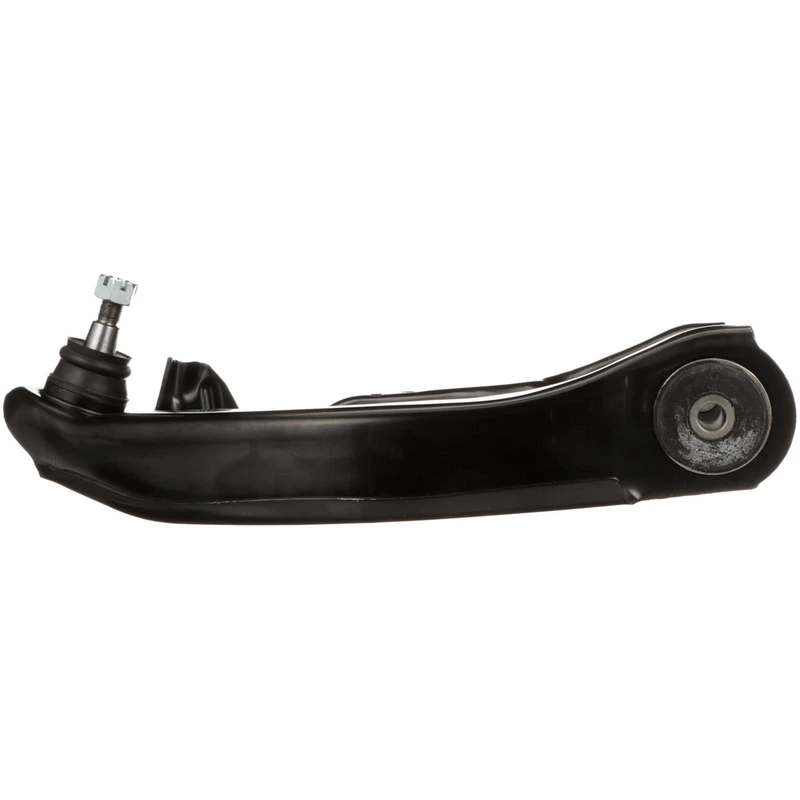

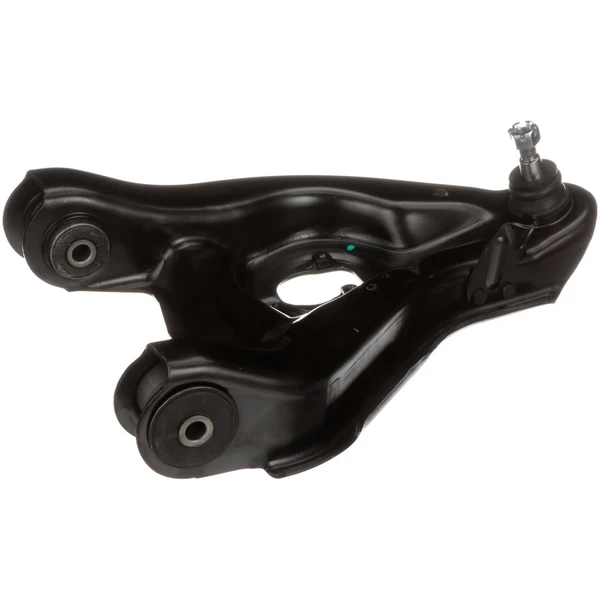

Control Arm and Ball Joint Assembly - Front Right Lower - Delphi TC5435

Part # TC5435
Item # 1001XY5V
$104.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Adjustable
No
Ball Joint Mounting Type
Press In
Ball Joint Stud Length (in)
3.386
Ball Joint Stud Length (mm)
86.00
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.630
Ball Joint Thread Diameter (mm)
16.00
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Black
Control Arm Construction
Stamped
Control Arm Material
Steel
Control Arm Maximum Length (in)
20.669
Control Arm Maximum Length (mm)
525.00
Control Arm Maximum Width (in)
17.717
Control Arm Maximum Width (mm)
450.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Painted
Grade Type
Premium
Grease Fitting Included
Yes
Greaseable
Yes
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
0
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
16
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 8189 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
19416897Ā - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
15665555Ā - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
JTC2399Ā - TRW STEERING AND SUSPENSION PARTS, TRW
TC5435Ā - DELPHI
CK620298Ā - MOOG CHASSIS PRODUCTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (19)vehicles
All
Chevrolet
GMC
1988 - 1999ChevroletC1500
1988 - 2000ChevroletC2500
1988 - 2000ChevroletC3500
1992 - 1999ChevroletC1500 Suburban
1992 - 1999ChevroletC2500 Suburban
1995 - 1999ChevroletTahoe
1996 - 2002ChevroletExpress 1500
1996 - 2002ChevroletExpress 2500
1996 - 2002ChevroletExpress 3500
2000 - 2000ChevroletTahoe
1988 - 1999GMCC1500
1988 - 2000GMCC2500
1988 - 2000GMCC3500
1992 - 1999GMCC1500 Suburban
1992 - 1999GMCC2500 Suburban
1995 - 1999GMCYukon
1996 - 2002GMCSavana 1500
1996 - 2002GMCSavana 2500
1996 - 2002GMCSavana 3500
