Delphi

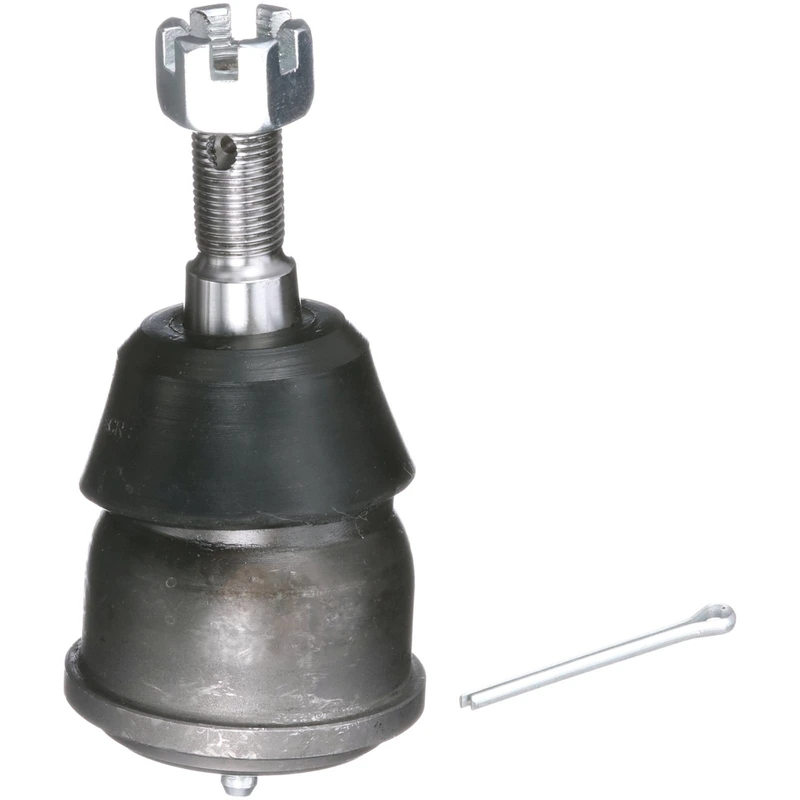

Ball Joint - Front Lower - Delphi TC5404

Part # TC5404
Item # 1001VGHC
$36.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Lower
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Lower
Material
Steel
Color
Black
Adjustable
No
Ball Joint Assembly
Yes
Bushings Included
No
Castle Nut Included
No
Cotter Pin Hole
No
Cotter Pin Included
No
Distance Between Mounting Holes (mm)
54.00
Dust Boot Included
Yes
Dust Boot Material
Rubber
Height (in)
3.583
Height (mm)
91.00
Mount Plate Included
No
Mounting Bolt Head Diameter (in)
0.669
Mounting Bolt Head Diameter (mm)
17.00
Mounting Bolt Length (in)
1.437
Mounting Bolt Length (mm)
36.50
Mounting Bolt Shank Diameter (in)
0.394
Mounting Bolt Shank Diameter (mm)
10.00
Mounting Bolt Thread Diameter (in)
0.390
Mounting Bolt Thread Diameter (mm)
10.00
Mounting Bolt Thread Length (in)
1.181
Mounting Bolt Thread Length (mm)
30.00
Mounting Bolt Thread Pitch (mm)
1.25
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
3
Nuts Included
Yes
Stud Tapered End 1 Diameter (in)
0.711
Stud Tapered End 1 Diameter (mm)
18.05
Stud Tapered End 2 Diameter (in)
0.858
Stud Tapered End 2 Diameter (mm)
21.8
Stud Thread Diameter (in)
0.551
Stud Thread Diameter (mm)
14
Stud Thread Length (in)
1.142
Stud Thread Length (mm)
29
Stud Thread Pitch (mm)
1.5
Tapered Stud
Yes
Type
Ball Joint
Washers Included
No
Width (mm)
71
Wrench Size
17mm
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5323 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K8197, K-8197 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS, SYD
K8212, K-8212 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, PRECISION CHASSIS, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS, SYD
D3AZ3078A, D3AZ-3078A - MERCURY, EDSEL, LINCOLN, FORD
D7AZ3079A, D7AZ-3079A - MERCURY, LINCOLN, FORD
D7AZ3078A, D7AZ-3078A - MERCURY, LINCOLN, FORD
D3AZ3079A, D3AZ-3079A - MERCURY, LINCOLN, FORD
536473, 536-473 - MAS INDUSTRIES, DORMAN
JBJ867 - TRW STEERING AND SUSPENSION PARTS, TRW
TC5404 - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (26)vehicles
All
Ford
Lincoln
Mercury
1958 - 1979FordThunderbird
1959 - 1967FordGalaxie
1962 - 1974FordGalaxie 500
1964 - 1977FordCustom 500
1965 - 1972FordCustom
1965 - 1974FordCountry Sedan
1965 - 1974FordCountry Squire
1965 - 1974FordRanch Wagon
1965 - 1978FordLTD
1972 - 1972FordRanchero
1972 - 1972FordTorino
1972 - 1976FordGran Torino
1973 - 1976FordTorino
1973 - 1979FordRanchero
1975 - 1976FordElite
1977 - 1979FordLTD II
1968 - 1971LincolnMark III
1970 - 1979LincolnContinental
1972 - 1976LincolnMark IV
1977 - 1979LincolnMark V
