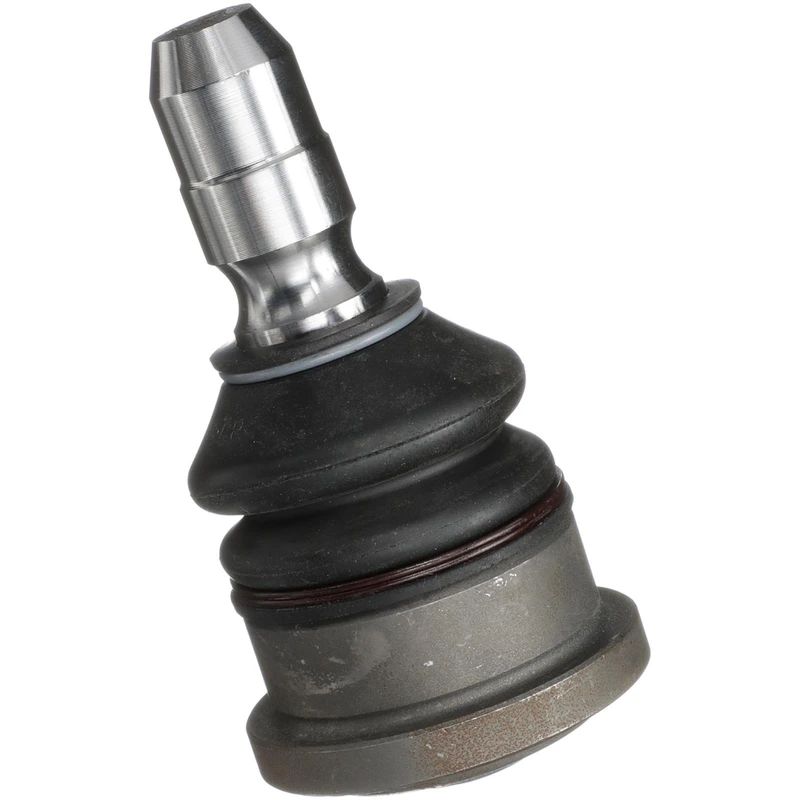

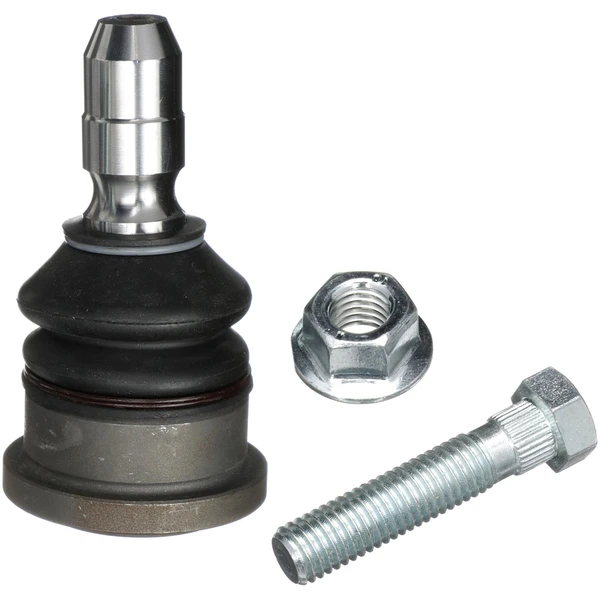

Ball Joint - Rear Upper - Delphi TC5359
Part # TC5359
Item # 1001VH73
$33.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Rear Upper
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Rear Upper
- Material
- Steel
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 2.961
- Height (mm)
- 75.20
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 1.047
- Mounting Bolt Head Diameter (mm)
- 26.60
- Mounting Bolt Length (in)
- 2.815
- Mounting Bolt Length (mm)
- 71.50
- Mounting Bolt Shank Diameter (in)
- 0.472
- Mounting Bolt Shank Diameter (mm)
- 12.00
- Mounting Bolt Thread Diameter (in)
- 0.470
- Mounting Bolt Thread Diameter (mm)
- 12.00
- Mounting Bolt Thread Length (in)
- 1.319
- Mounting Bolt Thread Length (mm)
- 33.50
- Mounting Bolt Thread Pitch (mm)
- 1.75
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 0
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Thread Diameter (in)
- 0.77
- Stud Thread Diameter (mm)
- 19.5
- Tapered Stud
- No
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 49.8
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5281 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5281 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K500109 - MOOG CHASSIS PRODUCTS, QUICKSTEER, PARTS MASTER, FIRESTONE, XRF
K500169 - MOOG CHASSIS PRODUCTS, QUICKSTEER, PRECISION CHASSIS
1L2Z5500AC, 1L2Z 5500-AC - MERCURY, LINCOLN, FORD
JBJ503 - TRW STEERING AND SUSPENSION PARTS, TRW
521381, 521-381 - DORMAN
TC5359 - DELPHI
CK620668 - MOOG CHASSIS PRODUCTS
CMS40126 - MEVOTECH
CB85507PR - MAS INDUSTRIES
523677, 523-677 - DORMAN
RK620668 - MOOG CHASSIS PRODUCTS
CB85507 - MAS INDUSTRIES
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Ford
Lincoln
Mercury
| 2002 - 2005 | Ford | Explorer |
| 2003 - 2005 | Lincoln | Aviator |
| 2002 - 2005 | Mercury | Mountaineer |
