Delphi

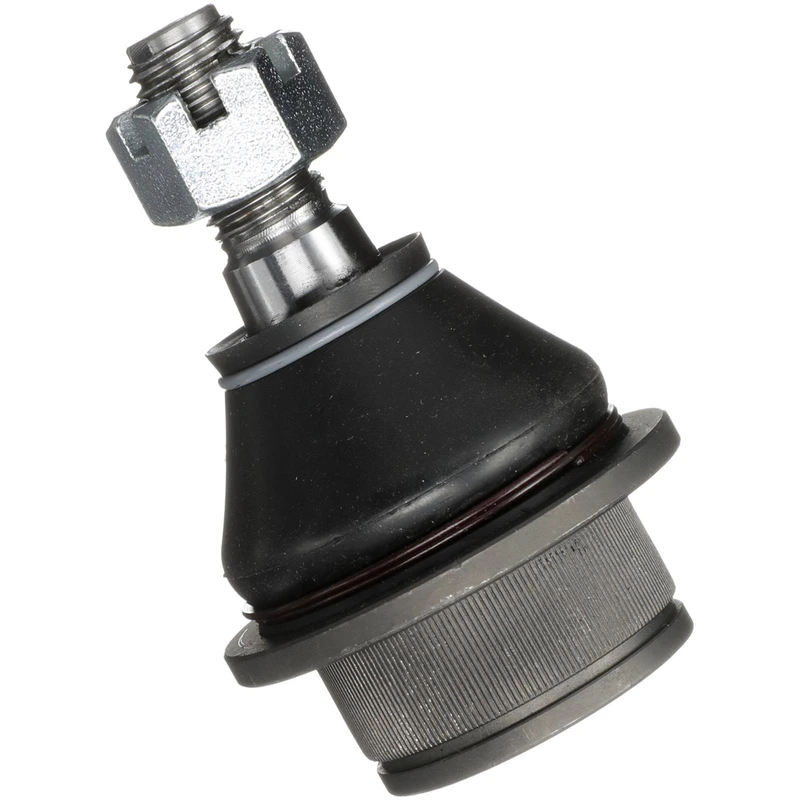

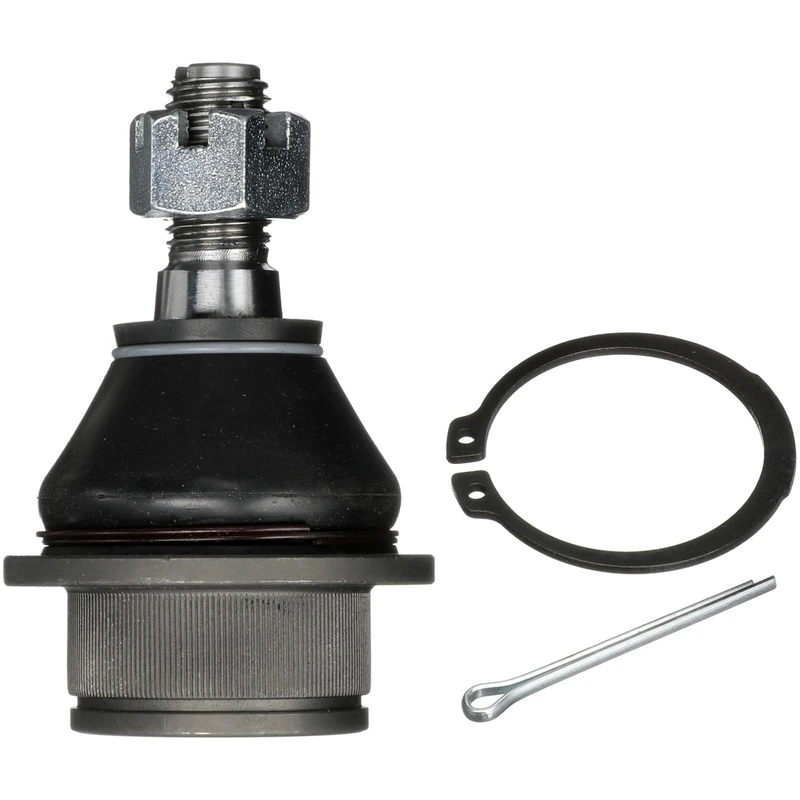

Ball Joint - Rear Side - Delphi TC5293

Part # TC5293
Item # 1001VCE3
$38.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
One Set
Installation Position
Rear Side
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
One Set
Installation Position
Rear Side
Material
Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Color
Gray
Adjustable
No
Ball Joint Assembly
No
Bushings Included
No
Castle Nut Included
Yes
Cotter Pin Hole
Yes
Cotter Pin Included
Yes
Dust Boot Included
Yes
Dust Boot Material
Rubber
Grease Fitting Included
No
Height (in)
3.701
Height (mm)
94.00
Maximum Outside Diameter (in)
1.909
Maximum Outside Diameter (mm)
48.49
Mount Plate Included
No
Mounting Hardware Included
Yes
Mounting Hole Quantity
0
Mounting Type
Press-In
Nuts Included
Yes
Stud Tapered End 1 Diameter (in)
0.488
Stud Tapered End 1 Diameter (mm)
12.4
Stud Tapered End 2 Diameter (in)
0.661
Stud Tapered End 2 Diameter (mm)
16.8
Stud Thread Diameter (in)
0.47
Stud Thread Diameter (mm)
12
Stud Thread Length (in)
0.764
Stud Thread Length (mm)
19.4
Stud Thread Pitch (mm)
1.75
Tapered Stud
Yes
Type
Ball Joint
Washers Included
No
Width (mm)
48.5
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
ā— With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
ā— Delphi also offers over 60 years of expertise as a leading player in diesel applications.
ā— Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
ā— Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5268 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
JBJ489Ā - TRW STEERING AND SUSPENSION PARTS, TRW
7L1Z3050A, 7L1Z 3050-AĀ - LINCOLN, FORD
TC5293Ā - DELPHI

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (24)vehicles
All
Ford
Lincoln
2007 - 2010FordExpedition
2007 - 2010FordExpedition
2007 - 2014FordExpedition
2007 - 2014FordExpedition
2007 - 2014FordExpedition
2007 - 2014FordExpedition
2008 - 2008FordExpedition
2008 - 2014FordExpedition
2008 - 2014FordExpedition
2011 - 2014FordExpedition
2011 - 2014FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
2015 - 2015FordExpedition
