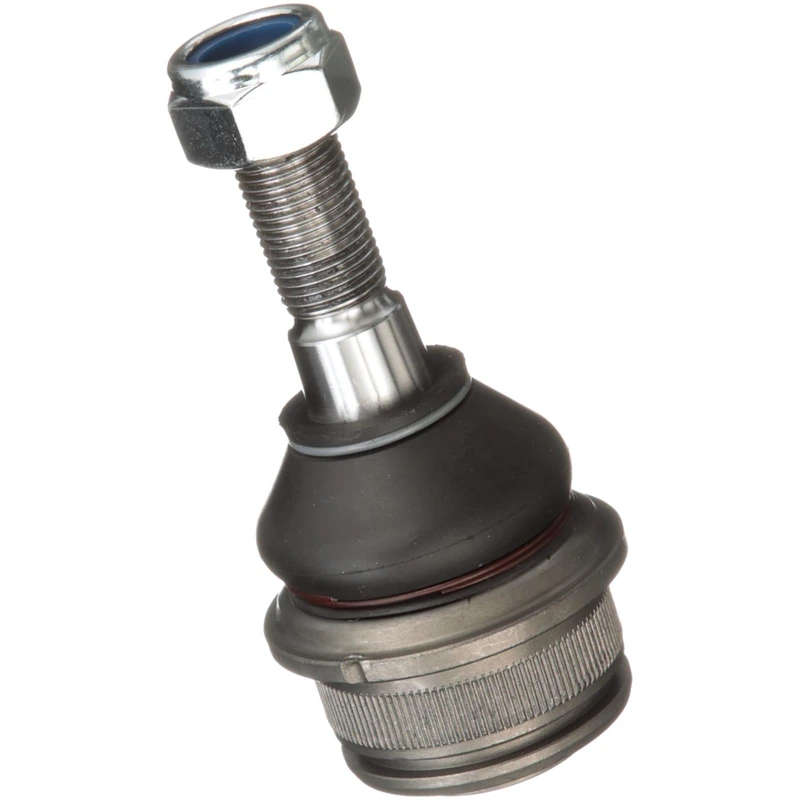

Ball Joint - Front Upper - Delphi TC526
Part # TC526
Item # 1001VCEY
$27.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Upper
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Upper
- Material
- Steel
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Distance Between Mounting Holes (mm)
- 70.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 3.898
- Height (mm)
- 99.00
- Length (in)
- 3.460
- Length (mm)
- 88.00
- Maximum Outside Diameter (in)
- 1.752
- Maximum Outside Diameter (mm)
- 44.50
- Mount Plate Included
- No
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 2
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.726
- Stud Tapered End 1 Diameter (mm)
- 18.45
- Stud Tapered End 2 Diameter (in)
- 0.874
- Stud Tapered End 2 Diameter (mm)
- 22.2
- Stud Thread Diameter (in)
- 0.551
- Stud Thread Diameter (mm)
- 14
- Stud Thread Length (in)
- 0.984
- Stud Thread Length (mm)
- 25
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 51.2
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5245 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5245 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
701407187, 701 407 187 - SEAT, AUDI, VOLKSWAGEN
701407187A, 701 407 187 A, 701 407 187A - AUDI, VOLKSWAGEN
701407187B, 701 407 187 B - AUDI, VOLKSWAGEN
FA2143 - DURALAST, MCQUAYNORRIS
B9915 - MAS INDUSTRIES, DORMAN
K500097 - MOOG CHASSIS PRODUCTS, QUICKSTEER
MK9915 - MEVOTECH
TC526 - DELPHI
JBJ268 - TRW
5001095, 500-1095, 50-01095 - RAYBESTOS CHASSIS
BJ06086 - IMPORT DIRECT
101-4305
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Volkswagen
| 1993 - 1997 | Volkswagen | EuroVan |
| 1999 - 2003 | Volkswagen | EuroVan |
