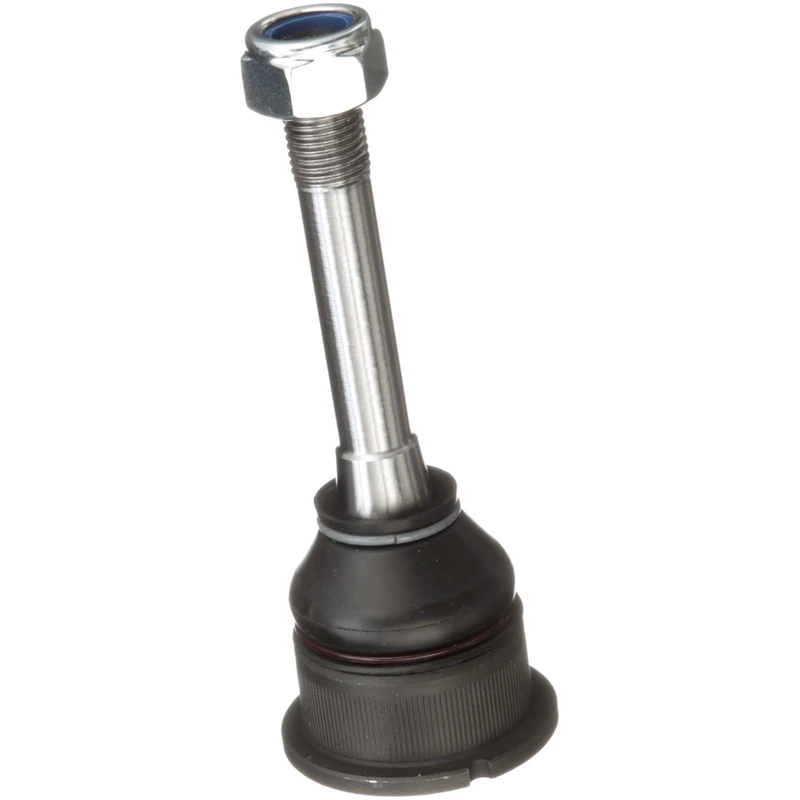

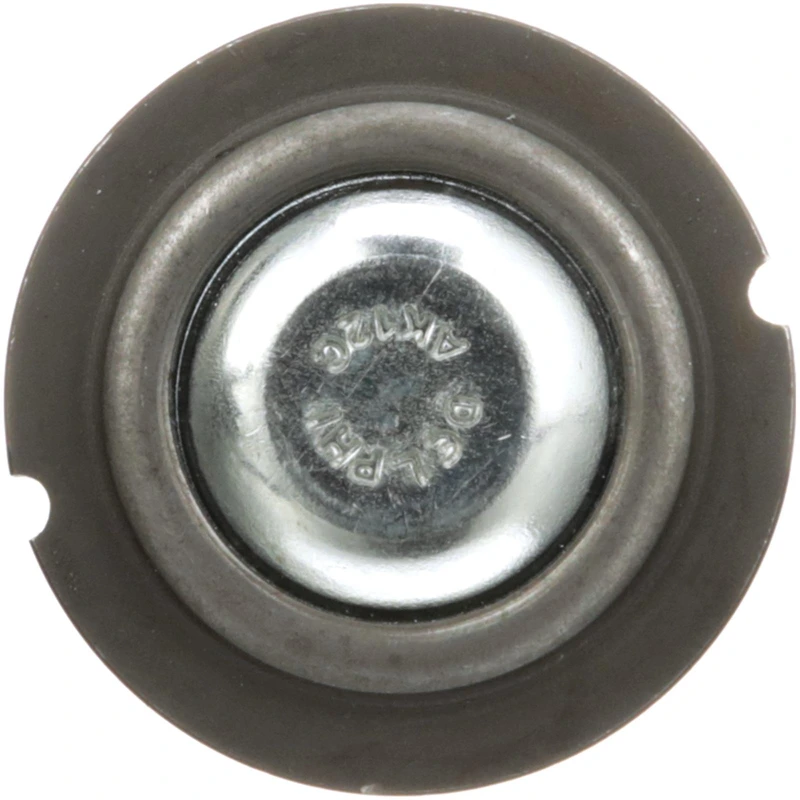

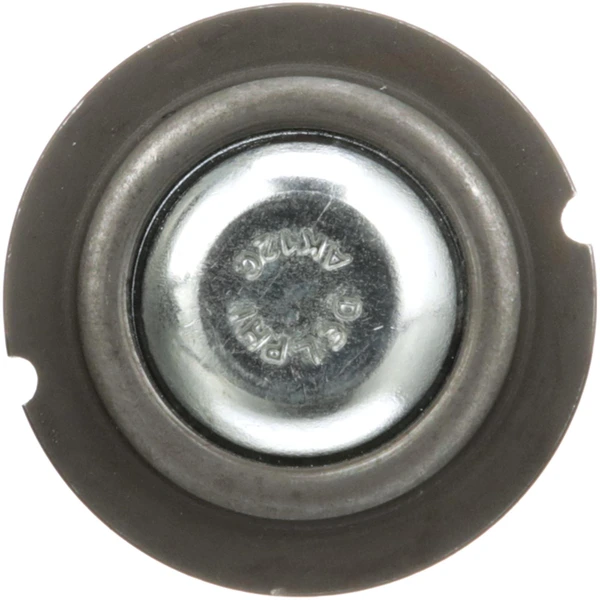

Ball Joint - Front Lower Inner - Delphi TC508
Part # TC508
Item # 1001VCT0
$24.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- 1
- Installation Position
- Front Lower Inner
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Lower Inner
- Material
- Steel
- Color
- Gray
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 5.366
- Height (mm)
- 136.30
- Length (in)
- 1.970
- Length (mm)
- 50.00
- Maximum Outside Diameter (in)
- 1.969
- Maximum Outside Diameter (mm)
- 50.00
- Mount Plate Included
- No
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 0
- Mounting Type
- Press-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.587
- Stud Tapered End 1 Diameter (mm)
- 14.9
- Stud Tapered End 2 Diameter (in)
- 0.72
- Stud Tapered End 2 Diameter (mm)
- 18.3
- Stud Thread Diameter (in)
- 0.551
- Stud Thread Diameter (mm)
- 14
- Stud Thread Length (in)
- 0.984
- Stud Thread Length (mm)
- 25
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- No
- Width (mm)
- 50
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5200 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5200 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K9917 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, XRF
31121139131, 31 12 1 139 131, 31-12-1-139-131, 3112 1139 131 - URO PARTS, BMW, SYD
BJ12045 - MAS INDUSTRIES, DORMAN
B9917 - MAS INDUSTRIES, DORMAN
JBJ121 - TRW STEERING AND SUSPENSION PARTS, TRW
BJ14000 - MAS INDUSTRIES, DORMAN
TC508 - DELPHI
BJ07046 - IMPORT DIRECT
MK9917 - MEVOTECH
BJ14034 - IMPORT DIRECT
BJ06123 - IMPORT DIRECT
101-5114
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
BMW
| 1992 - 1995 | BMW | 325is |
| 1992 - 1998 | BMW | 318i |
| 1992 - 1999 | BMW | 318is |
| 1994 - 1995 | BMW | 325i |
| 1995 - 1999 | BMW | 318ti |
| 1996 - 1998 | BMW | 328i |
| 1996 - 2002 | BMW | Z3 |
