Delphi

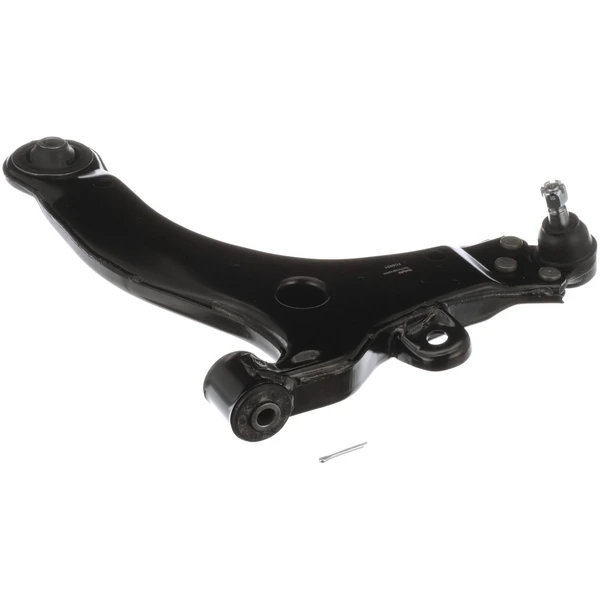

Control Arm and Ball Joint Assembly - Front Right Lower - Delphi TC5021

Part # TC5021
Item # 1001XXGV
$77.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Right Lower
Ball Joint Included
Yes
Adjustable
No
Ball Joint Mounting Type
Welded
Ball Joint Stud Length (in)
3.071
Ball Joint Stud Length (mm)
78.00
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.472
Ball Joint Thread Diameter (mm)
12.00
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Black
Control Arm Construction
Stamped
Control Arm Material
Steel
Control Arm Maximum Length (in)
18.071
Control Arm Maximum Length (mm)
459.00
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Painted
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
3
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
12
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 8095 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
10328906 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, GMC, CHEVROLET
22947665 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, CHEVROLET
20977508 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
22947663 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, SATURN, BUICK, CHEVROLET
15293664 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK, GMC, CHEVROLET
JTC2655 - TRW STEERING AND SUSPENSION PARTS, TRW
JTC1494 - TRW STEERING AND SUSPENSION PARTS, TRW
CK620676 - MOOG CHASSIS PRODUCTS
TC5021 - DELPHI
RK620676 - MOOG CHASSIS PRODUCTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (21)vehicles
All
Buick
Chevrolet
Pontiac
2005 - 2007BuickAllure
2005 - 2009BuickLaCrosse
2008 - 2009BuickAllure
2000 - 2005ChevroletImpala
2000 - 2007ChevroletMonte Carlo
2006 - 2007ChevroletImpala
2006 - 2009ChevroletImpala
2006 - 2009ChevroletImpala
2006 - 2011ChevroletImpala
2008 - 2008ChevroletImpala
2008 - 2008ChevroletImpala
2009 - 2011ChevroletImpala
2010 - 2011ChevroletImpala
2012 - 2013ChevroletImpala
2012 - 2013ChevroletImpala
2012 - 2013ChevroletImpala
2014 - 2016ChevroletImpala Limited
2014 - 2016ChevroletImpala Limited
2014 - 2016ChevroletImpala Limited
2004 - 2004PontiacGrand Prix
