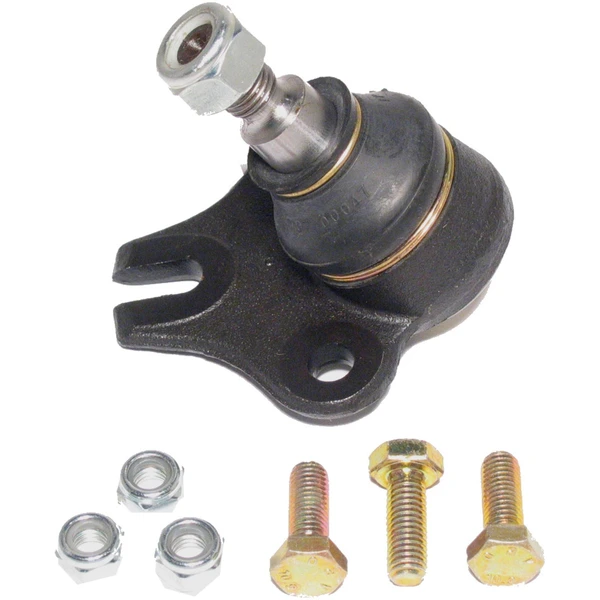

Ball Joint - Front Lower - Delphi TC438
Part # TC438
Item # 1001VES1
$28.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Lower
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Lower
- Material
- Steel
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushing Quantity
- 0
- Bushings Included
- No
- Castle Nut Included
- No
- Cotter Pin Hole
- No
- Cotter Pin Included
- No
- Distance Between Mounting Holes (mm)
- 58.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- No
- Greaseable
- No
- Height (in)
- 3.071
- Height (mm)
- 78.00
- Length (in)
- 3.190
- Length (mm)
- 81.00
- Maximum Outside Diameter (in)
- 3.150
- Maximum Outside Diameter (mm)
- 80.00
- Mount Plate Included
- Yes
- Mounting Bolt Head Diameter (in)
- 0.591
- Mounting Bolt Head Diameter (mm)
- 15.00
- Mounting Bolt Length (in)
- 1.193
- Mounting Bolt Length (mm)
- 30.30
- Mounting Bolt Shank Diameter (in)
- 0.335
- Mounting Bolt Shank Diameter (mm)
- 8.50
- Mounting Bolt Thread Length (in)
- 0.984
- Mounting Bolt Thread Length (mm)
- 25.00
- Mounting Bolt Thread Pitch (mm)
- 1.25
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 3
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.724
- Stud Tapered End 1 Diameter (mm)
- 18.4
- Stud Tapered End 2 Diameter (in)
- 0.646
- Stud Tapered End 2 Diameter (mm)
- 16.4
- Stud Thread Length (in)
- 0.768
- Stud Thread Length (mm)
- 19.5
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Premium
- Washers Included
- Yes
- Width (mm)
- 80
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5149 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5149 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K9913 - FALCON AUTOMOTIVE, MOOG CHASSIS PRODUCTS, QUICKSTEER, MASTERPRO CHASSIS, XRF
1H0407365, 1H0-407-365, 1H0 407 365 - SEAT, AUDI, VOLKSWAGEN, SYD
BJ43353XL - MAS INDUSTRIES, DORMAN
B90355 - MAS INDUSTRIES, DORMAN
B9913 - MAS INDUSTRIES, DORMAN
JBJ237 - TRW STEERING AND SUSPENSION PARTS, TRW
MK9913 - MEVOTECH
TC438 - DELPHI
BJ06122 - IMPORT DIRECT
VWF207, VW-F207 - DEEZA
101-4283
101-4784
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Volkswagen
| 1992 - 1992 | Volkswagen | Corrado |
| 1993 - 1995 | Volkswagen | Corrado |
| 1993 - 1997 | Volkswagen | Passat |
| 1994 - 1999 | Volkswagen | Jetta |
| 1995 - 1999 | Volkswagen | Golf |
