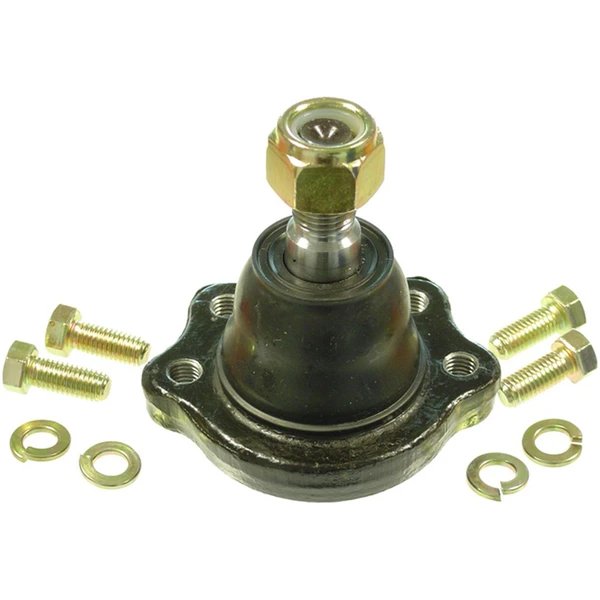

Ball Joint - Front Upper - Delphi TC393
Part # TC393
Item # 1001VHLH
$36.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Quantity
- One Set
- Installation Position
- Front Upper
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- Front Upper
- Material
- Steel
- Color
- Black
- Adjustable
- No
- Ball Joint Assembly
- Yes
- Bushings Included
- No
- Castle Nut Included
- Yes
- Cotter Pin Hole
- Yes
- Cotter Pin Included
- Yes
- Distance Between Mounting Holes (mm)
- 64.00
- Dust Boot Included
- Yes
- Dust Boot Material
- Rubber
- Grease Fitting Included
- Yes
- Height (in)
- 4.394
- Height (mm)
- 111.60
- Length (in)
- 3.310
- Length (mm)
- 84.00
- Maximum Outside Diameter (in)
- 3.307
- Maximum Outside Diameter (mm)
- 84.00
- Mount Plate Included
- No
- Mounting Bolt Head Diameter (in)
- 0.591
- Mounting Bolt Head Diameter (mm)
- 15.00
- Mounting Bolt Length (in)
- 1.142
- Mounting Bolt Length (mm)
- 29.00
- Mounting Bolt Shank Diameter (in)
- 0.315
- Mounting Bolt Shank Diameter (mm)
- 8.00
- Mounting Bolt Thread Diameter (in)
- 0.310
- Mounting Bolt Thread Diameter (mm)
- 8.00
- Mounting Bolt Thread Length (in)
- 0.906
- Mounting Bolt Thread Length (mm)
- 23.00
- Mounting Bolt Thread Pitch (mm)
- 1.25
- Mounting Bolts Included
- Yes
- Mounting Hardware Included
- Yes
- Mounting Hole Quantity
- 4
- Mounting Type
- Bolt-In
- Nuts Included
- Yes
- Stud Tapered End 1 Diameter (in)
- 0.63
- Stud Tapered End 1 Diameter (mm)
- 16
- Stud Tapered End 2 Diameter (in)
- 0.709
- Stud Tapered End 2 Diameter (mm)
- 18
- Stud Thread Diameter (in)
- 0.551
- Stud Thread Diameter (mm)
- 14
- Stud Thread Length (in)
- 0.965
- Stud Thread Length (mm)
- 24.5
- Stud Thread Pitch (mm)
- 1.5
- Stud Type
- Threaded
- Suspension Grade Type
- Standard
- Tapered Stud
- Yes
- Type
- Ball Joint
- Washers Included
- Yes
- Width (mm)
- 84
- Wrench Size
- 13mm
Show all
Features
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5144 patents exclusively related to fuel module and pump design.
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 5144 patents exclusively related to fuel module and pump design.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
K9022 - MOOG CHASSIS PRODUCTS, QUICKSTEER, PARTS MASTER, FIRESTONE, XRF, FALCON STEERING SYSTEMS
40110B9500, 40110-B9500 - OEM PART NUMBER, NISSAN, SYD
D011001G25 - FORD, NISSAN
B9022 - MAS INDUSTRIES, DORMAN
40110V0100, 40110-V0100 - OEM PART NUMBER, NISSAN
JBJ369 - TRW STEERING AND SUSPENSION PARTS, TRW
BJ69066 - MAS INDUSTRIES, DORMAN
40110T6025, 40110-T6025 - OEM PART NUMBER, NISSAN
1954430 - FORD, NISSAN
40110T6000, 40110-T6000 - OEM PART NUMBER, NISSAN
4011001G25, 40110-01G25 - OEM PART NUMBER, NISSAN
5001045, 500-1045 - RAYBESTOS BRAKES, RAYBESTOS CHASSIS
BJ06013 - IMPORT DIRECT, IMPORT DIRECT CHASSIS
4011001G00, 40110-01G00 - OEM PART NUMBER, NISSAN
40110T3060, 40110-T3060 - OEM PART NUMBER, NISSAN
FA1227 - DURALAST, MCQUAYNORRIS
TC393 - DELPHI
MS30141 - MEVOTECH
NIF203, NI-F203 - DEEZA
MK9022 - MEVOTECH
4011001G26, 40110-01G26 - NISSAN
401100F000, 40110-0F000 - NISSAN
40110-F1700
40110-E0100
101-3416
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Nissan
| 1978 - 1979 | Nissan | 620 |
| 1980 - 1986 | Nissan | 720 |
| 1986 - 1994 | Nissan | D21 |
| 1987 - 1995 | Nissan | Pathfinder |
| 1995 - 1997 | Nissan | Pickup |
