Delphi

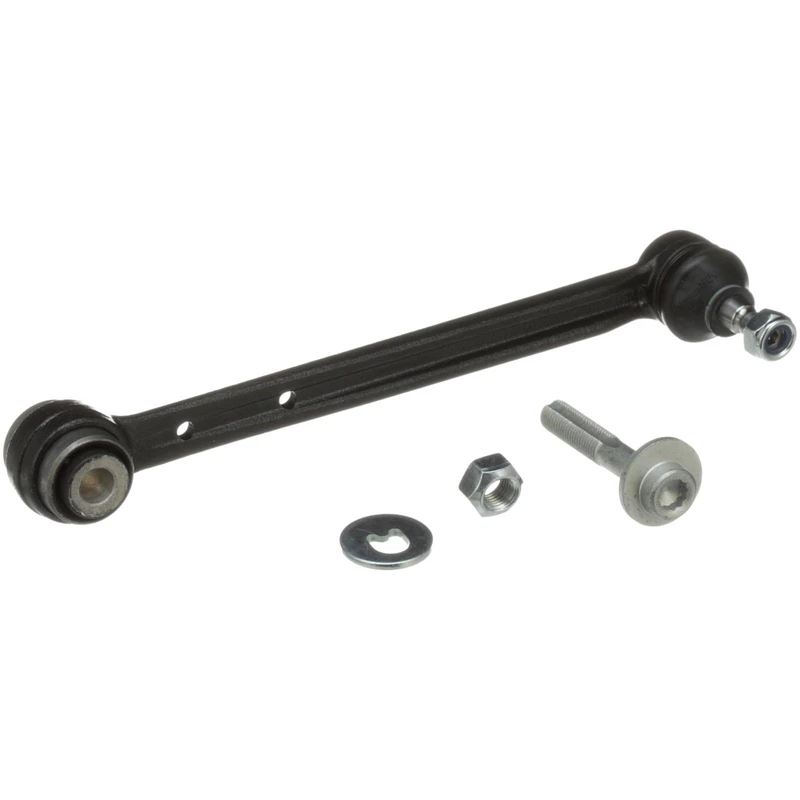

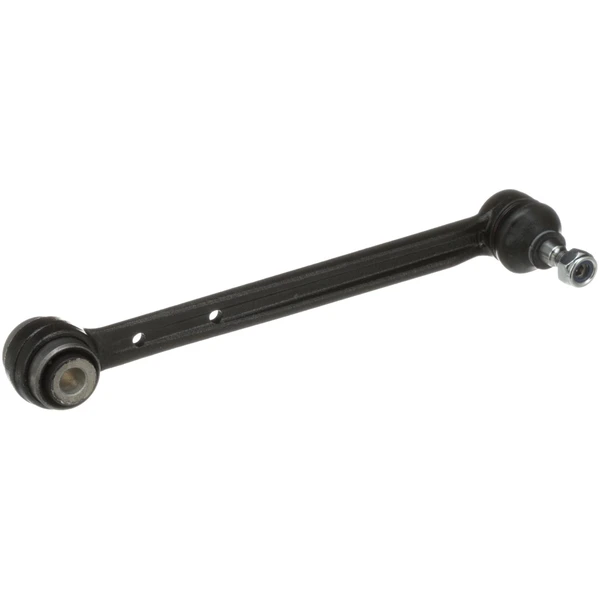

Control Arm and Ball Joint Assembly - Rear Lower - Delphi TC389

Part # TC389
Item # 1001XUDA
$45.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Quantity
1
Installation Position
Rear Lower
Ball Joint Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Lower
Ball Joint Included
Yes
Adjustable
No
Ball Joint Stud Length (in)
0.661
Ball Joint Stud Length (mm)
16.79
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter (in)
0.394
Ball Joint Thread Diameter (mm)
10.00
Bearing Material
Plastic
Boot Color
Black
Boot Material
Choloroprene Rubber (CR)
Bushing Color
Black
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Black
Control Arm Construction
Casting/Forged
Control Arm Material
Steel
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Painted
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Diameter (in)
0.480
Mounting Hole Diameter (mm)
12.20
Mounting Hole Quantity
1
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
Thread Size
10
Type
Control Arm and Ball Joint Assembly
Show all
About this item
Delphi control arms are built with high-strength materials, featuring precision-engineered pivot points and finishes that resist corrosion, ensuring exceptional durability and seamless joint movement. Each Delphi control arm undergoes thorough crack detection and ultrasonic flaw testing to guarantee compliance with OE standards.
● With a rich original equipment (OE) heritage spanning over a century, Delphi has established itself as a top OE manufacturer in fuel technology.
● Delphi also offers over 60 years of expertise as a leading player in diesel applications.
● Delphi diesel systems provide high performance and are designed according to original equipment specifications, guaranteeing the fit, form, and function that technicians expect.
● Innovation is woven into the very fabric of Delphi's DNA. Delphi was the first to create an automotive radiator in 1911, followed by the first car heater in 1929 and the first vehicle air conditioner in 1954. Delphi boasts more than 30 proprietary innovations and 8066 patents exclusively related to fuel module and pump design.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
CB28510 - MAS INDUSTRIES, DORMAN
ES3327 - DURALAST, MOOG CHASSIS PRODUCTS
A2103500953, A210 350 0953, A 210 350 09 53 - MERCEDESBENZ
A2013502953, A201 350 2953 - MERCEDESBENZ
A2103502753, A210 350 2753 - MERCEDESBENZ
A2103500653, A210 350 0653 - MERCEDESBENZ
ER14012 - IMPORT DIRECT
RK620534 - MOOG CHASSIS PRODUCTS
2103502153, 210 350 21 53, 210-350-21-53 - MERCEDESBENZ
2013501853, 201 350 18 53 - MERCEDESBENZ
2103501853, 210 350 1853, 210 350 18 53 - MERCEDESBENZ
CK620534 - MOOG CHASSIS PRODUCTS
A2013503253, A201 350 3253, A 201 350 32 53 - MERCEDESBENZ
TC389 - DELPHI
K620534 - MOOG CHASSIS PRODUCTS
A1243500153, A 124 350 01 53, A124 350 0153 - MERCEDESBENZ
A2013501853, A201 350 1853 - MERCEDESBENZ
JTC923 - TRW
A2103501853, A210 350 1853, A 210 350 18 53 - MERCEDESBENZ
1243500153, 124 350 0153, 124 350 01 53, 124-350-01-53 - MERCEDESBENZ
2013503253, 201 350 3253, 201 350 32 53 - MERCEDESBENZ
MBH227, MB-H227 - DEEZA
2013502953, 201 350 2953 - MERCEDESBENZ
2103500653, 210 350 0653 - MERCEDESBENZ
2103502753, 210 350 2753 - MERCEDESBENZ
MS101019 - MEVOTECH
2103500953, 210-350-09-53, 210 350 09 53 - MERCEDESBENZ
A2103502153, A210 350 2153, A 210 350 21 53 - MERCEDESBENZ

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (30)vehicles
All
Mercedes-Benz
1984 - 1989Mercedes-Benz190D
1984 - 1989Mercedes-Benz190E
1986 - 1989Mercedes-Benz300E
1987 - 1989Mercedes-Benz260E
1988 - 1993Mercedes-Benz300TE
1990 - 1992Mercedes-Benz300E
1990 - 1993Mercedes-Benz300D
1991 - 1993Mercedes-Benz190E
1993 - 1993Mercedes-Benz300E
1994 - 1994Mercedes-BenzE500
1994 - 1995Mercedes-BenzE420
1994 - 1996Mercedes-BenzC220
1994 - 1997Mercedes-BenzSL320
1994 - 2000Mercedes-BenzC280
1994 - 2002Mercedes-BenzE320
1994 - 2002Mercedes-BenzSL500
1994 - 2002Mercedes-BenzSL600
1995 - 1997Mercedes-BenzC36 AMG
1995 - 1999Mercedes-BenzE300
1997 - 2000Mercedes-BenzC230
